SAIL-M12BW-12-1.0U
SAIL-M12BW-12-1.0U
Dimensioned drawing
Angled socket
SAIL-M12BW-12-1.0U
Pole scheme
Socket
SAIL-M12BW-12-1.0U
Wiring diagram
SAIL-M12BW-12-1.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-12-1.0U

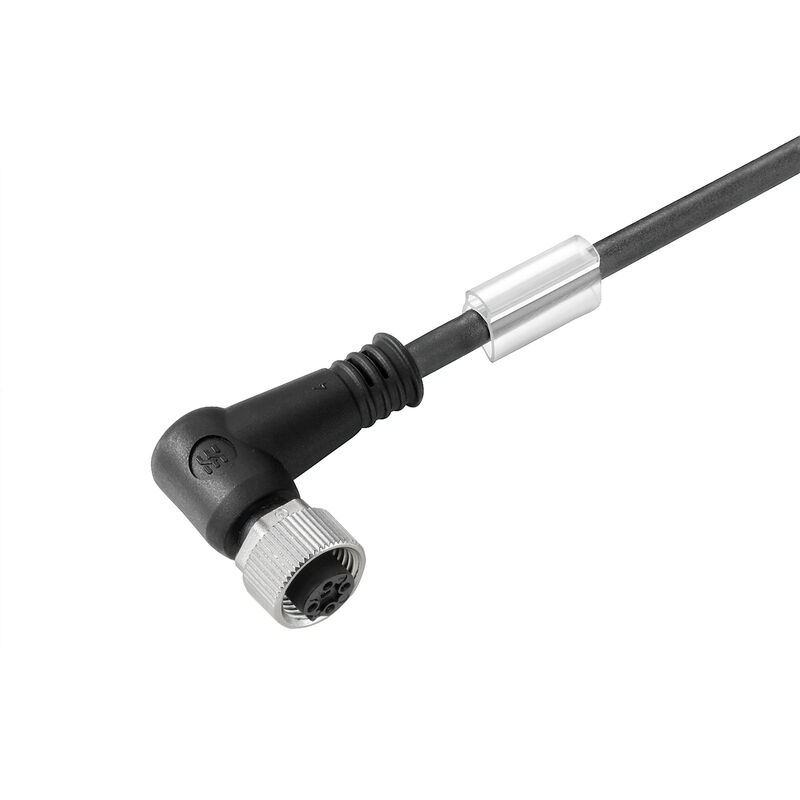

Sensor/actuator line, One end without connector, M12, Number of poles : 12, 1 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1898240100
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Agréments
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 12, 1 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1898240100
Type
SAIL-M12BW-12-1.0U
GTIN (EAN)
4050118591743
Qty.
1 items

Dimensions and weights

Net weight
31 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5 m/s²
Aderquerschnitt
0,14 mm²
Bending cycles
1 mill.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Colour coding
yellow
pink
red / blue
black
grey / pink
green
white
blue
violet
brown
red
grey
Configurable cable length
No
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Geschirmt
No
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Kabellänge
1 m
Mantelfarbe
black
Number of poles
12
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
5.6 mm ± 0.2 mm
Resistant to welding beads
No
Schleppkettentauglichkeit
Yes
Sheath material
PUR
Speed
5 m/s
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

AF size
13 mm
Codifica
A-coded
Csatlakozási menet
M12
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
1,5 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
IP65
IP66
Superficie dei contatti
Gold-plated
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 1.0 Nm
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
30 V
Rated current
2 A (8-pole) / 1.5 A (12-pole)

General standards

Zertifikat-Nr. (cULus)
E307231

Plug, left

Plug left
M12, A-coded, IP67, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
