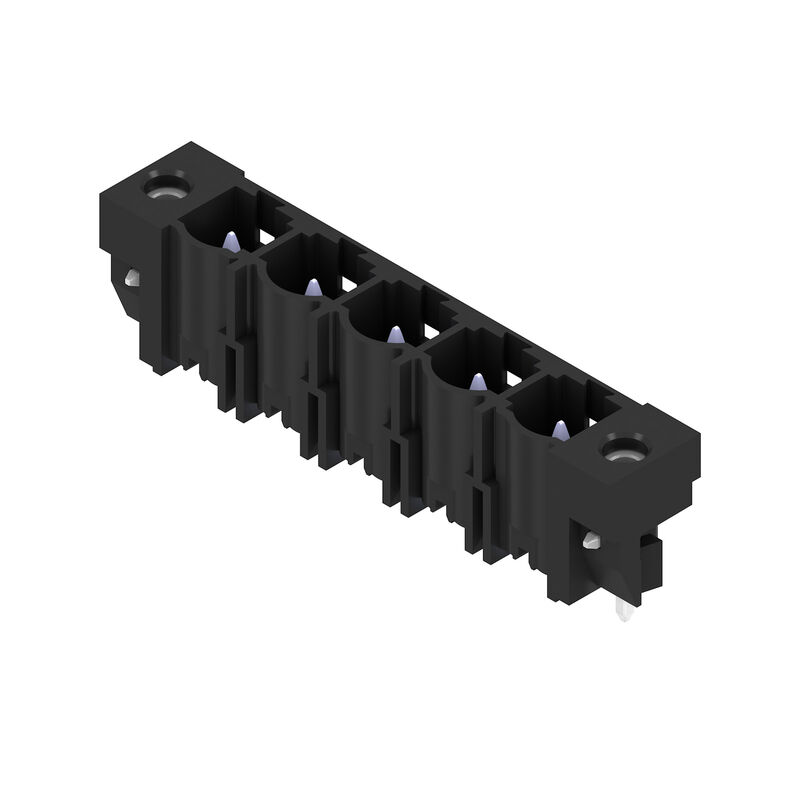

SL-SMT 7.62HP/05/180LF 2.1SN BK BX
Product image
SL-SMT 7.62HP/05/180LF 2.1SN BK BX
Product image

SL-SMT 7.62HP/05/180LF 2.1SN BK BX

Preliminary product data!

Dit product is nog niet beschikbaar.

NYÁK dugaszoló csatlakozó, tűs érintkezősor, Forrasztható peremes aljzat, THT-forrasztott csatlakozás, 7.62 mm, Pólusszám: 5, 180°, Forrasztótüske hossza (l): 2.1 mm, ónozott, fekete, Doboz

Product ID 3114390000
Gegevensblad downloaden Product Downloads
Is contradeel van 3 Verwante producten 5
Agréments Általános rendelési adatok Dimensions et poids Temperatures Conformité environnementale du produit Caractéristiques du système Données des matériaux Données nominales selon CEI Märkdata enligt CSA Rated data acc. to UL 1059 Emballage Nota importante Классификации

Agréments

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Általános rendelési adatok

Version
NYÁK dugaszoló csatlakozó, tűs érintkezősor, Forrasztható peremes aljzat, THT-forrasztott csatlakozás, 7.62 mm, Pólusszám: 5, 180°, Forrasztótüske hossza (l): 2.1 mm, ónozott, fekete, Doboz
Order No.
3114390000
Type
SL-SMT 7.62HP/05/180LF 2.1SN BK BX
GTIN (EAN)
4099987204200
Qty.
ST
Product data
IEC: 630 V / 29 A
UL: 300 V / 20 A
Packaging
Box

Dimensions et poids

Depth
8,4 mm
Mélység (coll)
0,331 inch
Height
13,9 mm
Wysokość (cale)
0,547 inch
Высота, мин.
11,8 mm
Width
46,96 mm
Byggbredd (tum)
1,849 inch
Net weight
3,5 g

Temperatures

Continuous operating temp., min.
-25 °C
Continuous operating temp., max.
100 °C

Conformité environnementale du produit

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
Nej mSvHC över 0,1 viktprocent

Caractéristiques du système

Product family
OMNIMATE Power - série BL/SL 7.62HP
Type of connection
보드 결선
Mounting onto the PCB
THT lödanslutning
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
180°
Number of poles
5
Number of solder pins per pole
1
Solder pin length (l)
2,1 mm
Solder pin dimensions
1.0 x 1.0 mm
Solder pin dimensions = d tolerance
+0,01 / -0,03 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
30,48 mm
L1 in inches
1,2 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP10
Can be coded
Yes
Tightening torque for screw flange, min.
0,15 Nm
Tightening torque for screw flange, max.
0,25 Nm
Plugging cycles
25

Données des matériaux

Insulating material
LCP GF
Colour
nero
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Données nominales selon CEI

testé selon la norme
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
29 A
Rated current, max. number of poles (Tu=20°C)
26 A
Rated current, min. number of poles (Tu=40°C)
25 A
Rated current, max. number of poles (Tu=40°C)
21 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
500 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 180 A
Clearance, min.
6,5 mm
Creepage distance, min.
8,1 mm

Märkdata enligt CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group C / CSA)
20 A
Rated current (Use group D / CSA)
5 A

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group C / UL 1059)
20 A
Rated current (Use group D / UL 1059)
5 A
Creepage distance, min.
11,2 mm
Luftstrecke, min.
6,5 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Emballage

Packaging
Boîte

Nota importante

IPC conformity
적합성:본 제품은 국제 공인 표준 및 기준에 따라 개발, 제조 및 납품되고, 해당 데이터 시트에 명시된 보증 특성을 준수하며 IPC-A-610 "Class 2"에 따른 디자인 특성을 충족합니다. 본 제품에 대한 추가 클레임은 요청 시 검토할 수 있습니다.
Notes

• Enligt IEC 61984 är OMNIMATE-anslutningar anslutningar utan brytförmåga (COC). I enlighet med avsedd användning får anslutningarna inte vara inkopplade eller urkopplade vid drift eller under last
• Långtidsförvaring av produkten med medeltemperatur 50° C och maximal luftfuktighet 70 %, 36 månader

Классификации

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
