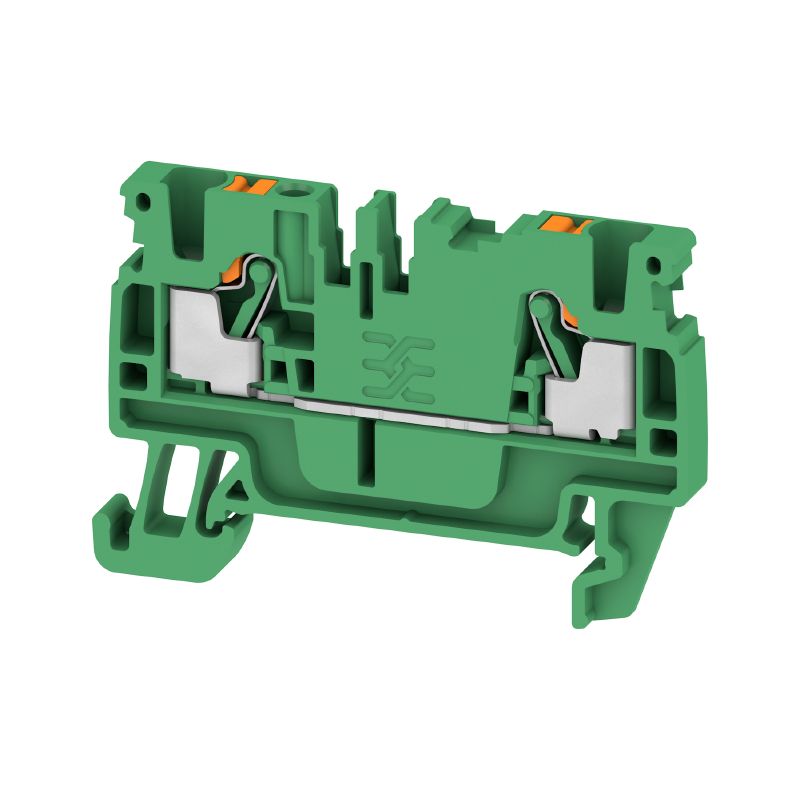

Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, green

Tuotteen tunnus 1521950000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 90 Samankaltaiset tuotteet 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Verze
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, green
Číslo objednávky
1521950000
Typ
A2C 2.5 GN
GTIN (EAN)
4050118328271
Qty.
100 items

Dimensions and weights

Hloubka
36,5 mm
Depth (inches)
1,437 inch
Depth including DIN rail
37 mm
Výška
55 mm
Height (inches)
2,165 inch
Šířka
5,1 mm
Width (inches)
0,201 inch
Net weight
6,4 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Okolní teplota
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
green
Colour of operational elements
orange
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
20 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
20 A
Wire cross section max. (IECEX)
2.5 mm²
Značení EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No

Conductors for clamping (additional connection)

Typ připojení, další připojení
PUSH IN

Conductors for clamping (rated connection)

Connection cross-section, finely stranded, min.
0,14 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Dimens. caña destornillador
0.6 x 3.5 mm
Gauge to IEC 60947-1
A3
Ledararea, fintrådig, min.
0,14 mm²
Número de conexiones
2
Sección de embornado, máx.
4 mm²
Sección de embornado, mín.
0,14 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/4, min.
0,14 mm²
Stripping length
10 mm
Tipo di collegamento
PUSH IN
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      0,75 mm²
Tube length for twin wire-end ferrule acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    0,75 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar acc. to cross-section
  • Cross-section, min.:
    0,14 mm²
  • Cross-section, max.:
    0,34 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    8 mm
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      0,14 mm²
    • max.:
      0,34 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
Tube length for wire-end ferrule without plastic collar acc. to cross-section
  • Cross-section, min.:
    0,25 mm²
  • Cross-section, max.:
    0,25 mm²
  • Tube length, min.:
    5 mm
  • Tube length, max.:
    5 mm
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    10 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    7 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      4 mm²
Twin wire-end ferrules, max.
0,75 mm²
Twin wire-end ferrules, min.
0,5 mm²
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel és műanyag gallérokkal DIN 46228/4, névleges csatlakozás, max.
2,5 mm²
Wire connection cross section AWG, max.
AWG 12
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²
Поперечное сечение подключаемого провода AWG, мин.
AWG 28
Сечение подключаемого проводника, тонкопроволочного, макс.
4 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/1 채용 가는 꼬임, 최대
4 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG

General

Nosná lišta
TS 35
Návod k instalaci
Rail
Průřez propojení AWG, max.
AWG 12
Průřez propojení AWG, min.
AWG 28
Standardy
IEC 60947-7-1

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
