BCZ 3.81 AH06 BK BX

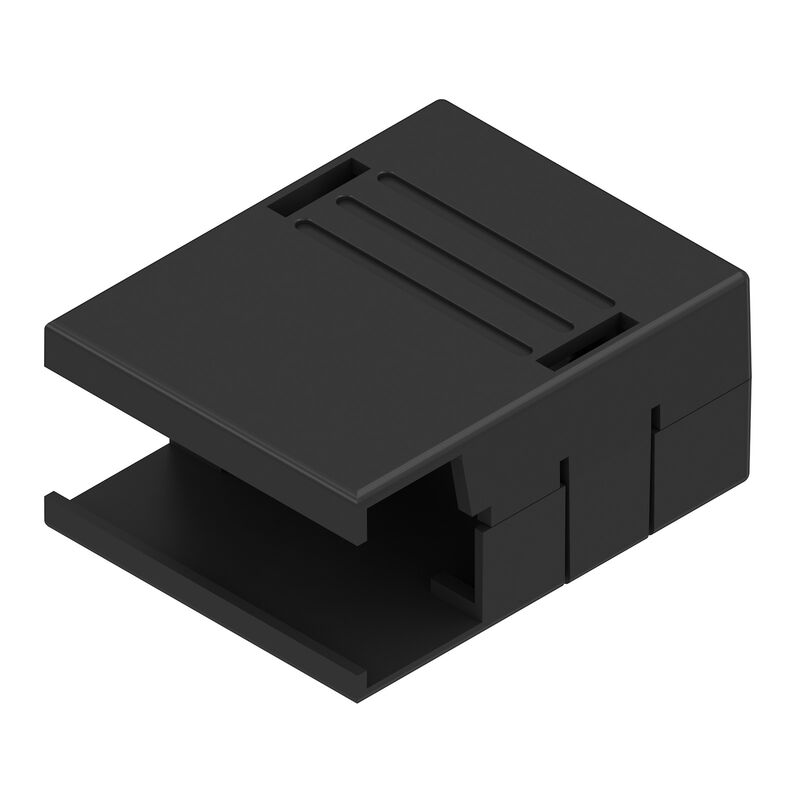

Product image
BCZ 3.81 AH06 BK BX

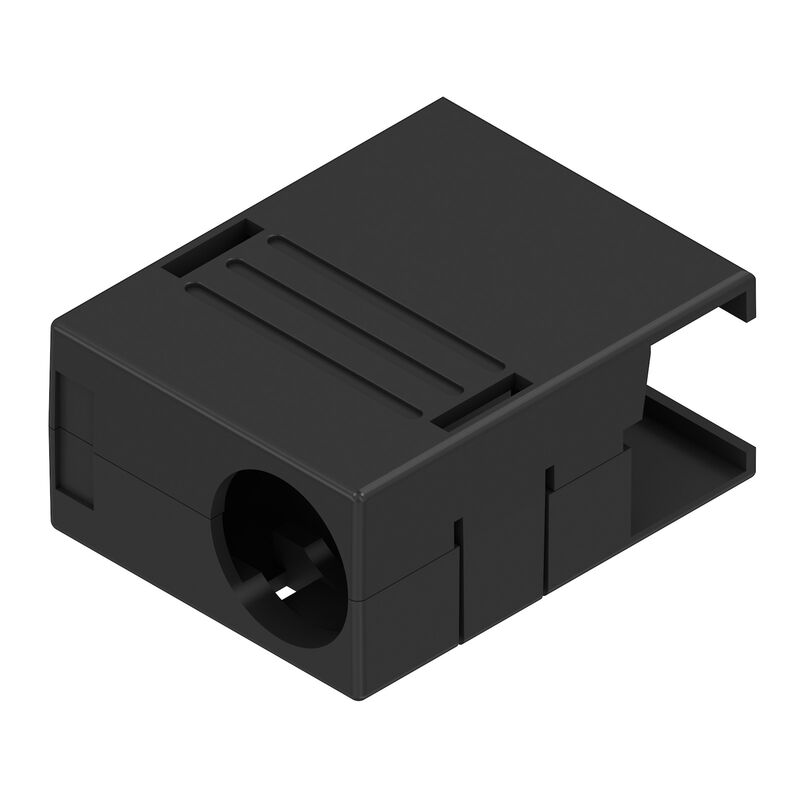

Product image
BCZ 3.81 AH06 BK BX
Example of use
BCZ 3.81 AH06 BK BX
Dimensional drawing

BCZ 3.81 AH06 BK BX

PCB plug-in connector, Accessories, Hood, black, Number of poles: 6

Produkt ID 1005310000
Download datablad Engineering Support Product Downloads
Er tilbehør til 10 Anvendte produkter 37
Approvals General ordering data Dimensioni e pesi Environmental Product Compliance System specifications Material data Rated data acc. to IEC Packing Wichtiger Hinweis Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, Accessories, Hood, black, Number of poles: 6
Order No.
1005310000
Type
BCZ 3.81 AH06 BK BX
GTIN (EAN)
4032248752539
Cantidad
10 Pieza
Valores característicos del producto

Packaging
Boîte

Dimensioni e pesi

Peso netto
2,816 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Pitch in mm (P)
3,81 mm
Paso en pulgadas (P)
0,15 "
Pólusszám
6
L1 w calach
0,15 "
Количество полюсных рядов
1
Tightening torque
  • Torque type:
    Cover screw
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Material data

Insulating material
PA 66 GF 30
Colour
černá
Colour chart (similar)
RAL 9011
UL 94 éghetőségi osztály
V-0
접점 재질
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
154 mm
VPE width
96 mm
VPE height
22 mm

Wichtiger Hinweis

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
