CABTITE EP B 24/12 GY
CABTITE EP B 24/12 GY

CABTITE EP B 24/12 GY

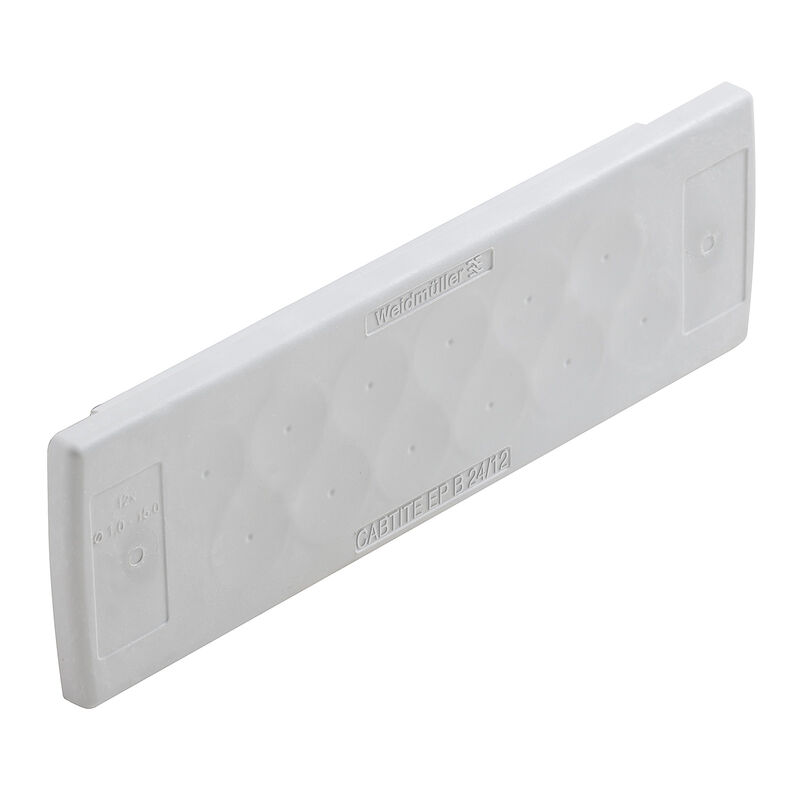

Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54

Produkt ID 2743630000
Download datablad Engineering Support Product Downloads
Tilbehør 1 Anvendte produkter 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Number of connectable cables Classifications

Approvals

Godkännanden
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr (cURus)
E223801

General ordering data

Version
Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54
Order No.
2743630000
유형
CABTITE EP B 24/12 GY
GTIN (EAN)
4064675123347
Qty.
10 Styk

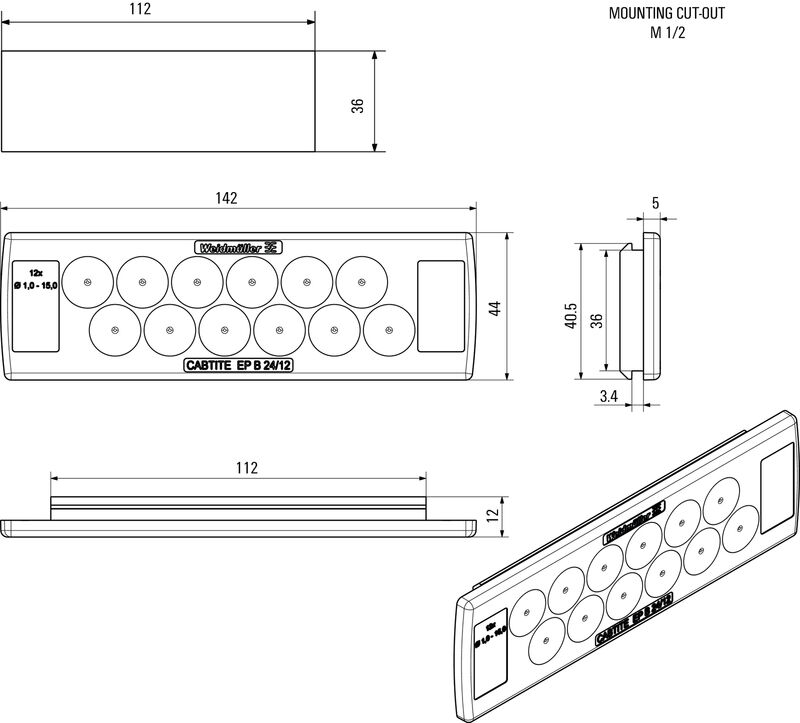

Dimensions and weights

Depth
12 mm
Depth (inches)
0,472 inch
Wysokość
44 mm
Height (inches)
1,732 inch
Szerokość
142 mm
Width (inches)
5,591 inch
Väggtjocklek, min.
2,5 mm
Wall thickness, max.
4 mm
Net weight
38,2 g

Temperatures

Temperatura eksploatacyjna
-40 °C...90 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
TPE
Brennbarkeitsklasse nach UL 94
V-0
Protection class (UL)
Type 1
Type 12
Silikone
No
Tipo de protección
IP54

Number of connectable cables

Type of mounting
Snap-on
Number of connectable cables
12
케이블 인입
  • Number:
    12
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    15 mm
  • Cable type:
    Round cable

Classifications

ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
