CH20M17 B BUS BK/OR 2010

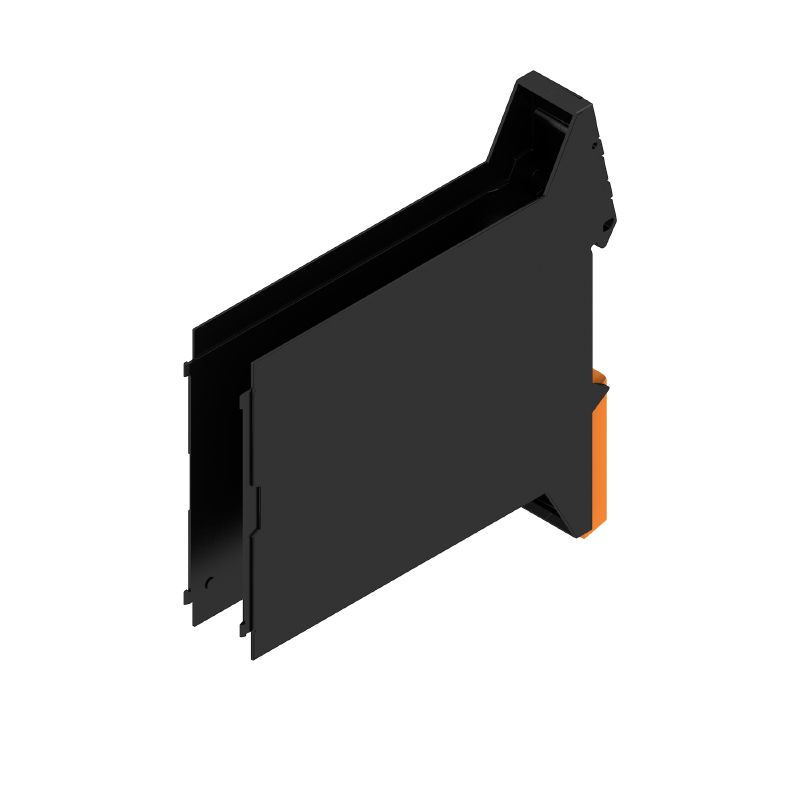

Product image
CH20M17 B BUS BK/OR 2010
Product image
CH20M17 B BUS BK/OR 2010
Product benefits
Base element including BUS cut-out
CH20M17 B BUS BK/OR 2010
Dimensioned drawing

CH20M17 B BUS BK/OR 2010

Modular housing, OMNIMATE Housing - series CH20M black, Base element, Recess in detent foot area for BUS contact, Width: 17.5 mm

Produkt ID 1254180000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data General data Assembly properties Thermal tests Component properties Design - IN requirements Individualization options Important note Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
Modular housing, OMNIMATE Housing - series CH20M black, Base element, Recess in detent foot area for BUS contact, Width: 17.5 mm
Order No.
1254180000
Type
CH20M17 B BUS BK/OR 2010
GTIN (EAN)
4050118047042
Qty.
12 Styk

Dimensions and weights

Depth
108 mm
Depth (inches)
4.252 inch
Height
109.3 mm
Height (inches)
4.303 inch
Width
17.5 mm
Width (inches)
0.689 inch
Net weight
29.858 g

Temperatures

Ambient temperature
-25 °C…85 °C
Operating temperature range
-40...120 ℃
Влажность
5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Plastic
Brennbarkeitsklasse nach UL 94
V-0
Comparative Tracking Index (CTI)
600 ≤ CTI
Isolierstoff
PA 66 GF 30
Isolierstoffgruppe
I
Surface finish
untreated

General data

IP20 in installed state
Colabilità
No
Color
black
Színskála (hasonló)
RAL 9011
Tartósín
TS 35

Assembly properties

장착 어셈블리 암형 커넥터용 슬롯 수, 최대
6
Number of PCBs, max.
1
Number of connection levels, max.
3
Number of poles, max.
18
Komponenternas höjd på kretskortet, max
11.1 mm
Rodzaj montażu płytki drukowanej
double-sided

Thermal tests

Thermische Prüfungen
  • Test conditions:
    three housings installed in a row - no spacing
  • Test axles:
    horizontal
  • Ambient temperature:
    80 °C
  • Power dissapation, max.:
    0.9 W

Component properties

Color of clip-on foot
orange
Cut out in clip-on foot area as preperation for
Bus contact not included!
Počet úrovní připojení, max.
3

Design - IN requirements

PCB thickness
1.6 mm
Tolerance for the PCB shape
±0.1 mm
Tolerance of circuit board thickness
±0.15 mm

Individualization options

Behandlingsmöjligheter
Laser processing
Customer specific labelling possible
Yes
Альтернативные цвета
More on request
고객 특정적 주문 절차
See guideline under downloads

Important note

Product information
Circuit board contour, restricted zones, and other information for the design in of the circuit board can be found in the category connection technology under the corresponding male headers in the downloads.

Product images

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-01
ECLASS 15.0
27-19-06-01
