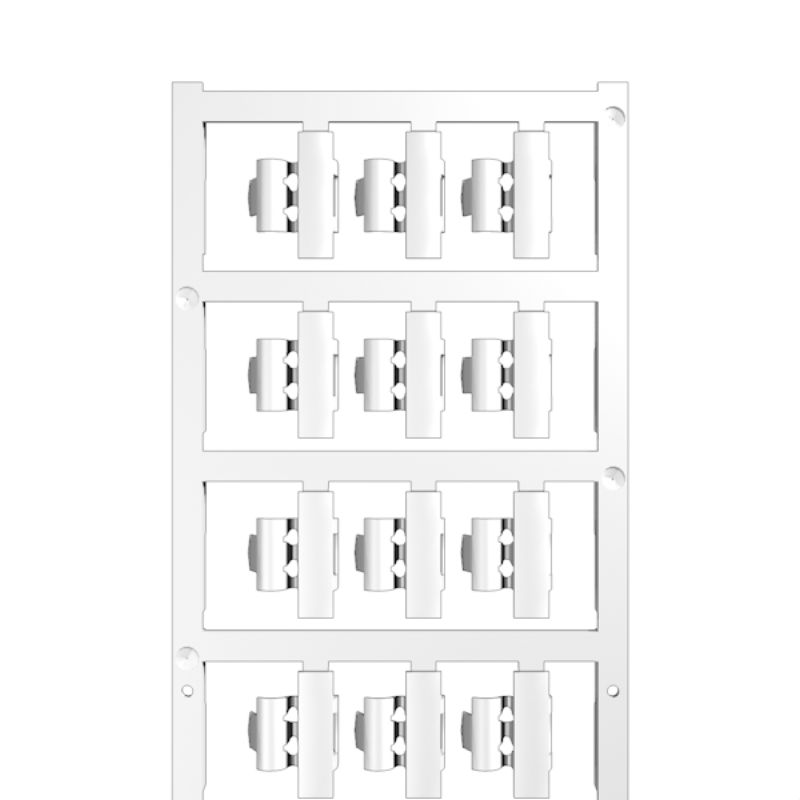

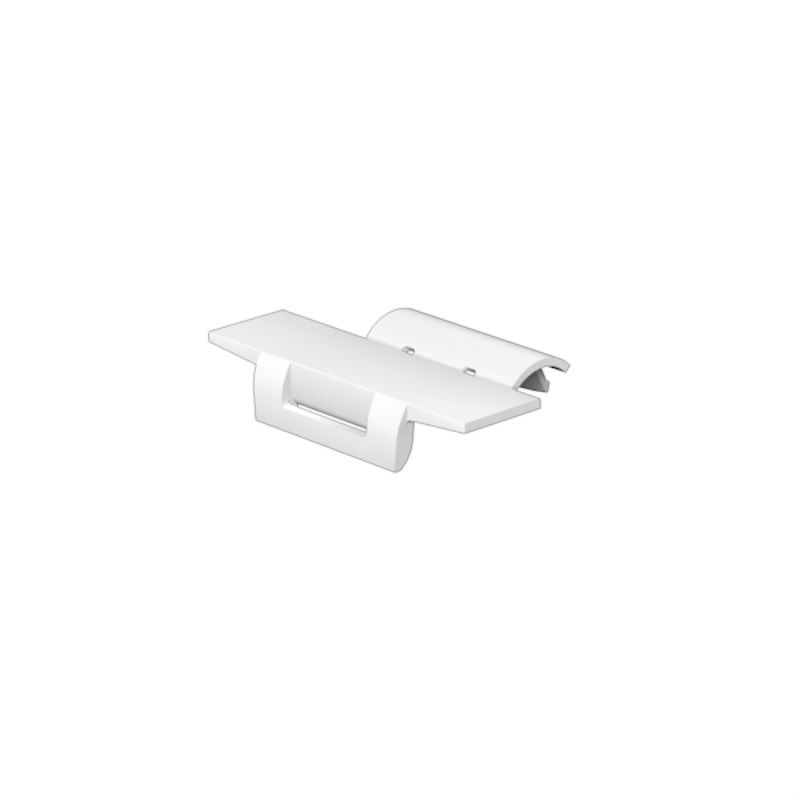

SlimFix Clip, Conductor and cable markers, 3 - 5 mm, 21 x 5.8 mm, white

Ürün No. 1805810000
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 5
Approvals 일반 주문 데이터 Dimensioni e pesi Temperatures 환경 제품 규정 준수 General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

일반 주문 데이터

Version
SlimFix Clip, Conductor and cable markers, 3 - 5 mm, 21 x 5.8 mm, white
Order No.
1805810000
Type
SFC 2/21 MC NE WS
GTIN (EAN)
4032248273546
Qty.
120 adet

Dimensioni e pesi

Depth
7,6 mm
Głębokość (cale)
0,299 inch
Height
21 mm
Height (inches)
0,827 inch
Width
5,8 mm
Width (inches)
0,228 inch
Net weight
0,808 g

Temperatures

Operating temperature range
-40...100 °C

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.005 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Material colour according to resistance code
9
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Recommended industries
Maschinenbau
Size of labelling field
21 x 5.8 mm
Type of printing
neutral
UL 94 flammability rating
V-2
Width
5,8 mm

Conductor and cable markers

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
3 mm²
Conductor O.D.
3 - 5 mm
Conductor O.D., max.
5 mm
Conductor O.D., min.
3 mm
Cross-section for connected wire
3 - 4 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
