Özellikler

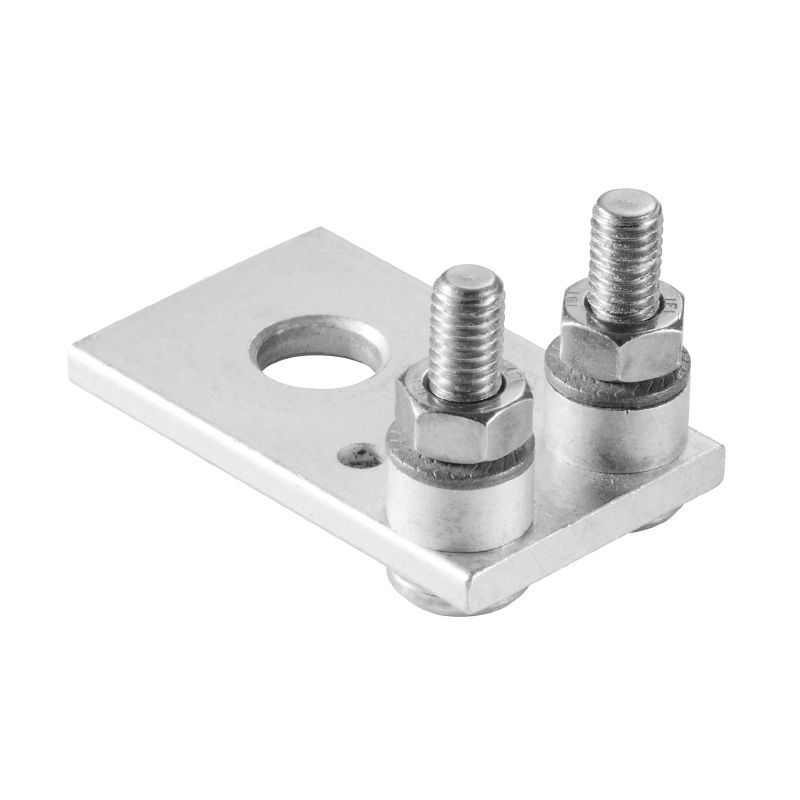

| Version | Bolt-type screw terminals, Busbar, Number of poles: |
| Order No. | 1868880000 |
| Type | SMSE WF10/2XM6 |
| GTIN (EAN) | 4032248499755 |
| Qty. | 10 adet |
| Depth | 28,5 mm |
| Depth (inches) | 1,122 inch |
| Height | 48 mm |
| Height (inches) | 1,89 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Net weight | 77,7 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0b4175f8-aa16-44b6-bff0-e8333344a12b |
| Material | Copper |
| Surface finish | tinned |
| Colour | Silver grey |
| Installation advice | Direct mounting |
| Installation advice | Direct mounting |
| Surface finish | tinned |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224892) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1868880000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1868880000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-14-11-92 |
| ECLASS 14.0 | 27-14-11-92 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:1319070000Ambalaj birimi:25 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1780870000Ambalaj birimi:20 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1968940000Ambalaj birimi:20 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting
-
Ürün No.:1780880000Ambalaj birimi:20 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1319080000Ambalaj birimi:25 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1968950000Ambalaj birimi:20 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1857540000Ambalaj birimi:4 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1028500000Ambalaj birimi:5 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting
-
Ürün No.:1049240000Ambalaj birimi:4 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting, TS 35
-
Ürün No.:1028580000Ambalaj birimi:5 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
-
Ürün No.:1029500000Ambalaj birimi:4 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection
