Özellikler

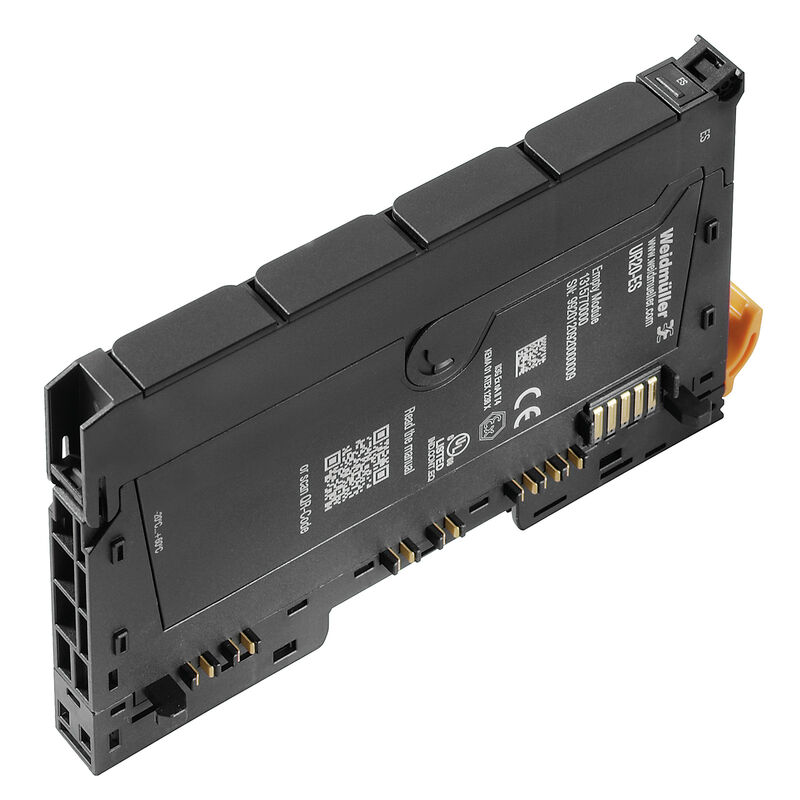

| Version | Remote I/O module, IP20, Reserve module |
| Order No. | 1315770000 |
| Type | UR20-ES |
| GTIN (EAN) | 4050118118841 |
| Qty. | 1 adet |
| Packaging | Cardboard box |
| Depth | 76 mm |
| Depth (inches) | 2,992 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 11.5 |
| Width (inches) | 0,453 inch |
| Mounting dimension - height | 128 mm |
| Net weight | 70 g |
| Storage temperature | -40 °C ... +85 °C |
| Operating temperature | -20 °C ... +60 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 82327f13-cd27-455a-ab5b-a62e1996dcf8 |
| Approval/Certificate/Document of Conformity |
[Compass safe distance certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49584)
[Lloyds Register certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49585) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_321094) [CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_314786) [DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_49586) [ABS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52871) [RINA certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_52872) [Bureau Veritas - Type Approval Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_90817) [PRS (Polish Register of Shipping)](https://mdcop.weidmueller.com/mediadelivery/asset/900_102756) [NIPPON KAIJI KYOKAI Certificate - ClassNK](https://mdcop.weidmueller.com/mediadelivery/asset/900_103119) [DEMKO15ATEX1525X](https://mdcop.weidmueller.com/mediadelivery/asset/900_216513) [CCS certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_314296) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_51788)
[Compatibility information -- Combinability of UR20](https://mdcop.weidmueller.com/mediadelivery/asset/900_164873) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1315770000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1315770000) |
| User Documentation |
[MAN_U-REMOTE_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49496)
[MAN_U-REMOTE_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49497) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001597 |
| ETIM 7.0 | EC001597 |
| ETIM 8.0 | EC001597 |
| ETIM 9.0 | EC001597 |
| ECLASS 9.0 | 27-24-26-02 |
| ECLASS 9.1 | 27-24-26-02 |
| ECLASS 10.0 | 27-24-26-02 |
| ECLASS 11.0 | 27-24-26-02 |
| ECLASS 12.0 | 27-24-26-02 |
| ECLASS 13.0 | 27-24-26-02 |
| ECLASS 14.0 | 27-24-26-02 |
| Approvals |                 |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
| Certificate no. (cULusEX) | E223527 |
