Signal module, 830 V, 16 A, Number of poles: 6, Crimp connection, Male, Required plug-in slots: 1

Product ID 1505650000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 11 Contradelen 1 Is contradeel van 1 Verwante producten 106
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data PE connection data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version

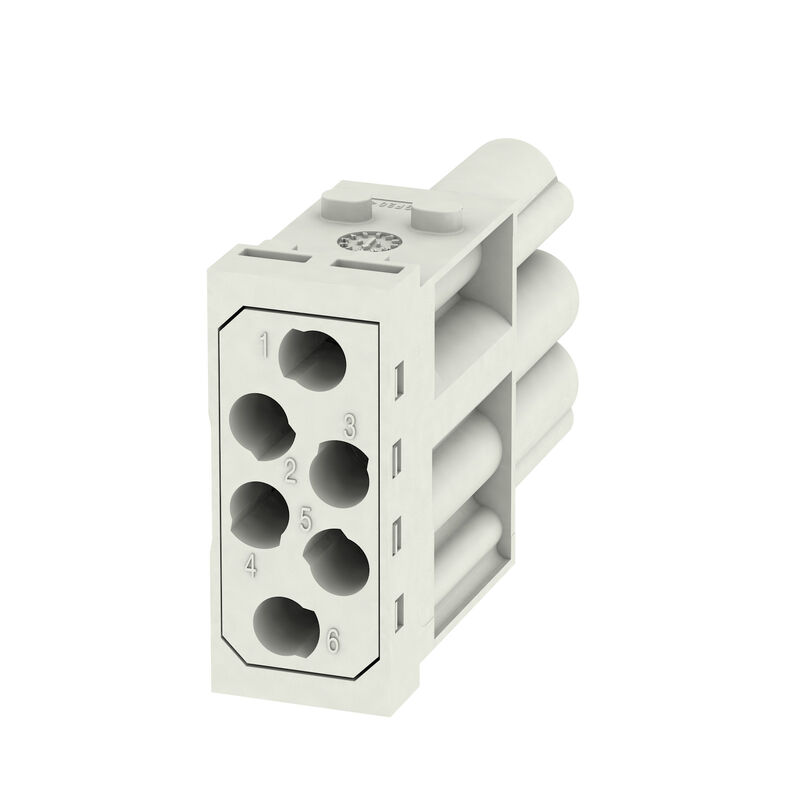

Signal module, 830 V, 16 A, Number of poles: 6, Crimp connection, Male, Required plug-in slots: 1
Order No.
1505650000
Type
HDC MHE 6P MC
GTIN (EAN)
4050118314113
Qty.
1  items

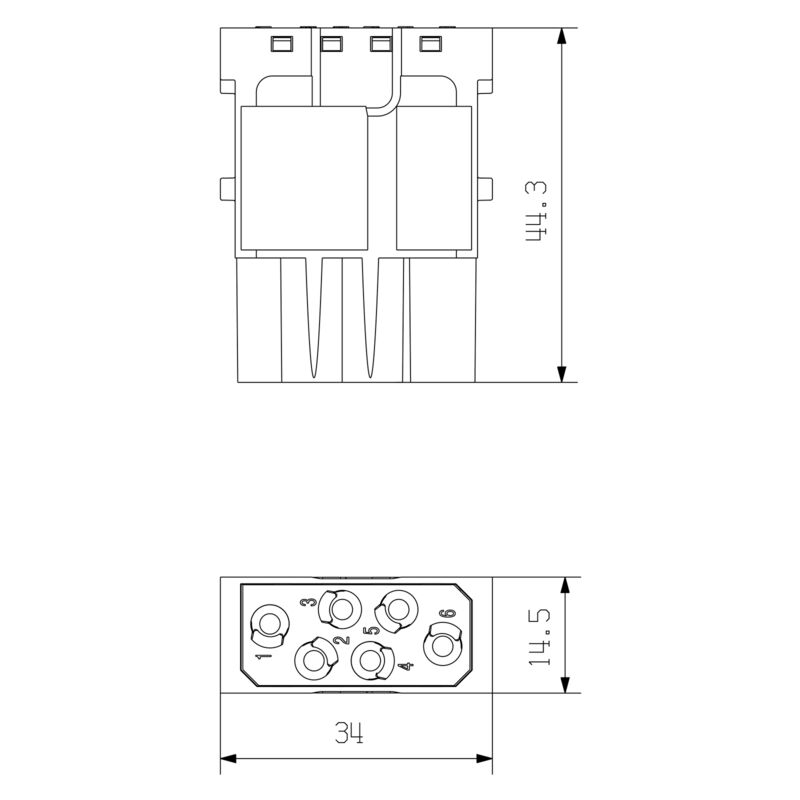

Dimensions and weights

Depth
34  mm
Depth (inches)
1,339  inch
Height
44,3  mm
Height (inches)
1,744  inch
Width
14,5  mm
Width (inches)
0,571  inch
Net weight
11,475  g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd

General data

Insulation strength
1012 Ω
Material
Polycarbonate, glass fibre reinforced
Number of poles
6
Plugging cycles
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16  A
Rated impulse voltage (DIN EN 61984)
8  kV
Rated voltage (DIN EN 61984)
830  V
Rated voltage according to UL/CSA
600 V
Required plug-in slots
1
Series
ModuPlug
Surge voltage category
III
Type
Male
UL 94 flammability rating
V-0

PE connection data

Connection type PE
Screw connection via module frame

Version

Conductor cross-section, max.
4  mm²
Conductor cross-section, min.
0,5  mm²
Stripping length, rated connection
7,5  mm
Type of connection
Crimp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20

Classifications

ETIM 6.0
EC002312
ETIM 7.0
EC002312
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-92
ECLASS 9.1
27-44-02-18
ECLASS 10.0
27-44-02-92
ECLASS 11.0
27-44-02-92
ECLASS 12.0
27-44-02-92
ECLASS 13.0
27-44-02-92
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
