Properties

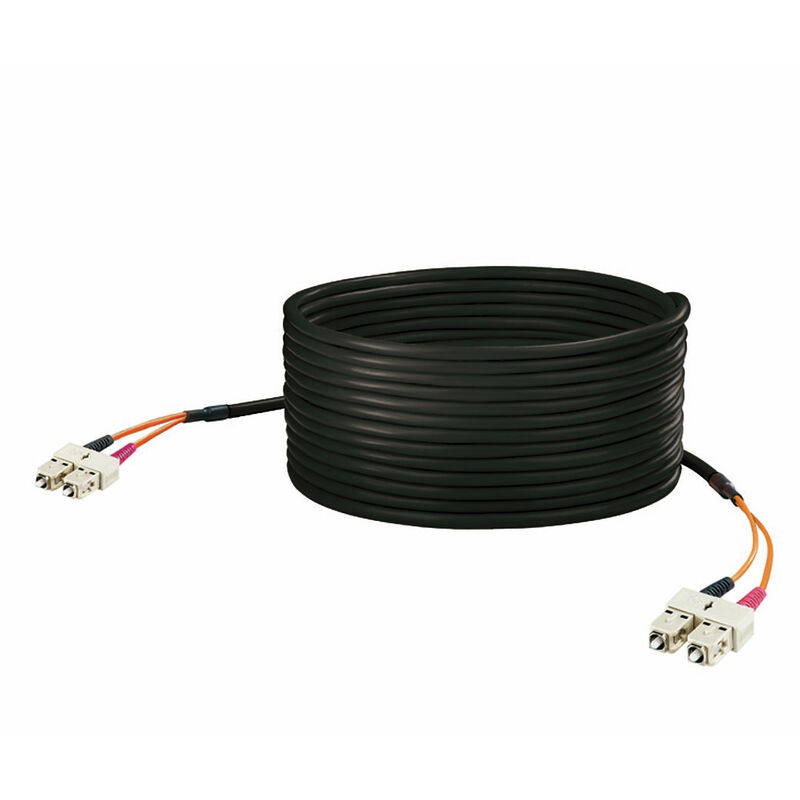

| Version | Dragline cable, SC duplex IP 20, SC duplex IP 20, 50 µm, PUR, 3 m |
| Order No. | 8876430030 |
| Type | IE-FM5D2UE0003MSD0SD0X |
| GTIN (EAN) | 4032248609888 |
| Qty. | 1 items |
| Length | 3 m |
| Length (inches) | 118.11 inch |
| Net weight | 112 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...80 |
| Installation temperature | -20 °C...60 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Connector left | SC duplex IP 20 |
| Connector right | SC duplex IP 20 |
| Material sheath | PUR |
| Product type | Dragline cable |
| Sheathing colour | black |
| Connector standard | IEC 61754-4 |
| Connector standard | IEC 61754-4 |
| Cable layout | Break-out dragline |
| Core diameter | 50 µm |
| Material sheath | PUR |
| Primary coating | 245 µm |
| Sheath diameter | 6 mm |
| Sheathing colour | black |
| Bending cycles | 100,000 |
| Halogen | No |
| Min. bending radius, once only | 25 mm |
| Min. bending radius, repetitive | 77 mm |
| Plug left | SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug left | SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=8876430030&norm=0) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ROHS | Conform |
