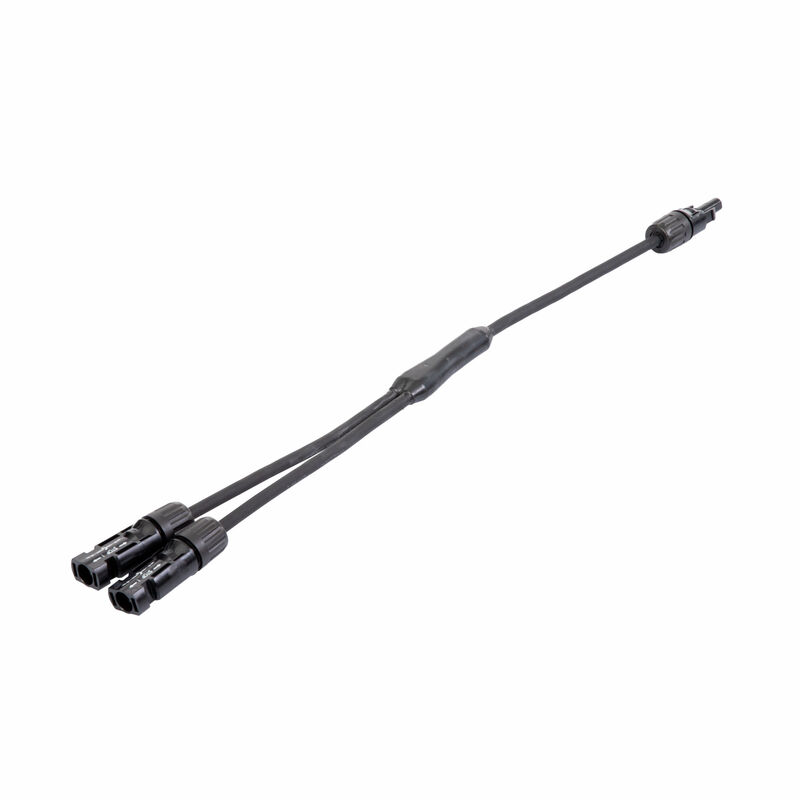

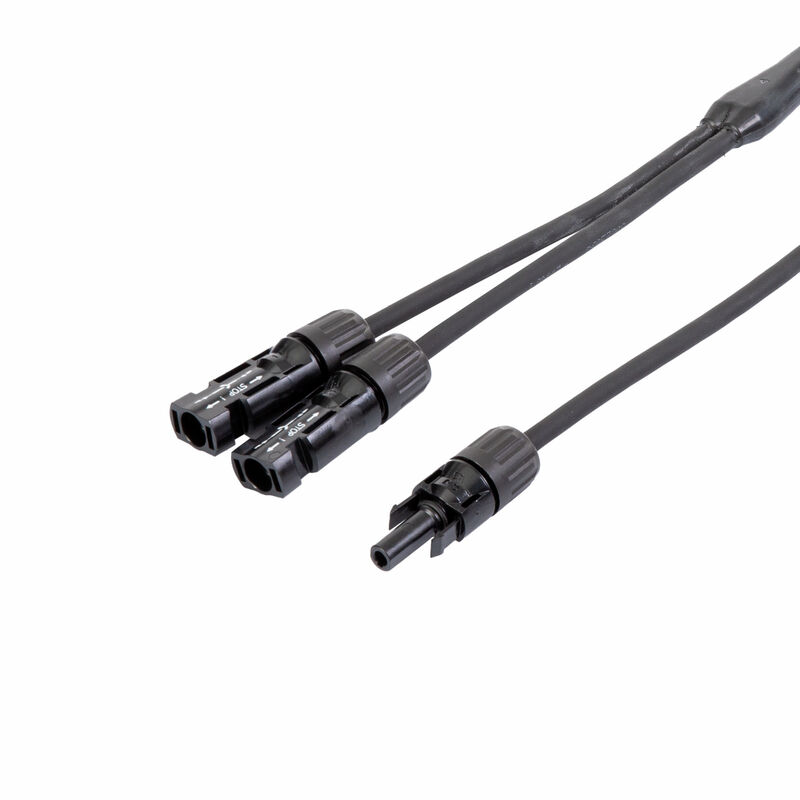

Photovoltaics, Y-Connector Cable, 1x MC4 Female, 2x MC4 Male, 6mm², 1100 V

Ürün No. 3032110000
Veri sayfasını indir Product Downloads
aksesuarıdır 4 İlgili ürünler 9
Approvals General ordering data 치수 및 중량 Shoda produktu s prostředím PV cable harnessing Electrical characteristics Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Y-Connector Cable, 1x MC4 Female, 2x MC4 Male, 6mm², 1100 V
Order No.
3032110000
Type
PVHYM+XXM-XX06M-11
GTIN (EAN)
4099986981171
Cantidad
1 Pieza

치수 및 중량

Net weight
89,8 g

Shoda produktu s prostředím

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

PV cable harnessing

PV cable version
  • Cable side:
    left
  • Number:
    1
  • Cable length:
    160 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    39 A
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    connector
  • Connector version:
    MC 4
  • Type of plug-in contact:
    female
  • Cable side:
    right 1
  • Number:
    1
  • Cable length:
    200 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    39 A
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    connector
  • Connector version:
    MC 4
  • Type of plug-in contact:
    male
  • Cable side:
    right 2
  • Number:
    2
  • Cable length:
    200 mm
  • Cable colour:
    black
  • Cable cross section:
    6 mm²
  • Rated current:
    39 A
  • Inline fuse integrated:
    No
  • Version of cable end [In-Block):
    connector
  • Connector version:
    MC 4
  • Type of plug-in contact:
    male
Rated DC voltage
1.100 V
Wire cross-section
6 mm²

Electrical characteristics

Rated DC voltage
1.100 V

Classifications

ETIM 8.0
EC001576
ETIM 9.0
EC001576
ETIM 10.0
EC001576
ECLASS 14.0
27-06-04-02
ECLASS 15.0
27-06-04-02
