Egenskaber

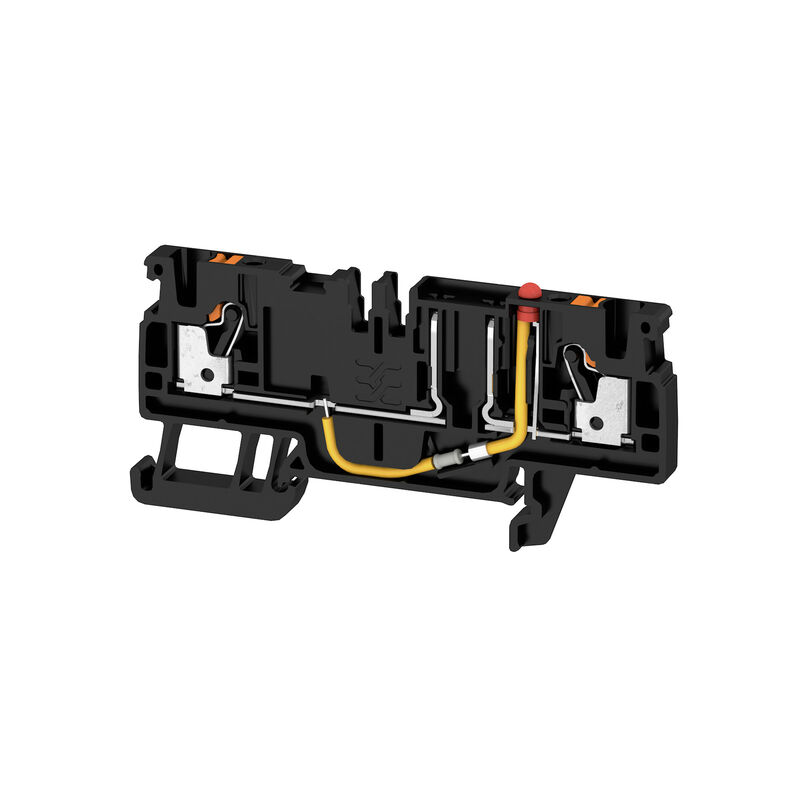

| Version | Fuse terminal, PUSH IN, 2.5 mm², 12 V, 10 A, black |
| Order No. | 2466610000 |
| Type | AFS 2.5 CF 2C 12V BK |
| GTIN (EAN) | 4050118480733 |
| Qty. | 50 Styk |
| Depth | 37,65 mm |
| Depth (inches) | 1,482 inch |
| Depth including DIN rail | 38,4 mm |
| Height | 77,5 mm |
| Height (inches) | 3,051 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 9,52 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| Material | Wemid |
| Colour | black |
| Version | with LED |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Open sides | right |
| Snap-on | No |
| Type of fixing | Snap-on |
| Type of mounting | TS 35 |
| With snap-in pegs | No |
| Connection type, additional connection | PUSH IN |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,14 mm² |
| Connection cross-section, stranded, max. | 2,5 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 10 mm |
| Tube length for twin wire-end ferrule |
|
| Tube length for wire-end ferrule with plastic collar DIN 46228/4 |
|
| Tube length for wire-end ferrule without plastic collar DIN 46228/1 |
|
| Twin wire-end ferrules, max. | 0,75 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | PUSH IN |
| Type of connection 2 | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 2,5 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-70089609 |
| Current size B (CSA) | 16 A |
| Current size C (CSA) | 16 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 28 AWG |

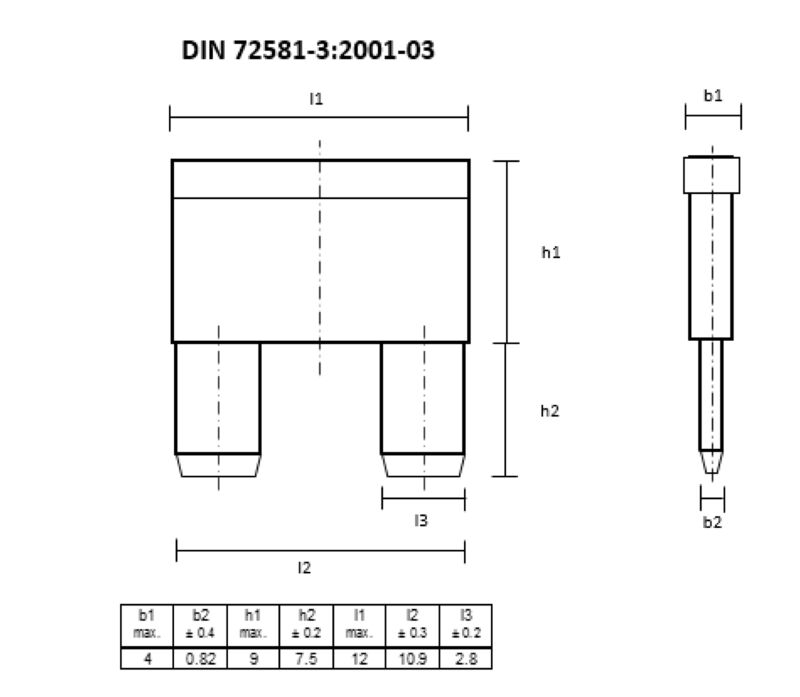

| Cartridge fuse | mini fuse |

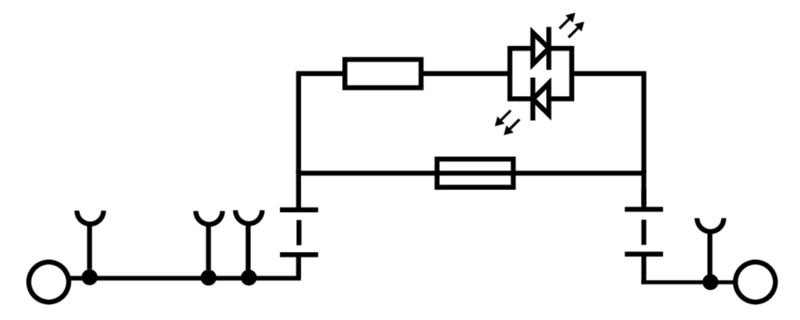

| Display | Red LED |
| Fuse holder (cartridge holder) | Pivoting |
| Leakage current, max. | 0,5 mA |
| Rail | TS 35 |
| Standards | In accordance with IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 28 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 12 V |
| Rated voltage to adjoining terminal | 500 V |
| Rated DC voltage | 12 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards | In accordance with IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 28 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 28 AWG |
| Current size B (cURus) | 16 A |
| Current size C (cURus) | 16 A |
| Current size D (cURus) | 10 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 300 V |
| Voltage size D (cURus) | 300 V |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
