Egenskaber

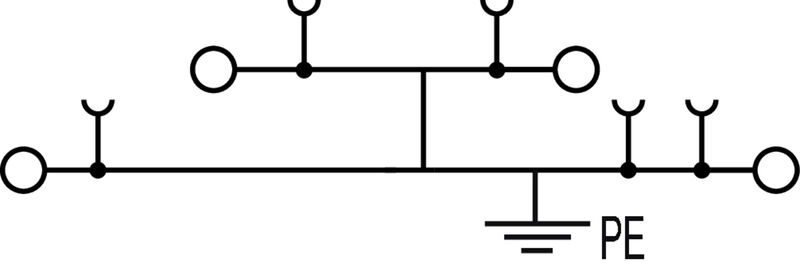

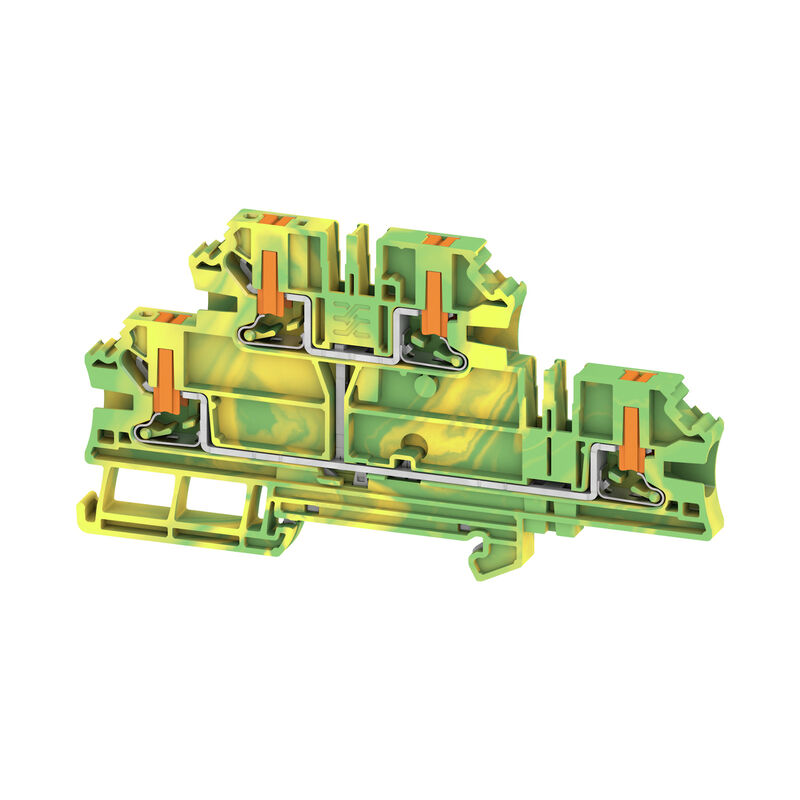

| Version | Multi-tier PE terminal, PUSH IN, Green/yellow, 4 mm², 800 V, Number of connections: 4, Number of levels: 2, V-0, Wemid |
| Order No. | 2847810000 |
| Type | AL2T 4 PE |
| GTIN (EAN) | 4064675457350 |
| Qty. | 50 Styk |
| Depth | 59,5 mm |
| Depth (inches) | 2,343 inch |
| Height | 113,5 mm |
| Height (inches) | 4,468 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 25,14 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | Green/yellow |
| Colour of operational elements | orange |
| UL 94 flammability rating | V-0 |
| End cover plate required | Yes |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | Yes |
| N-function | No |
| PE function | Yes |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | right |
| Snap-on | Yes |
| Type of fixing | TS 35 |
| Type of mounting | TS 35 |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0,14 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0,14 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A4 |
| Number of connections | 4 |
| Stripping length | 12 mm |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Standards | IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| PEN function | No |
| Rated cross-section | 4 mm² |
| Rated voltage to adjoining terminal | 800 V |
| Rated DC voltage | 800 V |
| Standards | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage to adjacent terminal | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1,02 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_315432) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2847810000) |
| Safety Information | [Go to website](https://www.weidmueller.com/int/service/safety_info.jsp) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| ECLASS 11.0 | 27-14-11-41 |
| ECLASS 12.0 | 27-14-11-41 |
| ECLASS 13.0 | 27-25-01-04 |
| ECLASS 14.0 | 27-25-01-04 |
| Approvals |  |
