Egenskaber

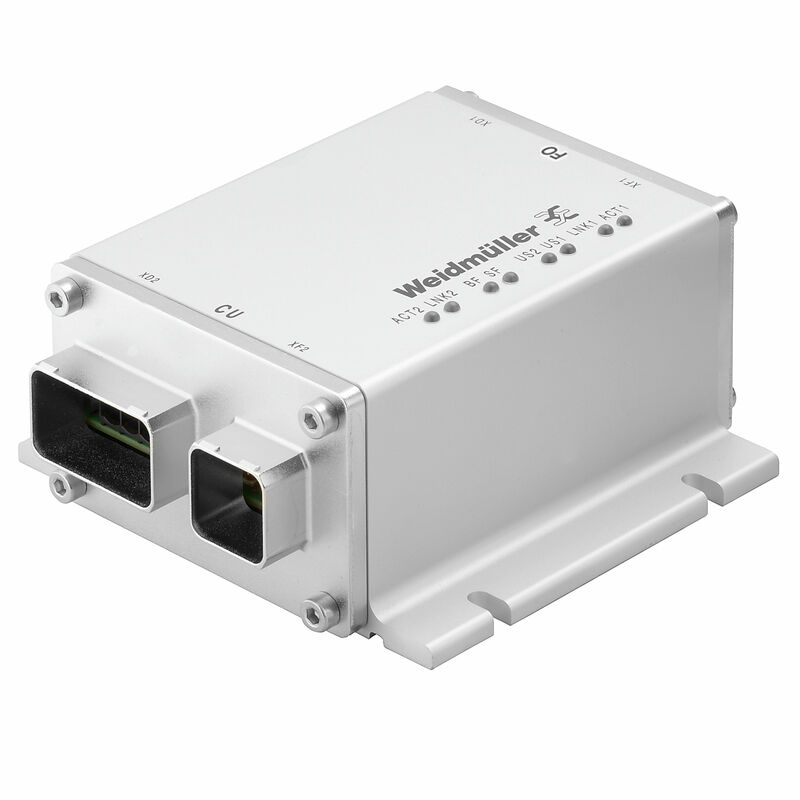

| Version | POF media converter, FreeCon, IP65 |
| Order No. | 2588270000 |
| Type | IE-CDM-V14MRJSCP/VAPM-C II |
| GTIN (EAN) | 4050118598322 |
| Qty. | 1 Styk |

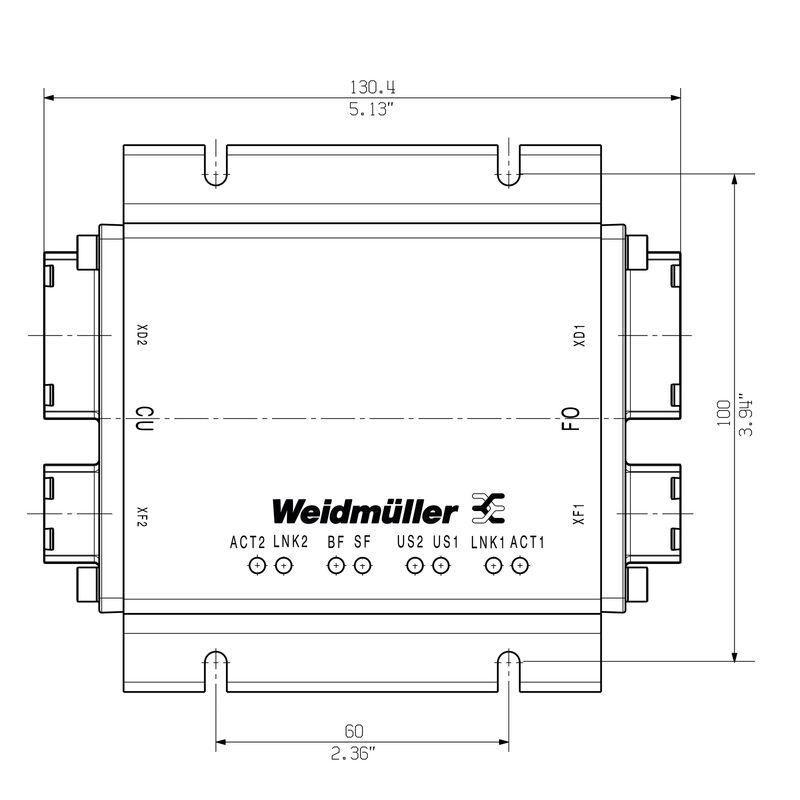

| Depth | 130,4 mm |
| Depth (inches) | 5,134 inch |

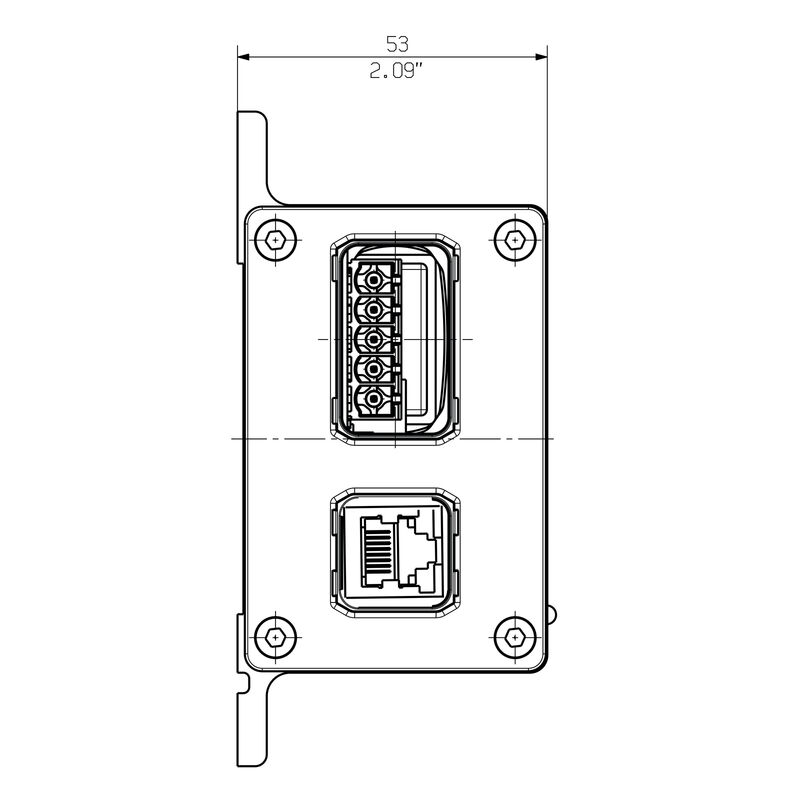

| Height | 53 mm |
| Height (inches) | 2,087 inch |
| Width | 100 mm |
| Width (inches) | 3,937 inch |
| Net weight | 557,7 g |
| Operating temperature | -20 °C...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b14ea46f-06a9-4191-9f88-14cc6c04a8a8 |

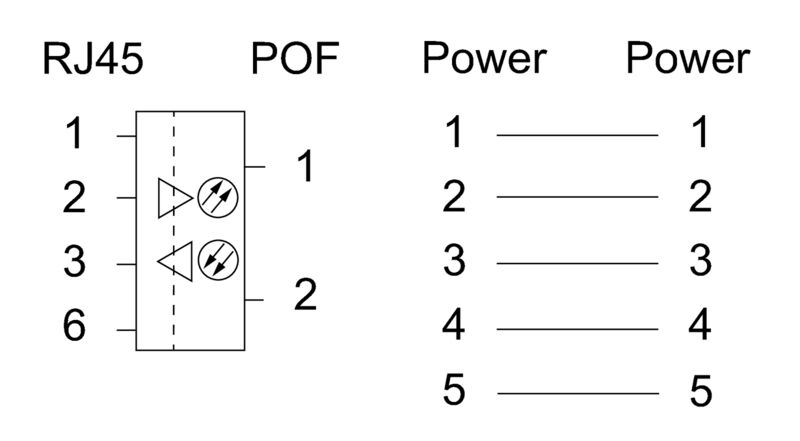

| Data interface |
PROFINET PushPull SCRJ POF (V14)
PROFINET PushPull RJ45 (V14) |
| Housing main material |
Aluminium profile
Cover: die-cast zinc, electroplated |
| Plugging cycles | ≥ 100 |
| Power interface | PROFINET PushPull Power |
| Protection degree | IP65 |
| UL 94 flammability rating | V-0 |
| Wiring | PROFINET |
| Baud rate | 100 MB |
| Current consumption | 200 mA typical |
| LED indicator |
P1: port active
P2: port active SF: general error BF: bus error US1: voltage 1 (electronics) US2: voltage 2 ACT1: activity Port1 ACT2: activity Port2 |
| Operating voltage | 24 V |
| Operational voltage range | 18…30 V DC |
| Protocol | PROFINET IRT |
| Certificate no. (cULus) | E141197 |
| Connector standard |
IEC 61076-3-117 Var. 14
IEC 61754-24 IEC 60603-7-51 |
| Network standard |
IEC 61158
IEC 61784 |
| PROFINET specification | Conformance Class C acc. V2.3 |
| Product information | Further development of 1324440000, IE-CDM-V14MRJSCP/VAPM-C. For commissioning, the new GSDML file (see Downloads) must be installed. |
| Approval/Certificate/Document of Conformity |
[Profinet_Certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_91185)
[EU declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_91184) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96052) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2588270000) |
| Software |
[Runtime Software -- CFG configurator - Weidmueller_FreeCon](https://mdcop.weidmueller.com/mediadelivery/asset/900_58437)
[Firmware -- Firmware 1_02_01 / GSD - V2.34](https://mdcop.weidmueller.com/mediadelivery/asset/900_91186) |
| User Documentation |
[Manual DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_91214)
[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_96819) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001467 |
| ETIM 7.0 | EC001467 |
| ETIM 8.0 | EC001467 |
| ETIM 9.0 | EC001467 |
| ECLASS 9.0 | 19-17-01-14 |
| ECLASS 9.1 | 19-17-01-14 |
| ECLASS 10.0 | 19-17-01-32 |
| ECLASS 11.0 | 19-17-01-32 |
| ECLASS 12.0 | 19-17-01-32 |
| ECLASS 13.0 | 19-17-01-14 |
| ECLASS 14.0 | 19-17-01-32 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
