IE-FCI-PWB-DE-BK
IE-FCI-PWB-DE-BK

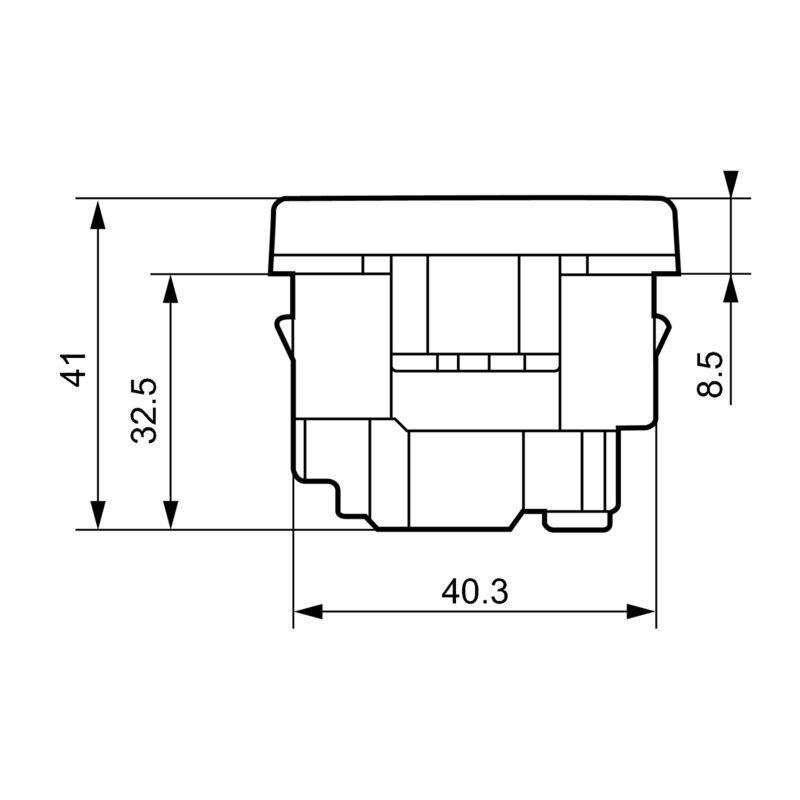

Dimensioned drawing
IE-FCI-PWB-DE-BK

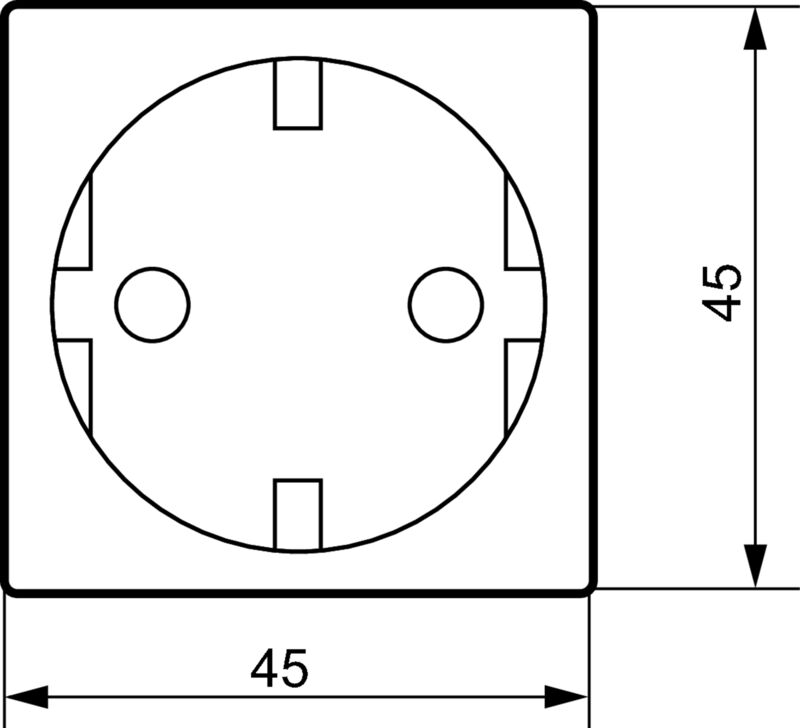

Dimensioned drawing

IE-FCI-PWB-DE-BK

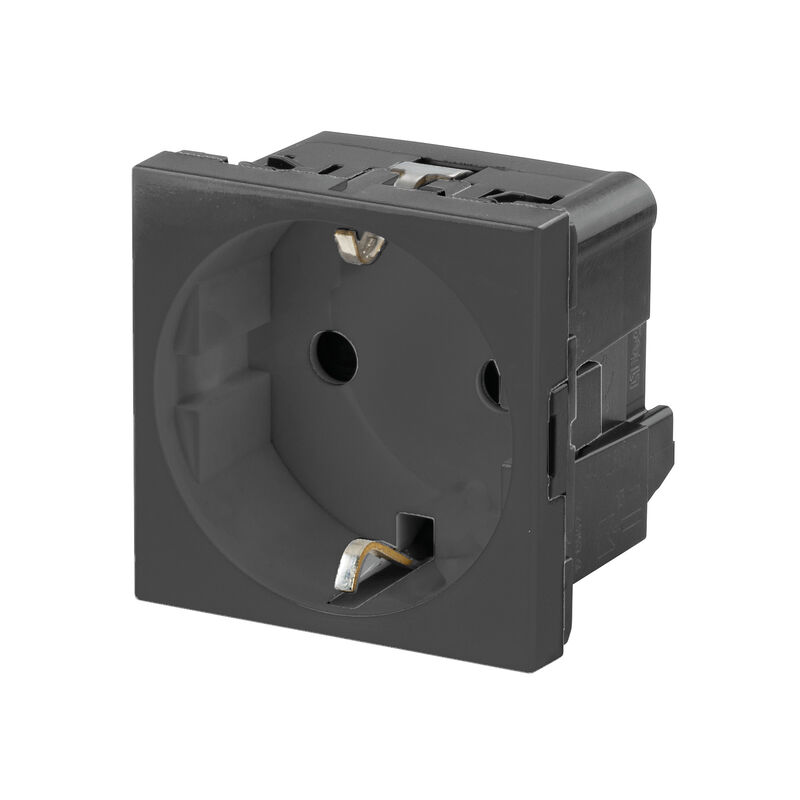

FrontCom, Insert Power large, Type F, Socket connector, DE

Product ID 3088740000
Gegevensblad downloaden Productdownloads
Is accessoire van 2 Verwante producten 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Upnutelné vodiče Technical data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)

General ordering data

バージョン
FrontCom, Insert Power large, Type F, Socket connector, DE
注文番号
3088740000
Type
IE-FCI-PWB-DE-BK
GTIN (EAN)
4099987105378
Qty.
1 items

Dimensions and weights

Net weight
34 g

Temperatures

Storage temperature
-10 °C...70 °C
Operating temperature
-5 °C...40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Fire load
770 kJ
Insert type
Insert Power large
Lado de conexión
Type F
Protection degree
IP20

Upnutelné vodiče

Conductor connection cross-section, extremely flexible with wire end ferrule
  • min.:
    1,5 mm²
  • max.:
    1,5 mm²
Conductor connection cross-section, extremely flexible with wire end ferrule
1.5 ... 1.5 mm²
Conductor connection cross-section, extremely flexible without wire end ferrule
  • min.:
    1,5 mm²
  • max.:
    2,5 mm²
Conductor connection cross-section, extremely flexible without wire end ferrule
1.5 ... 2.5 mm²
Conductor connection cross-section, flexible with wire end ferrule
  • мин.:
    1,5 mm²
  • макс.:
    1,5 mm²
Conductor connection cross-section, flexible without wire end ferrule
1.5 ... 2.5 mm²
Conductor connection cross-section, flexible without wire end ferrule
  • min.:
    1,5 mm²
  • max.:
    2,5 mm²
Conductor connection cross-section, rigid
  • min.:
    1,5 mm²
  • max.:
    2,5 mm²
Conductor connection cross-section, rigid
1.5 ... 2.5 mm²
Průřez připojení vodiče, flexibilní s koncovkou
1.5 ... 1.5 mm²
Stripping length
10 mm
Type of connection
PUSH IN

Technical data

Ház fő anyaga
Polycarbonate PC
Névleges áram
16 A
Tension nominale (AC)
250 V

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-18-28-92
ECLASS 15.0
27-18-28-92
