Egenskaber

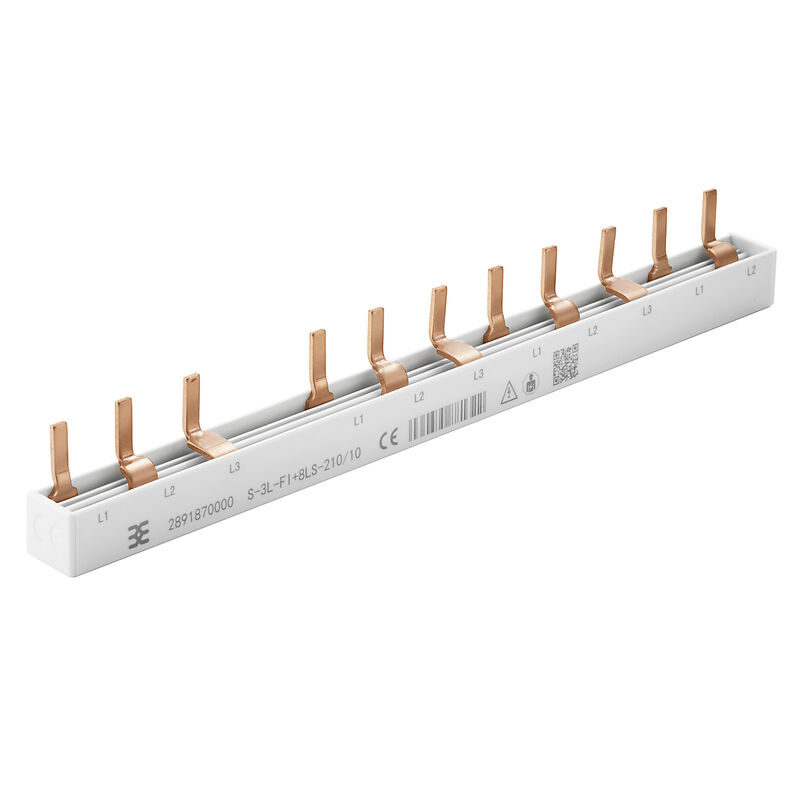

| Version | Phase busbar (Terminals), 63, Number of poles: 11, Insulated: Yes |
| Order No. | 2891870000 |
| Type | S-3L-FI+8LS-210/10 |
| GTIN (EAN) | 4064675881322 |
| Qty. | 20 Styk |

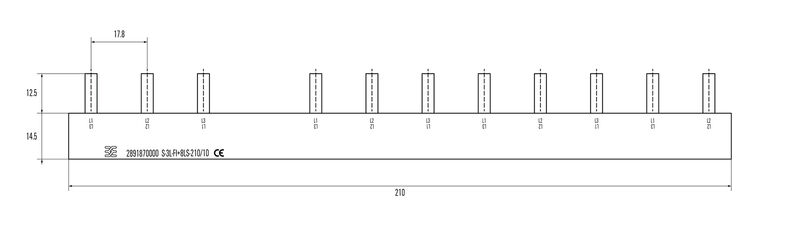

| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 27,5 mm |
| Height (inches) | 1,083 inch |
| Width | 210 mm |
| Width (inches) | 8,268 inch |
| Net weight | 8 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Pitch in mm (P) | 17,8 mm |
| Number of poles | 11 |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_314052) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 9.0 | EC000215 |
| ECLASS 11.0 | 27-37-13-06 |
| ECLASS 12.0 | 27-37-13-06 |
| ECLASS 13.0 | 27-37-13-06 |
| ECLASS 14.0 | 27-37-13-06 |
| Approvals |  |
| ROHS | Conform |
Tilbehør
-
-
-
-
-
-
Produkt ID:2659040000Pakningsenhed:10 Styk
Terminal cover, yellow, Height: 18.3 mm, Width: 8.1 mm, Depth: 18 mm
-
Produkt ID:2659000000Pakningsenhed:10 Styk
Terminal cover, grey, Height: 20.2 mm, Width: 8.2 mm, Depth: 14.5 mm
