Egenskaber
| Version | Built-in plugs, M12, Mounting thread: , Number of poles: 5, Strand / cable length: |
| Order No. | 1467830000 |

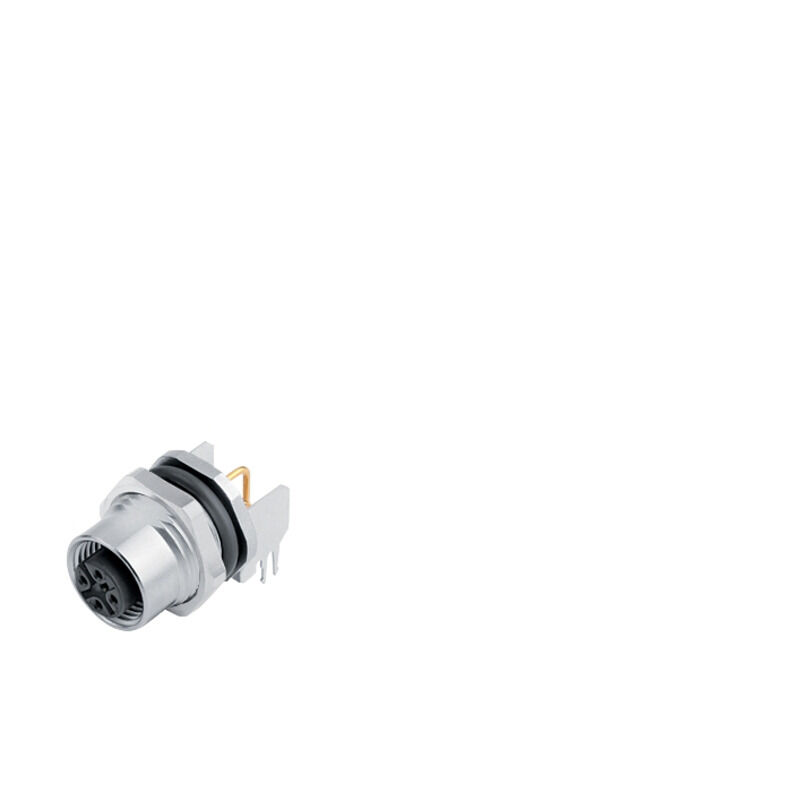

| Type | SAIEW-M12B-5S-TL-HW-PG9 |
| GTIN (EAN) | 4050118273472 |
| Qty. | 15 Styk |
| Net weight | 18,27 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Cable glands | PG 9 |
| Coding | A-coded |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Number of poles | 5 |
| Protection degree |
IP67
when fully mounted |
| Rated current | 4 A |
| Rated current | 4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole) |
| Rated voltage | 125 V |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Socket connector |
| Connector standard | IEC 61076-2-101 |
| Cable glands | PG 9 |
| Coding | A-coded |
| Conductor O.D. | - |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Number of poles | 5 |
| Protection degree |
IP67
when fully mounted |
| Rated current | 4 A |
| Rated current | 4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole) |
| Rated voltage | 125 V |
| Rated voltage | 250 V (4-pole)/ 60 V (5-pole)/ 30 V (8 and 12-pole) |
| Temperature range of housing | -40 … +85 ° C |
| Type of connection | Socket connector |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46725) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1467830000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC003568 |
| ETIM 8.0 | EC003568 |
| ETIM 9.0 | EC003568 |
| ECLASS 9.0 | 27-44-03-09 |
| ECLASS 9.1 | 27-44-03-09 |
| ECLASS 10.0 | 27-44-03-09 |
| ECLASS 11.0 | 27-44-01-10 |
| ECLASS 12.0 | 27-44-01-10 |
| ECLASS 13.0 | 27-44-01-10 |
| ECLASS 14.0 | 27-44-01-10 |
| ROHS | Conform |
