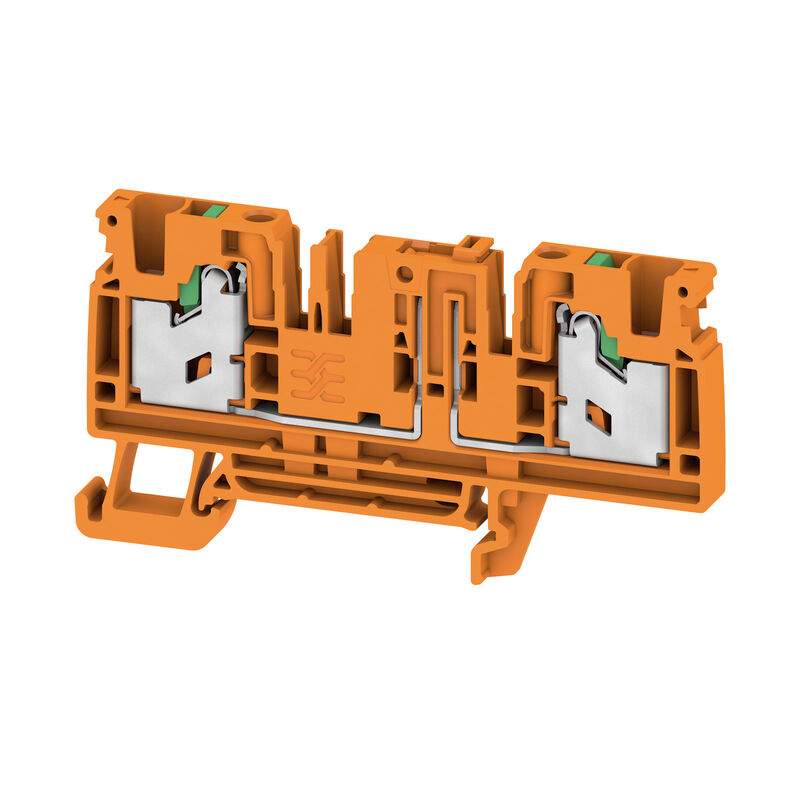

SDT 4 2C OR

Test-disconnect terminal, SNAP IN, orange, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1

Produkt ID 2941440000

Version	Test-disconnect terminal, SNAP IN, orange, 4 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1
Order No.	2941440000
Type	SDT 4 2C OR
GTIN (EAN)	4099986710900
Qty.	50 Styk

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Material	Wemid
Colour	orange
Colour of operational elements	orange
UL 94 flammability rating	V-0

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Blade size	0.6 x 3.5 mm
Clamping range, max.	4 mm²
Clamping range, min.	0,75 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0,75 mm²
Connection direction	top
Gauge to IEC 60947-1	A4
Number of connections	2
Stripping length	12 mm
Type of connection	SNAP IN
Type of connection 2	SNAP IN
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,75 mm²
Wire connection cross-section, solid core, max.	4 mm²
Wire connection cross-section, solid core, min.	0,75 mm²

Rail	TS 35
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section AWG, min.	AWG 20

Rated cross-section	4 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	20 A
Current at maximum wires	20 A
Volume resistance according to IEC 60947-7-x	1 mΩ
Rated impulse withstand voltage	4 kV
Power loss in accordance with IEC 60947-7-x	1,02 mW
Pollution severity	3
Surge voltage category	III

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_322210)
Catalogues	[Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp)
