Egenskaber
| Version | Z-series, Plug-in connector, Rated cross-section: 1.5 mm², Plug-in connection, dark beige, Plug |
| Order No. | 1698190000 |

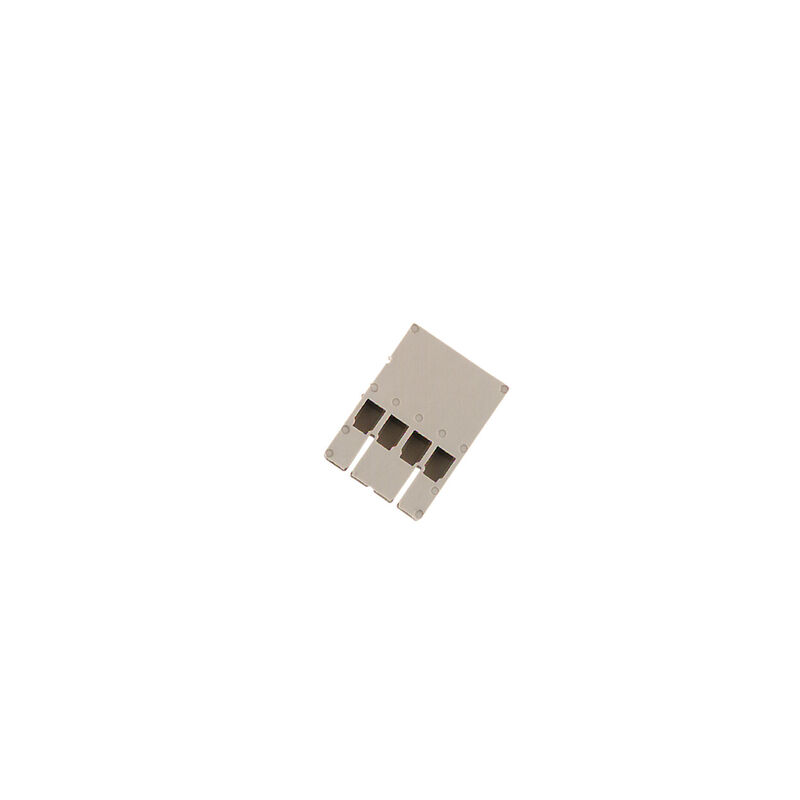

| Type | STGH 4 ZRV1.5 |
| GTIN (EAN) | 4008190886448 |
| Qty. | 50 Styk |
| Depth | 23 mm |
| Depth (inches) | 0,906 inch |
| Height | 16,8 mm |
| Height (inches) | 0,661 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 1,092 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Plug housing
in closed state |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 4 |
| Levels cross-connected internally | No |
| PE connection | No |
| Explosion-tested version | No |
| Installation advice | Plug |
| Type of mounting | Plugged |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 1 mm² |
| Clamping range, min. | 0,5 mm² |
| Connection direction | Inclined / angled |
| Number of connections | 4 |
| Stripping length | 4 mm |
| Type of connection | Plug-in connection |
| Wire connection cross section, finely stranded, max. | 1 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Installation advice | Plug |
| Number of poles | 4 |
| Standards |
IEC 60947-7-1
IEC 61984 |
| Rated cross-section | 1,5 mm² |
| Rated voltage | 63 V |
| Rated DC voltage | 63 V |
| Rated current | 4 A |
| Standards |
IEC 60947-7-1
IEC 61984 |
| Volume resistance according to IEC 60947-7-x | 1,83 mΩ |
| Rated impulse withstand voltage | 1.5 kV |
| Power loss in accordance with IEC 60947-7-x | 0,56 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62892) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1698190000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1698190000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
