Egenskaber

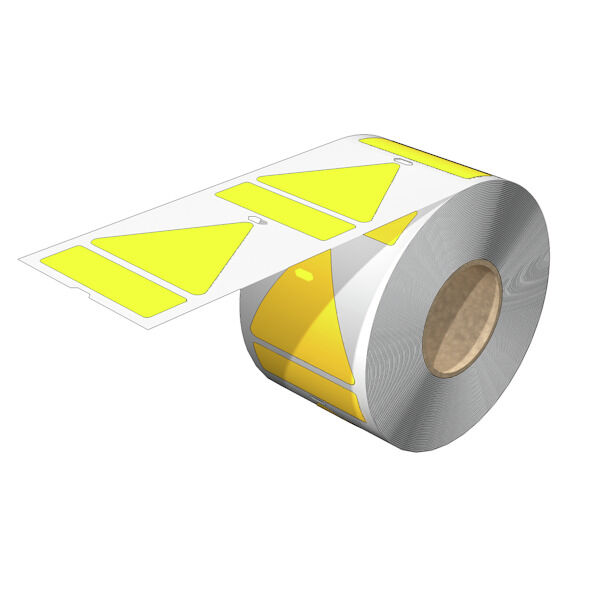

| Version | Device markers, Device markers, 50 x 50 mm, yellow |
| Order No. | 2885640000 |
| Type | THM SE-W 50 GE |
| GTIN (EAN) | 4064675854241 |
| Qty. | 250 Styk |
| Depth | 0,1 mm |
| Depth (inches) | 0,004 inch |
| Height | 50 mm |
| Height (inches) | 1,968 inch |
| Width | 50 mm |
| Width (inches) | 1,968 inch |
| Net weight | 1 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Polyacrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | yellow |
| Halogen | Yes |
| Material | Vinyl film |
| Operating temperature range, max. | 110 °C |
| Operating temperature range, min. | -50 °C |
| Printed characters | neutral |
| UL 94 flammability rating | V-0 |
| Width | 50 mm |
| Halogen | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_274734) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2885640000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
