Egenskaber

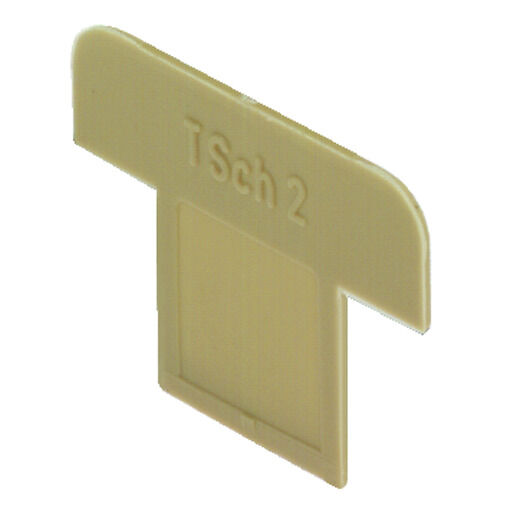

| Version | Small partition (terminal), PA 66, beige, Continuous operating temp., max.: 100 °C |
| Order No. | 0353660000 |
| Type | TSCH 2 |
| GTIN (EAN) | 4008190128432 |
| Qty. | 100 Styk |
| Depth | 19,5 mm |
| Depth (inches) | 0,768 inch |
| Height | 26 mm |
| Height (inches) | 1,024 inch |
| Width | 0,6 mm |
| Width (inches) | 0,024 inch |
| Net weight | 0,211 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59059) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0353660000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0353660000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:0501500000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, dark beige, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 25
-
Produkt ID:0128380000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, blue, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66, 100 °C
-
Produkt ID:1716240000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66, 100 °C
-
Produkt ID:0128360000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66, 100 °C
-
Produkt ID:1019670000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1934810000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1016780000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1019710000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1016700000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1016900000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1938820000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1345280000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1017000000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1019690000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1019680000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:1934820000Pakningsenhed:50 Styk
Measuring transformer disconnect terminal, Screw connection, 41, 2
-
Produkt ID:0460360000Pakningsenhed:100 Styk
Feed-through terminal block, Flat-blade connection, beige / yellow, 2.5 mm², 20 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-2, PA 66, 100 °C
-
Produkt ID:0443660000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, beige / yellow, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-2, PA 66, 100 °C
-
Produkt ID:0443680000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, blue, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-2, PA 66, 100 °C
-
Produkt ID:1323660000Pakningsenhed:50 Styk
Feed-through terminal block, Screw connection, orange, 4 mm², 32 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-2, PA 66, 100 °C
-
Produkt ID:0501620000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 10 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 20
-
Produkt ID:0225820000Pakningsenhed:10 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 6.3 A, 24 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, G-Si. 5 x 20
-
Produkt ID:0178220000Pakningsenhed:20 Styk
Fuse terminal, Screw connection, medium yellow, 10 mm², 16 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, 5VA, KrG, 10 x 38 mm
