Egenskaber

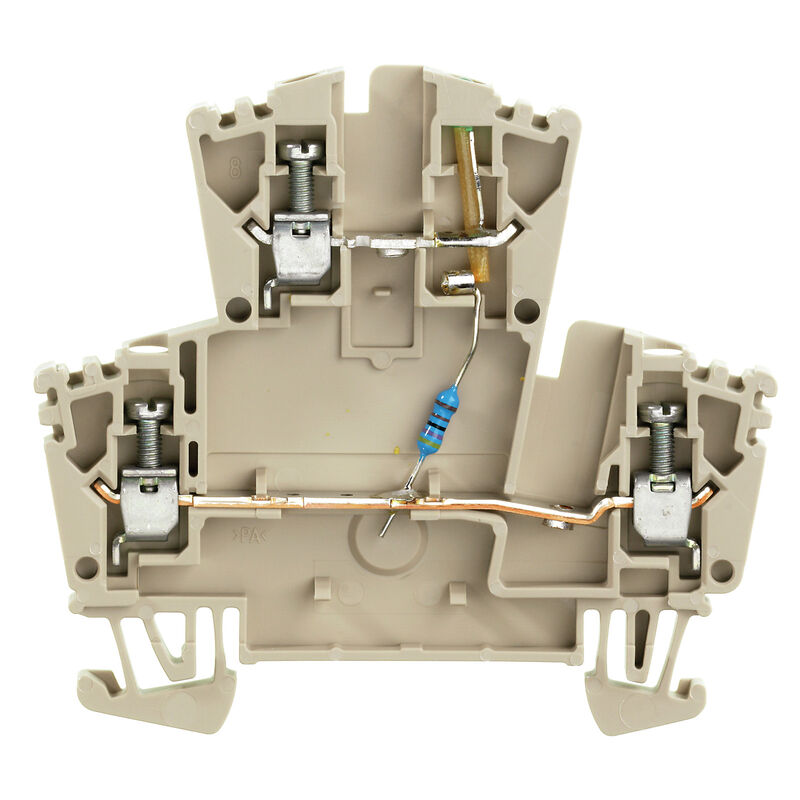

| Version | Component terminal block, Screw connection, dark beige, 2.5 mm², 24 V, Number of connections: 3, Number of levels: 2, TS 35, V-0, Wemid |
| Order No. | 8023610000 |
| Type | WDK 2.5 LD/GN 1R 24VDC |
| GTIN (EAN) | 4008190176990 |
| Qty. | 25 Styk |
| Depth | 62,5 mm |
| Depth (inches) | 2,461 inch |
| Depth including DIN rail | 63 mm |
| Height | 69 mm |
| Height (inches) | 2,717 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 11,19 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
with LED |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 2 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Electronic component | Green LED |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Blade size | 0.6 x 3.5 mm |
| Clampable conductor |
|
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 3 |
| Stripping length | 10 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,4 Nm |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| TS 35 offset | 35,5 mm |
| Current | 5 mA |
| Indicator element | green |
| Operating voltage for display, max. | 24 V |
| Operating voltage for display, min. | 24 V |
| Type of voltage for indicator | DC |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 24 V |
| Rated DC voltage | 24 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 0.8 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Product information | The allowed continuous operating temperature must be observed |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37160)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66663) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8023610000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8023610000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000903 |
| ETIM 7.0 | EC000903 |
| ETIM 8.0 | EC000903 |
| ETIM 9.0 | EC000903 |
| ECLASS 9.0 | 27-14-11-27 |
| ECLASS 9.1 | 27-14-11-47 |
| ECLASS 10.0 | 27-14-11-27 |
| ECLASS 11.0 | 27-14-11-27 |
| ECLASS 12.0 | 27-14-11-27 |
| ECLASS 13.0 | 27-25-01-14 |
| ECLASS 14.0 | 27-25-01-14 |
| Approvals |   |
| ROHS | Conform |
