Eigenschaften
| Ausfuehrung | Tragschienen-Outlet, LWL, LC-Duplex, Multimode, GOF, POF, IP20 |
| Best.-Nr. | 8947010000 |

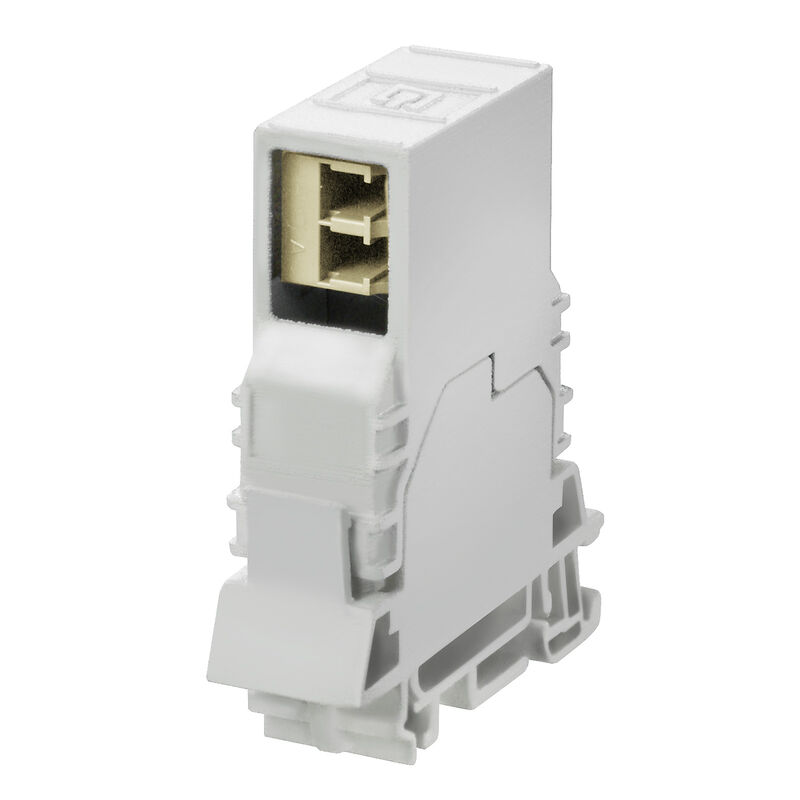

| Art | IE-TO-LCD-MM |
| GTIN (EAN) | 4032248735020 |
| VPE | 10 Stück |
| Nettogewicht | 32,5 g |
| Betriebstemperatur | -40 °C...70 °C |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | No SVHC above 0.1 wt% |
| Anschluss 1 | LC Duplex |
| Anschluss 2 | LC Duplex |
| Einfügungsdämpfung | ≤ 0,4 dB |
| Farbe | lichtgrau |
| Fasertyp |
Multimode
GOF POF |
| Gehäusebasismaterial | PA UL 94 V0 |
| Montageart | TS 35 |
| Schutzart | IP20 |
| Steckzyklen | 1000 |
| Steckverbinder Norm | IEC 61754-20 |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_104112) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8947010000) |
| Anwenderdokumentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_91194) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschüren |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC000313 |
| ETIM 7.0 | EC000313 |
| ETIM 8.0 | EC000313 |
| ETIM 9.0 | EC000313 |
| ECLASS 9.0 | 27-44-03-20 |
| ECLASS 9.1 | 19-17-01-25 |
| ECLASS 10.0 | 27-44-03-20 |
| ECLASS 11.0 | 27-44-03-20 |
| ECLASS 12.0 | 27-44-03-20 |
| ECLASS 13.0 | 27-44-03-20 |
| ECLASS 14.0 | 27-44-03-20 |
| ROHS | Konform |
