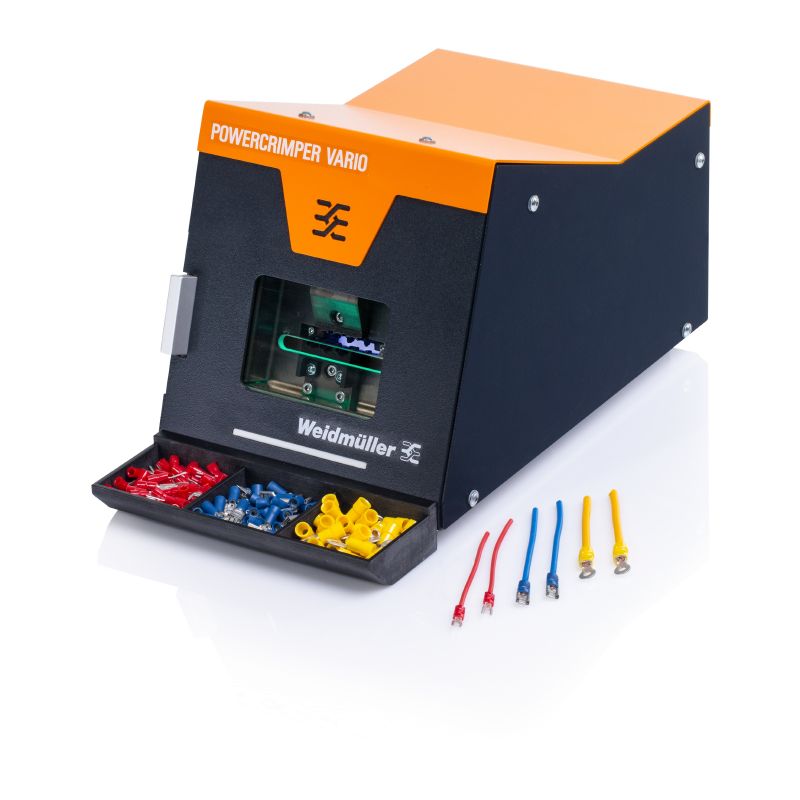

POWERCRIMPER VARIO
POWERCRIMPER VARIO
POWERCRIMPER VARIO

POWERCRIMPER VARIO

Automatic machines, Crimping machine

Produkt ID 3032890000
Download datablad Produktdownloads
Tilbehør 5 Reservedele 5 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Automatic crimping Classifications

Approvals

ROHS
Conform

General ordering data

Version
Automatic machines, Crimping machine
Order No.
3032890000
Type
POWERCRIMPER VARIO
GTIN (EAN)
4099986985391
Qty.
1 Styk

Dimensions and weights

Depth
300 mm
Depth (inches)
11,811 inch
Height
220 mm
Height (inches)
8,661 inch
Width
190 mm
Width (inches)
7,48 inch
Net weight
9 000 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6a, 6b, 6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
d2df479e-2b79-4e98-adc7-b03577df98ae

Automatic crimping

Area di crimpatura
0.5 - 6.00 mm²
Collegamento elettrico
100-240 V / 50/60 Hz / 100 VA
Consumables
With and without plastic collar
loose cable lugs
for loose part insulated cable lugs
Crimping length
12 mm
Crimping range, max.
6 mm²
Crimping range, min.
0,5 mm²
Doba pulzu
approx. 1 s
Drive
electrical
Wire end ferrules cross-section, max.
6 mm²
Wire end ferrules cross-section, min.
0,5 mm²
삽입 길이
38 mm

Classifications

ETIM 8.0
EC002778
ETIM 9.0
EC002778
ETIM 10.0
EC002778
ECLASS 14.0
17-13-01-01
ECLASS 15.0
17-13-01-01
