SM 36/18-30 MM RT
SM 36/18-30 MM RT

SM 36/18-30 MM RT

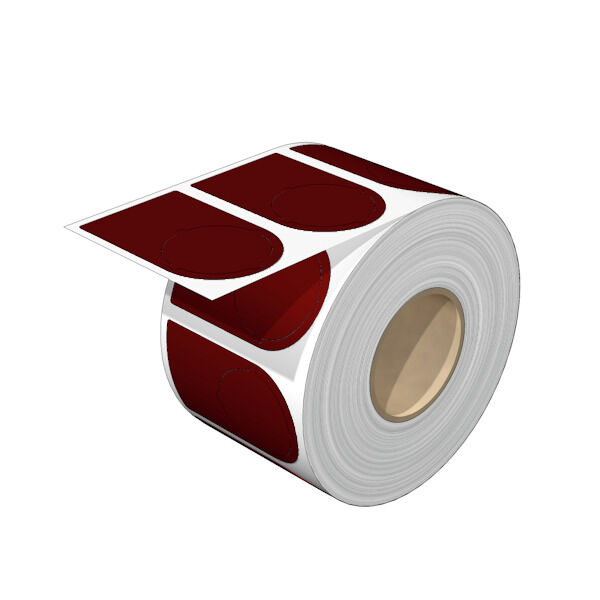

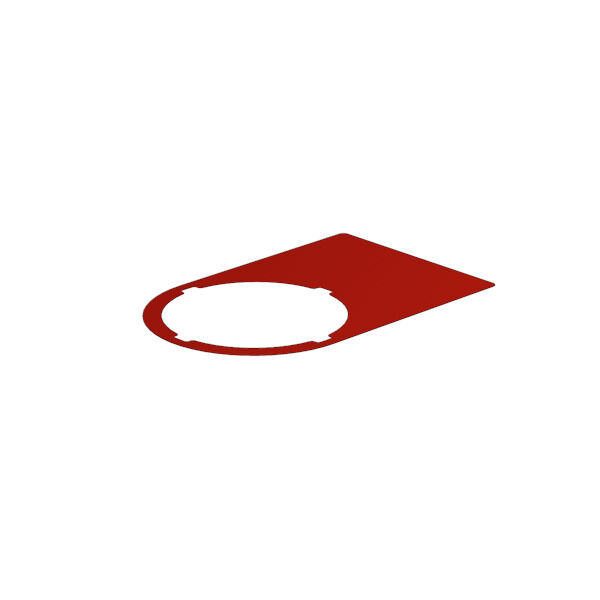

SwitchMark, Device markers, 56 x 36 mm, red

Produkt ID 2006160000
Download datablad Engineering-support Produktdownloads
Tilbehør 3 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

버전
SwitchMark, Device markers, 56 x 36 mm, red
N. d’ordine
2006160000
유형
SM 36/18-30 MM RT
GTIN (EAN)
4050118391169
Qty.
1.000 Styk

Dimensions and weights

깊이
0,1 mm
Depth (inches)
0,004 inch
높이
56 mm
Height (inches)
2,205 inch
너비
36 mm
Width (inches)
1,417 inch
Diameter
30 mm
Net weight
0,56 g

Temperatures

Operating temperature range
-40...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Approval acc. to UL 969
Yes
Basic material
Polyester
Bredd
36 mm
Brännbarhetsklass enligt UL 94
V-0
Colour
red
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Klej
Acrylate adhesive
Operating temperature range
-40...120 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Size of labelling field
18 x 36 mm
Temperaturområde för användning max.
120 °C
Исполнение
halogen-free
Self-adhesive

Device markers

Diameter
30 mm
Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
