Interface, RS, 2 x KS (40P), LM2NZF 5.08mm

Nr. produktu 1371500000
Pobierz kartę katalogową Tuotelataukset
Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version

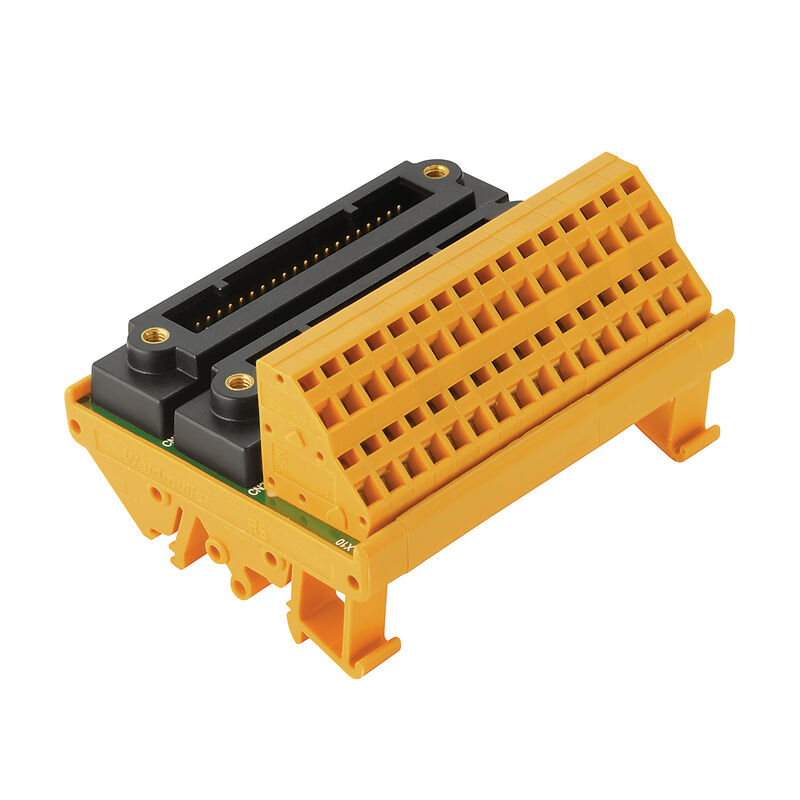

Interface, RS, 2 x KS (40P), LM2NZF 5.08mm
Order No.
1371500000
Type
TBY-C3-AIO-2KS-Z
GTIN (EAN)
4050118202212
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1770678000000)/

Dimensions and weights

Depth
52 mm
Depth (inches)
2,047 inch
Height
70 mm
Height (inches)
2,756 inch
Width
90 mm
Width (inches)
3,543 inch
Nettovikt
111,29 g

Temperatures

Storage temperature
-40...85 °C
Operating temperature
-25...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
f9d70a48-3ece-4d71-ba78-a0d617266ffc

General data

LED status display per channel
No
채널별 차단
No
Type of test point
No
Contactor
No
Biztosíték / csatorna
No
LED status of the supply voltage
No
Power supply fuse
No

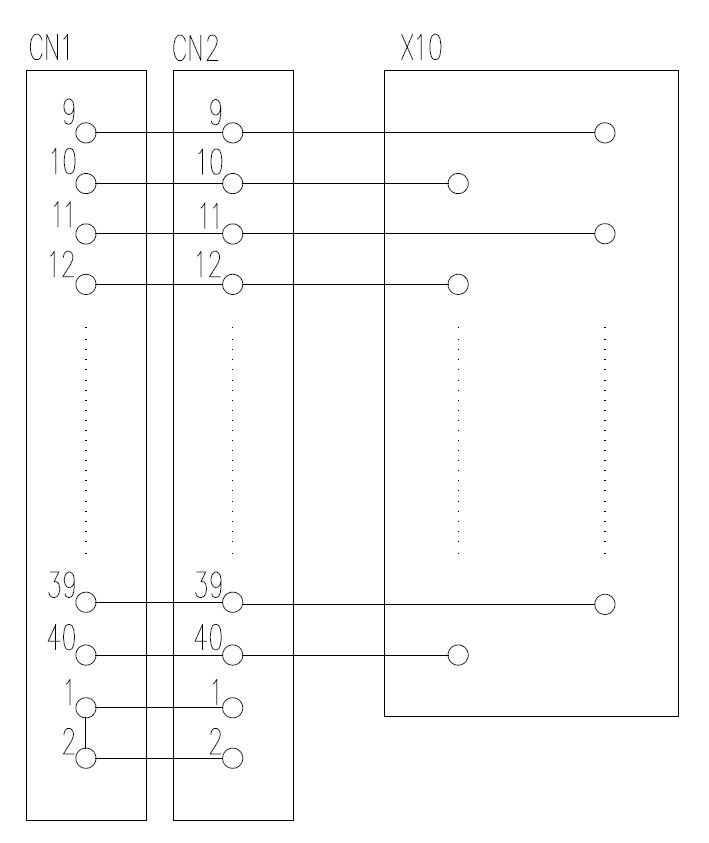

Connection data

Connection (field side)
LM2NZF 5.08mm
Connection on control side
2 x KS (40P)
Number of poles (control side)
40-pole plug

Ratings data

Üzemi feszültség
50 V AC / 70 V DC
Max. current per channel
1 A

Insulation coordination (EN50178)

Tension nominale
< 50 V AC
Categoría de sobretensión
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0,8 kV
Zkušební napětí izolace AC
0,35 kV

Connection field

Clamping range, max.
2,5 mm²
Clamping range, min.
0,13 mm²
Flexible with sleeve, max.
1,5 mm²
Flexible with sleeve, min.
0,25 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Max. wire cross-section, AWG
AWG 14
Min. wire cross-section, AWG
AWG 24
Sleeve with plastic collar, max.
1,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Solid, min. H05(07) V-U
0,2 mm²
Stripping length
7,5 mm
Type of connection
Tension-clamp connection

Supply connection

Type de connexion
Tension-clamp connection
Sección de embornado, mín.
0,13 mm²
Clamping range, max.
2,5 mm²
Solid, min. H05(07) V-U
0,2 mm²
Pevné, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flessibile, max. H05(07) V-K
1,5 mm²
Flexible with sleeve, max.
1,5 mm²
Flexibel med hylsa, min.
0,25 mm²
Наконечник с изоляцией, макс.
1,5 mm²
Wire cross-section, min. AWG
AWG 14
Wire cross-section, max. AWG
AWG 24
Stripping length
7,5 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
