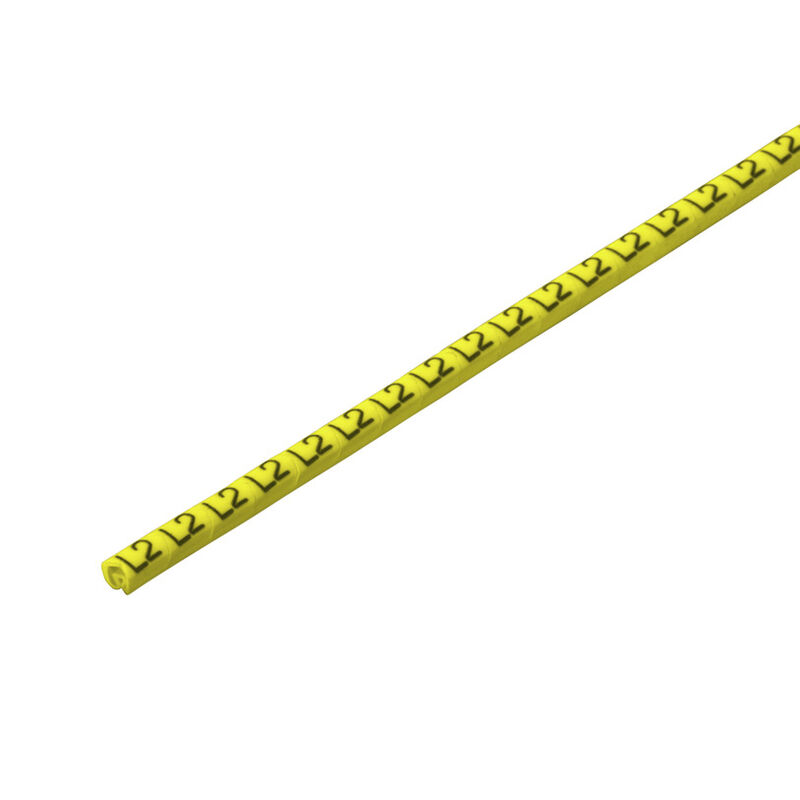

CLI C 02-6 GE/SW L2 CD

CableLine, Conductor and cable markers, 1.3 - 3 mm, 6 x 3.4 mm, yellow

Item No. 1568241729

Version	CableLine, Conductor and cable markers, 1.3 - 3 mm, 6 x 3.4 mm, yellow
Order No.	1568241729
Type	CLI C 02-6 GE/SW L2 CD
GTIN (EAN)	4032248450572
Qty.	250 items

Operating temperature range

-30...80 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Colour	yellow
Colour of printing	black
Halogen	Yes
Insulation cross-section, max.	3
Material	PVC, soft, without Cadmium
Material colour according to resistance code	4
Number of markers per combination	1 Reel = Conductor and cable markers
Number of markers per packaging unit	Form of supply: Reel
Operating temperature range	-30...80 °C
Operating temperature range, max.	80 °C
Operating temperature range, min.	-30 °C
Orientation of print	horizontal
Printed characters	Mixed characters
Printing	L2
Printing method	hot-embossing
Recommended industries	Process Machinery
Type of printing	Standard
UL 94 flammability rating	V-0
Version	CD
Width	3.4 mm

Conductor cross-section, max.	1.5 mm²
Conductor cross-section, min.	0.2 mm²
Conductor O.D.	1.3 - 3 mm
Conductor O.D., max.	3 mm
Conductor O.D., min.	1.3 mm
Cross-section for connected wire	0.2 - 1.5 mm²
Halogen	Yes

Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1568241729)
Product Change Notification	[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687) [PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

ROHS

Conform
