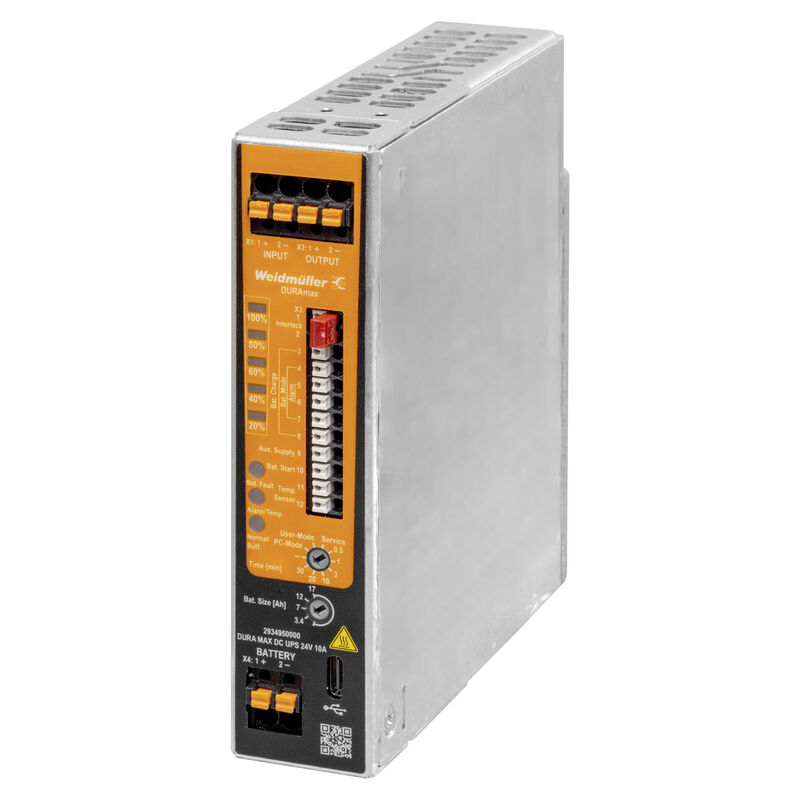

DURA MAX DC UPS 24V 10A

DURA MAX DC UPS 24V 10A

This product is not yet available.

UPS control unit, 24 V

Item No. 2934950000
Download data sheet Engineering Support Product Downloads
Related products 6
Approvals General ordering data Dimensions and weights Temperatures Battery module Integrated battery charger Operating interfaces and control inputs Input Output General data EMC / shock / vibration Insulation coordination Electrical safety (applied standards) Connection data (input) Connection data (output) Connection data (signal) Signalling Classifications

Approvals

ROHS
Conform

General ordering data

Version
UPS control unit, 24 V
Order No.
2934950000
Type
DURA MAX DC UPS 24V 10A
GTIN (EAN)
4099986684096
Qty.
1 items

Dimensions and weights

Depth
125 mm
Depth (inches)
4.921 inch
Height
130 mm
Height (inches)
5.118 inch
Width
30 mm
Width (inches)
1.181 inch
Net weight
483 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Humidity
5...95 %, no condensation

Battery module

Nominal voltage
24 V

Integrated battery charger

Battery availability test
every minute
Charging feature
IU characteristic curve
Charging voltage (temperature compensated)
27, 48 V @ 20°C
Temperature coefficient
- 48 mV / °C

Operating interfaces and control inputs

Remote disconnection (Interlock)
Yes
Selector switch battery
3.4 Ah
12 Ah
7 Ah
1.2 Ah
Selector switch buffer times
0.5 min
1 min
3 min
10 min
20 min
30 min
Service
Temperature probe
NTC 100 kΩ

Input

DC current consumption
<0.2 A @ no load
DC input voltage range
18…30 V DC
Input current
<10.2 A
Input fuse (internal)
Yes
Inrush Current Limitation
<28 A
Rated input voltage
24 V DC
Wire connection method
PUSH IN

Output

Battery charging current
0.5 A (3.4 AH)
Output current, max.
10 A
Output power
240 W
Output voltage type
DC
Parallel connection option
yes, max. 2
Protection against inverse voltage
Yes
Rated output voltage
24 V DC
Temperature coefficient
- 48 mV / °C
Temperature probe
NTC 100 kΩ
Wire connection method
PUSH IN

General data

Buffer times
Depending on the connected battery
Clip-in foot
metal
Degree of efficiency
> 98%
Housing version
Metal, corrosion resistant
Humidity
5...95 %, no condensation
Mounting position, installation notice
On TS 35 mounting rail, 50 mm clearance above and below for free air supply.
MTBF
  • Operating time (hours), min.:
    500,000 h
  • Ambient temperature:
    25 °C
  • Input voltage:
    24 V
  • Duty cycle:
    100 %
Power loss
<10 W
Protection against reverse voltages from the load
≤ 35 V DC
Protection degree
IP20
Short-circuit protection
Yes
Storage medium
3.4 Ah
12 Ah
Selectable with rotary switch
1.2 Ah
7 Ah
Weight
500 g

EMC / shock / vibration

Interference immunity test acc. to
EN 61000-4-2 (ESD)/EN 61000-4-3 and EN 61000-4-8 (fields)/EN 61000-4-4 (burst)/EN 61000-4-5 (surge)/EN 61000-4-6 (conducted)/EN 61000-4-11 (dips)
Noise emission in accordance with EN55032
Class B
Shock resistance IEC 60068-2-27
30 g in all directions
Vibration resistance IEC 60068-2-6
2.3 g
4 g

Insulation coordination

Insulation voltage
1 kV DC
Pollution severity
2
Protection class
III

Electrical safety (applied standards)

Electrical machine equipment
Acc. to EN60204
For use with electronic equipment
Acc. to EN50178
Safety transformers for switch-mode power supplies
According to EN 61558-2-16

Connection data (input)

Conductor cross-section, AWG/kcmil , max.
14 AWG
Conductor cross-section, AWG/kcmil , min.
16 AWG
Conductor cross-section, flexible , min.
1.5 mm²
Conductor cross-section, rigid , max.
2.5 mm²
Conductor cross-section, rigid , min.
1.5 mm²
Reverse polarity protection
Yes
Wire connection cross section, flexible (input), max.
2.5 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.
14 AWG
Conductor cross-section, AWG/kcmil , min.
16 AWG
Conductor cross-section, flexible , max.
2.5 mm²
Conductor cross-section, flexible , min.
1.5 mm²
Conductor cross-section, rigid , max.
2.5 mm²
Conductor cross-section, rigid , min.
1.5 mm²
Reverse polarity protection
Yes

Connection data (signal)

Wire connection cross-section, flexible (signal), max.
1.5 mm²
Wire connection cross-section, flexible (signal), min.
0.2 mm²
Wire connection method
PUSH IN
Wire cross-section, AWG/kcmil , max.
16
Wire cross-section, AWG/kcmil , min.
25 mm²
Wire cross-section, solid , max.
1.5 mm²
Wire cross-section, solid , min.
0.2 mm²

Signalling

Floating contact
Yes
Status indicator
LED red: Battery fault
LED yellow: Alarm/ Temperature Sensor fault
LED green: Normal mode
LED green flashing: Buffer mode
LED off: no error

Classifications

ETIM 8.0
EC002850
ETIM 9.0
EC002850
ETIM 10.0
EC002850
ECLASS 14.0
27-04-06-92
ECLASS 15.0
27-04-06-92
