Properties

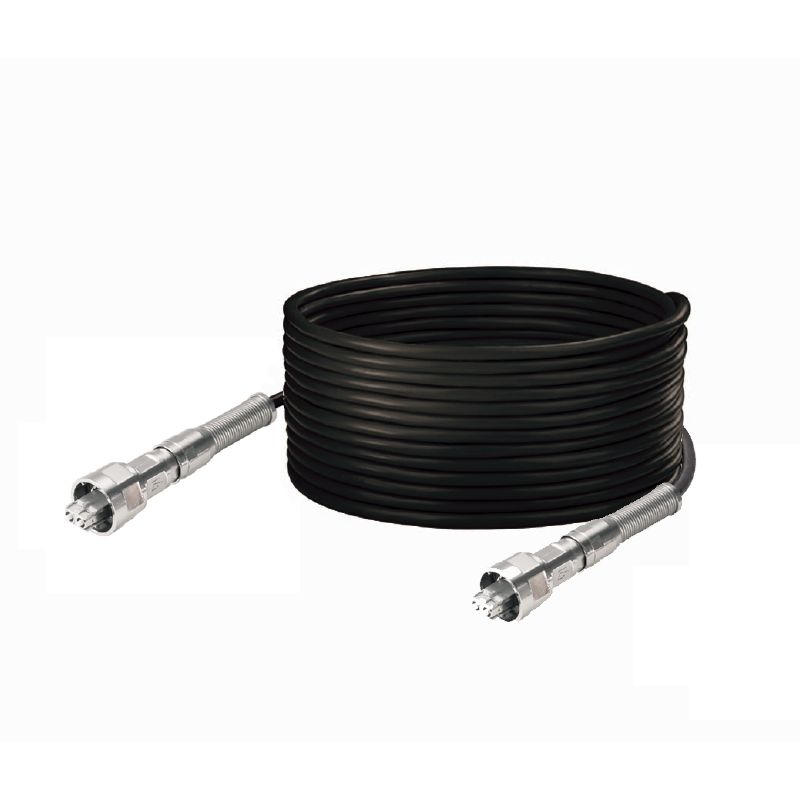

| Version | Dragline cable, SC IP 67 bayonet V01 metal, SC IP 67 bayonet V01 metal, 62.5 µm, PUR, 200 m |
| Order No. | 1318012000 |
| Type | IE-FM6C2UE0200MSD1SD1X |
| GTIN (EAN) | 4050118127522 |
| Qty. | 1 items |
| Length | 200 m |
| Length (inches) | 7,874.016 inch |
| Net weight | 10,300 g |
| Storage temperature | -55 °C...85 °C |
| Operating temperature | -40 °C...85 |
| Installation temperature | -55 °C...60 °C |
| REACH SVHC | Lead 7439-92-1 |
| Connector left | SC IP 67 bayonet V01 metal |
| Connector right | SC IP 67 bayonet V01 metal |
| Material sheath | PUR |
| Product type | Dragline cable |
| Sheathing colour | black |
| Cable layout | Break-out dragline |
| Core diameter | 62.5 µm |
| Material sheath | PUR |
| Primary coating | 245 µm |
| Sheath diameter | 7.5–8 mm |
| Sheathing colour | black |
| Bending cycles | 100,000 |
| Min. bending radius, once only | 25 mm |
| Min. bending radius, repetitive | 70 mm |
| Plug left | SC, IP67, male contact, straight, V1 Bayonett, plug, Zinc diecast, unshielded |
| Plug right | SC, IP67, male contact, straight, V1 Bayonett, plug, Zinc diecast, unshielded |
| Plug left | SC, IP67, male contact, straight, V1 Bayonett, plug, Zinc diecast, unshielded |
| Plug right | SC, IP67, male contact, straight, V1 Bayonett, plug, Zinc diecast, unshielded |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ROHS | Conform |
