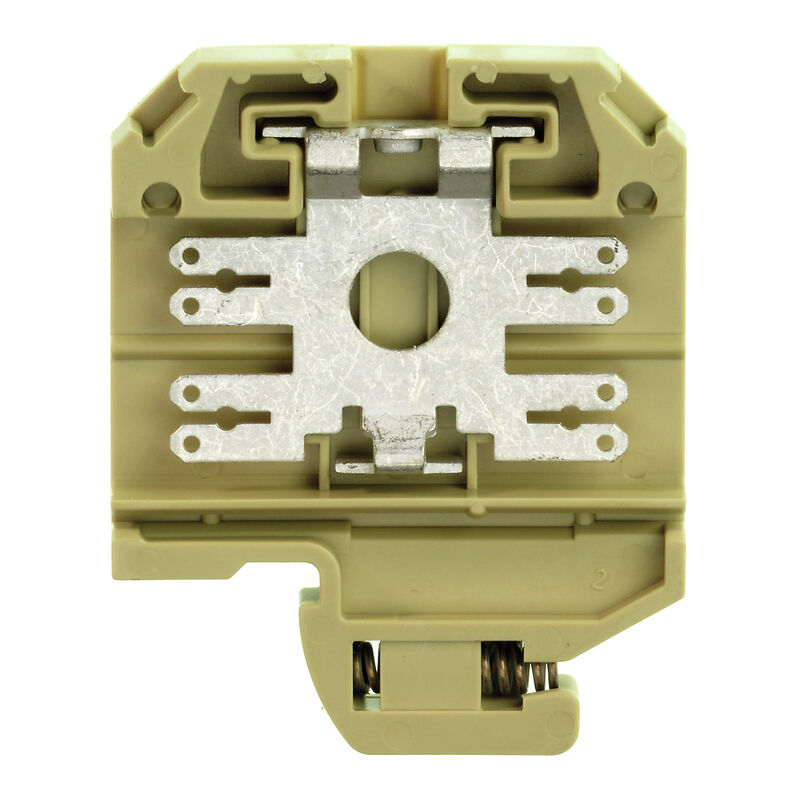

SAK 4 SS 6.3/2.8

Feed-through terminal block, Flat-blade connection, beige / yellow, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66, 100 °C

Item No. 0479660000

Properties

General ordering data

Version	Feed-through terminal block, Flat-blade connection, beige / yellow, 2.5 mm², 20 A, 500 V, Number of connections: 4, Number of levels: 2, TS 32, V-2, PA 66, 100 °C
Order No.	0479660000
Type	SAK 4 SS 6.3/2.8
GTIN (EAN)	4008190185527
Qty.	100 items

Dimensions and weights

Depth	51.5 mm
Depth (inches)	2.028 inch
Height	40 mm
Height (inches)	1.575 inch
Width	6.5 mm
Width (inches)	0.256 inch
Net weight	8.57 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	PA 66
Colour	beige / yellow
UL 94 flammability rating	V-2

System specifications

Version	With cable lug connection F2.8 With cable lug connection F6.3 for screwable cross-connection One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	2
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 32
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Installation advice	Direct mounting
Number of similar terminals	1
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Flat-blade connection

Conductors for clamping (rated connection)

Clamping range, max.	2.5 mm²
Clamping range, min.	0.5 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	on side
Number of connections	4
Type of connection	Flat-blade connection
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, max.	2.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

CSA rating data

Certificate No. (CSA)	12400-129
Current size C (CSA)	13 A
Voltage size C (CSA)	300 V
Wire cross section max. (CSA)	14 AWG
Wire cross section min. (CSA)	18 AWG

Installation advice	Direct mounting
Rail	TS 32
Standards	IEC 61210 In accordance with IEC 60947-7-1

Other connections

Rated cross-section spade connector 2.8 mm	1 mm²
Rated cross-section spade connector 6.3 mm	2.5 mm²

Rated cross-section	2.5 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	20 A
Current at maximum wires	20 A
Standards	IEC 61210 In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	12 AWG
Conductor size Factory wiring min. (UR)	26 AWG
Conductor size Field wiring max. (UR)	12 AWG
Conductor size Field wiring min. (UR)	26 AWG
Current size C (UR)	25 A
Voltage size C (UR)	300 V
