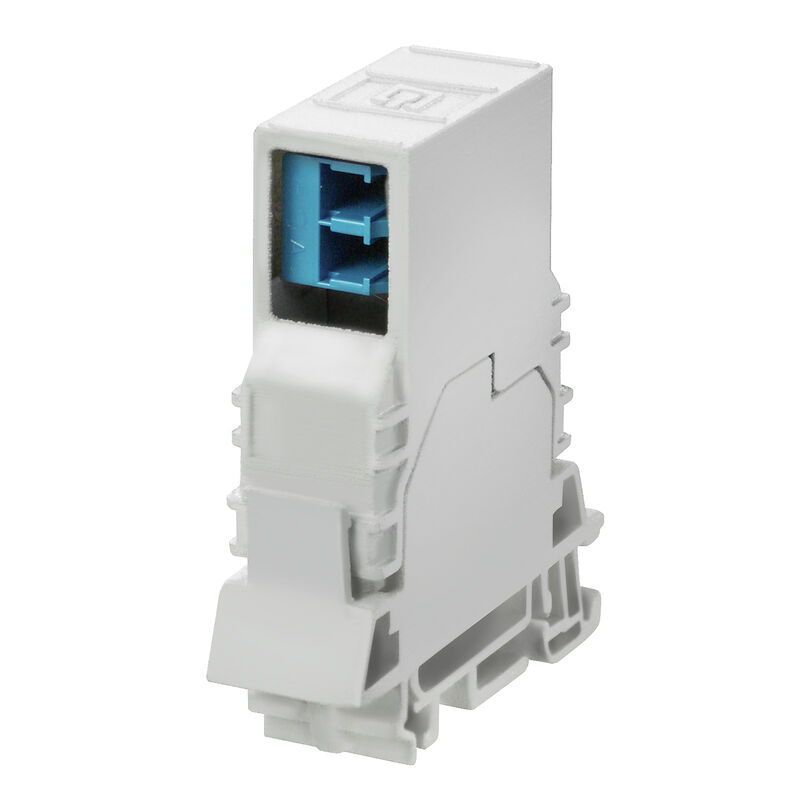

IE-TO-LCD-SM

Mounting rail outlet, fibre-optic, LC Duplex, Singlemode, IP20

Tuotteen tunnus 8947020000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 On lisävaruste 10 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Classifications

Approvals

ROHS
Conform

General ordering data

版本
Mounting rail outlet, fibre-optic, LC Duplex, Singlemode, IP20
Order No.
8947020000
Typ
IE-TO-LCD-SM
GTIN (EAN)
4032248735037
Qty.
10 items

Dimensions and weights

Net weight
30,096 g

Temperatures

Drifttemperatur
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6a
REACH SVHC
Lead 7439-92-1
SCIP
d804b481-7e9c-49d7-824d-c29fa84add98

General data

Colori
Light Grey
Connection 2
LC Duplex
Ház fő anyaga
PA UL 94 V0
Tipo di montaggio
TS 35
プラギング回数
1000
保護度合い
IP20
결선 1
LC Duplex
삽입 손실
≤ 0.5 dB
파이버 유형
Singlemode

General standards

Connector standard
IEC 61754-20

Classifications

ETIM 8.0
EC000313
ETIM 9.0
EC000313
ETIM 10.0
EC000313
ECLASS 14.0
27-44-03-20
ECLASS 15.0
27-44-03-20
