Interface, RS, 2 x KS (40P), LM2NZF 5.08mm

Tuotteen tunnus 1371170000
Lataa tietosivu Product Downloads
Samankaltaiset tuotteet 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connection data Ratings data Insulation coordination (EN50178) Connection field Supply connection Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versión
Interface, RS, 2 x KS (40P), LM2NZF 5.08mm
Best.-Nr.
1371170000
Tipo
TBY-SAI143-2KS-Z
GTIN (EAN)
4050118205893
Qty.
1 items

Dimensions and weights

Profundidad
52 mm
Depth (inches)
2,047 inch
Altura
70 mm
Height (inches)
2,756 inch
Anchura
90 mm
Width (inches)
3,543 inch
Net weight
160,71 g

Temperatures

Température de stockage
-40...85 °C
Temperatura d'esercizio
-25...70 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
f9d70a48-3ece-4d71-ba78-a0d617266ffc

General data

wskaźnik stanu LED na kanał
No
Frånkoppling per kanal
No
Type of test point
No
Contactor
No
Fuse per channel
No
LED status of the supply voltage
No
Предохранитель в цепи электропитания
No

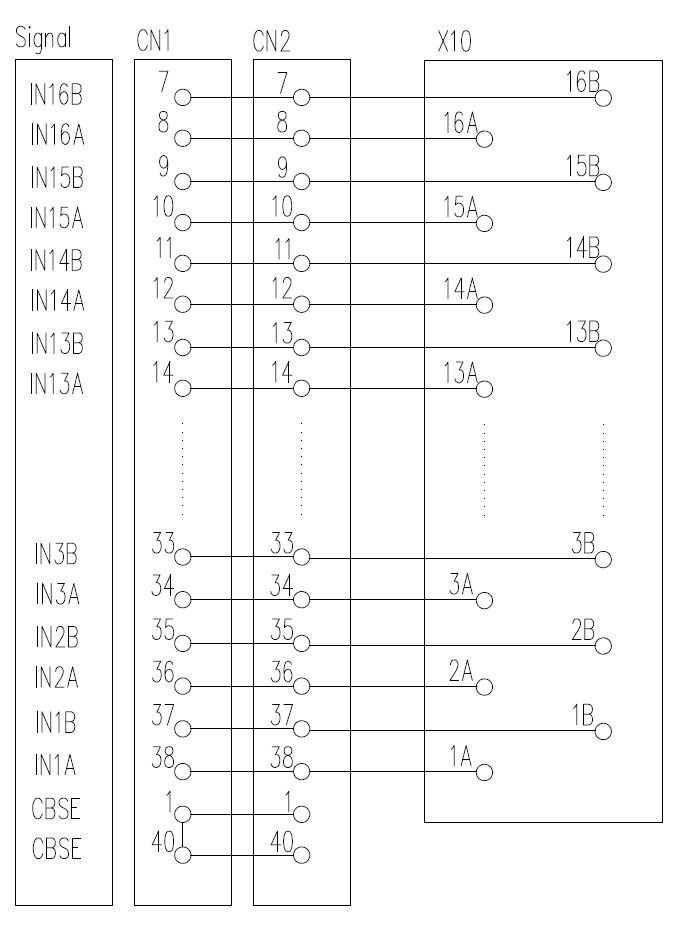

Connection data

Connection (field side)
LM2NZF 5.08mm
Connection on control side
2 x KS (40P)
Number of poles (control side)
40-pole plug

Ratings data

Operating voltage
50 V AC / 70 V DC
Max. current for common pole
1 A
Max. current per channel
1 A

Insulation coordination (EN50178)

Rated insulation voltage
< 50 V AC
Surge voltage category
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
0,8 kV
Insulation test voltage AC
0,35 kV

Connection field

Clamping range, max.
2,5 mm²
Clamping range, min.
0,13 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible with sleeve, min.
0,5 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Max. wire cross-section, AWG
AWG 14
Min. wire cross-section, AWG
AWG 24
Sleeve with plastic collar, max.
2,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Solid, min. H05(07) V-U
0,2 mm²
Stripping length
7,5 mm
Type of connection
Tension-clamp connection

Supply connection

Type of connection
Tension-clamp connection
Clamping range, min.
0,13 mm²
Clamping range, max.
2,5 mm²
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
Flexible with sleeve, max.
1,5 mm²
Flexible with sleeve, min.
0,25 mm²
Ferrule with plastic collar, max.
1,5 mm²
Wire cross-section, min. AWG
AWG 14
Wire cross-section, max. AWG
AWG 24
Stripping length
7,5 mm

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
