| Version | Potential distributor |
| Order No. | 2495080000 |

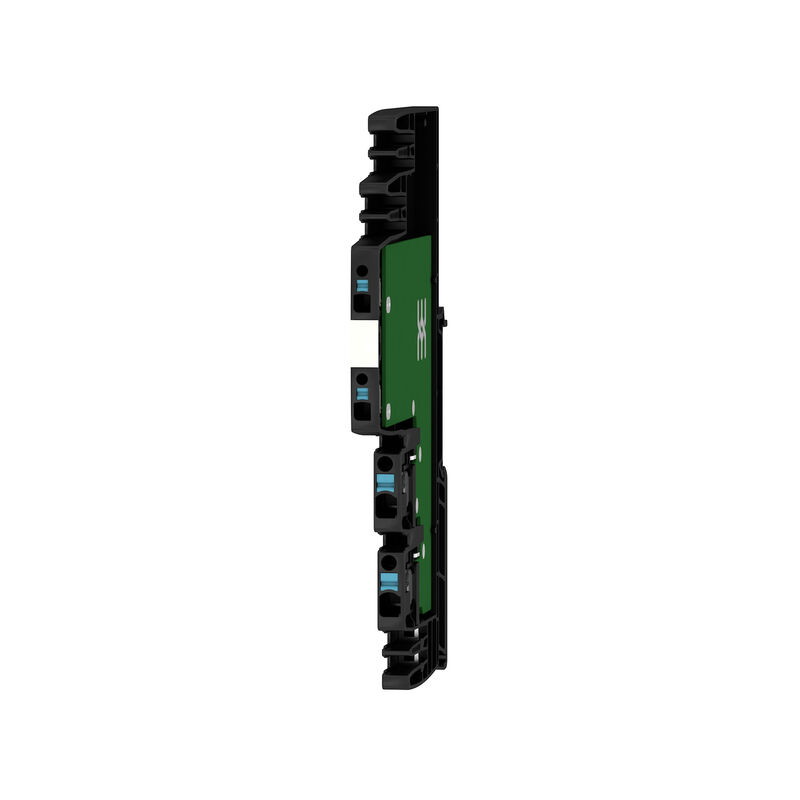

| Type | AMG XMD EX |
| GTIN (EAN) | 4050118504774 |
| Qty. | 10 items |
| Depth | 96,5 mm |
| Depth (inches) | 3,799 inch |
| Height | 125 mm |
| Height (inches) | 4,921 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 27,5 g |
| Connection system | PUSH IN |
| Conformal coating | Yes |
| Current load per contact point | 12 A |
| Protection degree | IP20 |
| Total current load per potential | 24 A |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 26 AWG |
| Conductor cross-section, flexible , max. | 2,5 mm² |
| Conductor cross-section, flexible , min. | 0,14 mm² |
| Conductor cross-section, rigid , max. | 2,5 mm² |
| Conductor cross-section, rigid , min. | 0,14 mm² |
| Connection system | PUSH IN |
| Number of terminals |

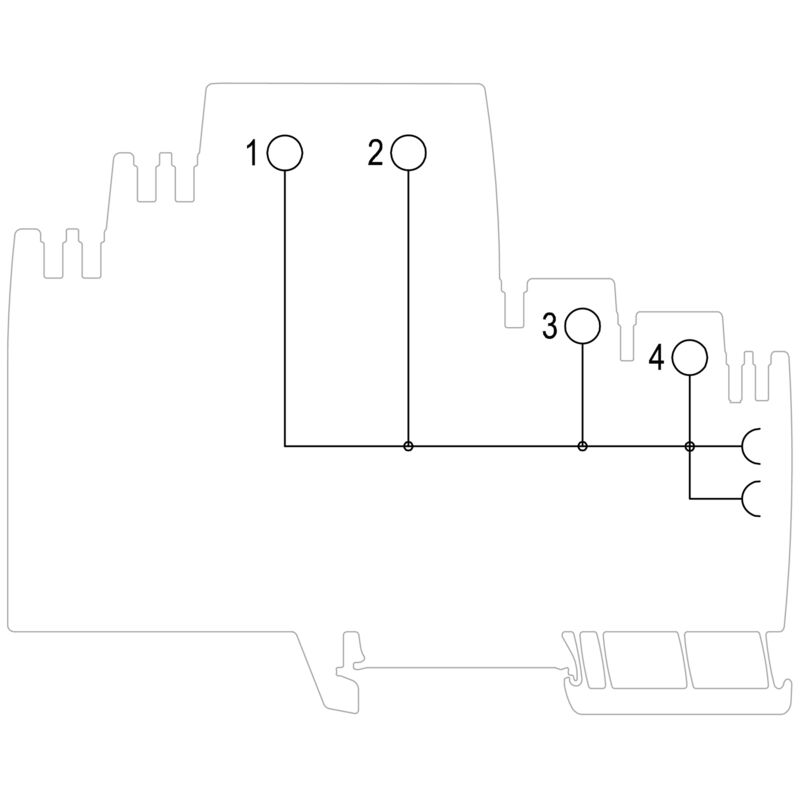

4 (4x GND)
2 x 1.5 mm² 2 x 2.5 mm² |
| Screwdriver blade | 0.6 x 3.5 |
| Certificate No. (ATEX) | DEMKO17ATEX1870X |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
| Institute (cULus) | CULUS |
| Institute (cULusEX) | CULUSEX |
| Institute(ATEX) | DEMKOATEX |
| Approval/Certificate/Document of Conformity |
[MaxGuard AMG ELM UL 508 CSA C22.2.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306123)
[MaxGuard EX ATEX .pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306140) [BV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308051) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308052) [ABS Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308054) [RINA Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_310593) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85823) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_314088) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39776) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2495080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2495080000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2495080000&norm=0) |
| User Documentation |
[Manual_maxGUARD](https://mdcop.weidmueller.com/mediadelivery/asset/900_43594)
[Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_68846) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| Approvals |              |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
