Ominaisuudet
| Version | Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 64 mm, Width: 126 mm, Depth: 24.2 mm, -40 °C…120 °C, IP66 |
| Order No. | 2891530000 |
| Type | CABTITE FRFT 16/8 SET |
| GTIN (EAN) | 4064675880622 |
| Qty. | 1 items |
| Depth | 24,2 mm |
| Depth (inches) | 0,953 inch |
| Height | 64 mm |
| Height (inches) | 2,52 inch |
| Width | 126 mm |
| Width (inches) | 4,961 inch |
| Net weight | 89,1 g |
| Operating temperature | -40 °C...120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Halogen |
No
halogen-free |
| Material | Polyamide, glass fibre-reinforced |
| Opening length | 91 mm |
| Opening width | 36 mm |
| Protection class (UL) |
Type 12
Type 4X |
| Protection degree | IP66 |
| Sealing | TPE |

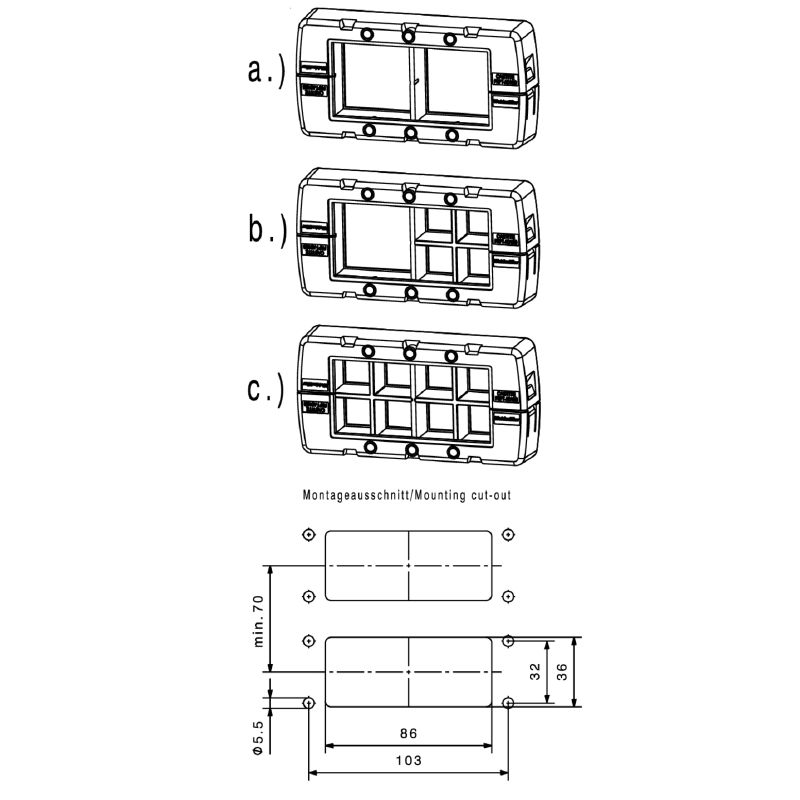

| Sealing element | 2 large sealing elements or 4 small sealing elements or 1 large sealing element and 4 small sealing elements or 8 small sealing elements |
| Silicone | No |
| Tightening torque | 3 Nm |
| UL 94 flammability rating | V-0 |
| Version | in closed state |
| Product information | The set is made from UR-certified individual parts, so the approval is also valid for the set. Fixing material for mounting on the enclosure or control cabinet, is not included. |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Cable entry system](https://mdcop.weidmueller.com/mediadelivery/asset/900_252380) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293226) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2891530000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2891530000) |
| User Documentation | [INSTR CABTITE FRFT D/EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_268267) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002624 |
| ETIM 7.0 | EC002624 |
| ETIM 8.0 | EC002624 |
| ETIM 9.0 | EC002624 |
| ECLASS 9.0 | 27-18-28-15 |
| ECLASS 9.1 | 27-18-92-65 |
| ECLASS 10.0 | 27-18-28-15 |
| ECLASS 11.0 | 27-18-28-15 |
| ECLASS 12.0 | 27-18-28-15 |
| ECLASS 13.0 | 27-18-28-15 |
| ECLASS 14.0 | 27-18-28-15 |
| Approvals |  |
| ROHS | Conform |
