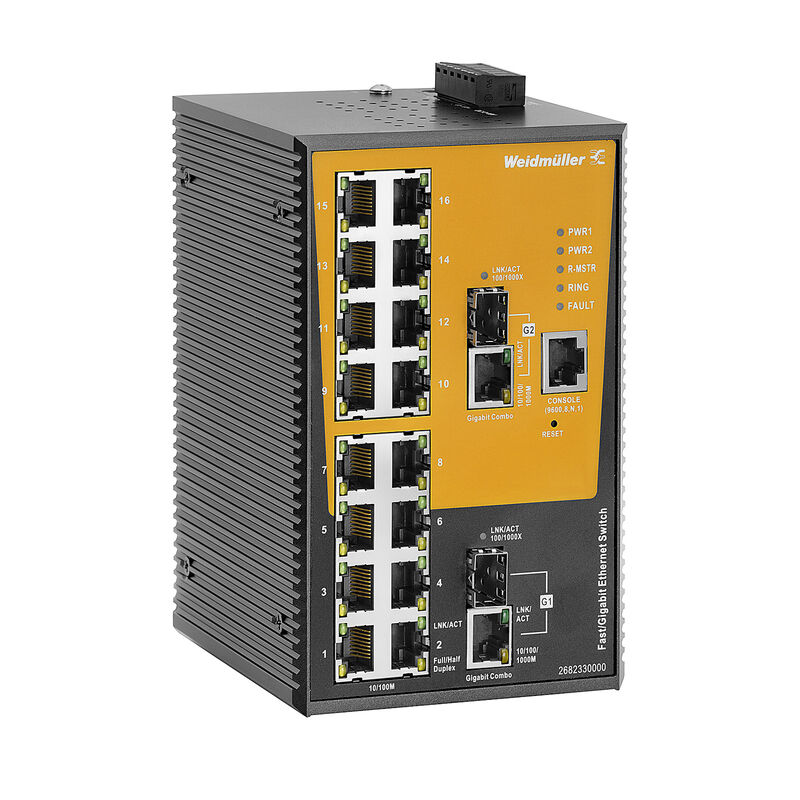

IE-SW-AL18M-16TX-2GC

Lataa tietosivu

IE-SW-AL18M-16TX-2GC

Network switch, managed, Fast/Gigabit Ethernet, Number of ports: 16x RJ45 10/100BaseT(X), 2x combo-ports (10/100/1000BaseT(X) or 100/1000BaseSFP), IP30, -40 °C...75 °C

Tuotteen tunnus 2682330000

Ominaisuudet

General ordering data

Version	Network switch, managed, Fast/Gigabit Ethernet, Number of ports: 16x RJ45 10/100BaseT(X), 2x combo-ports (10/100/1000BaseT(X) or 100/1000BaseSFP), IP30, -40 °C...75 °C
Order No.	2682330000
Type	IE-SW-AL18M-16TX-2GC
GTIN (EAN)	4050118692389
Qty.	1 items

Dimensions and weights

Depth	108,5 mm
Depth (inches)	4,272 inch
Height	154 mm
Height (inches)	6,063 inch
Width	96,4 mm
Width (inches)	3,795 inch
Net weight	1 363 g

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...75 °C
Humidity	5 to 95 % (non-condensing)

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	9229992a-00b9-4096-8962-200a7f33e289

PN48 ISwitch Filter criteria

Highest speed	Gigabit Ethernet
Industrial protocol support	Modbus/TCP EtherNet/IP PROFINET CC-A
Input voltage type	DC
Mounting type	DIN- Rail
Type of switch	Managed

EMC conformity and approvals

EMC standards	EN 55032 EN 55024 FCC Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 Vrms
Free fall	According to IEC 60068-2-31
Safety standard	SELV according to EN 62368-1 UL 61010-1 UL 61010-2-201
Shock	according to IEC 60068-2-27
Vibration	according to IEC 60068-2-6

Environmental conditions

Humidity	5 to 95 % (non-condensing)
Operating altitude	Altitude, max.: 2 000 m Note: in acc. with UL Altitude, max.: 6 000 m Note: for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.	75 °C
Operating temperature, min.	−40 °C
Storage temperature, max.	85 °C
Storage temperature, min.	−40 °C

Time interval

5 years

Alarm contact	1 relay output with a current capacity of 1 A at 24 V DC
Console port interface	RS-232 (RJ45 connector)
Fibre-optic ports	100/1000Base SFP Slot
Function reset button	<5 sec: System reboot >5 sec: Factory default
Number of ports	16x RJ45 10/100BaseT(X) 2x combo-ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
RJ45 ports	10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port

Management features

Device configuration	Webbrowser (HTTP/HTTPS) SNMP v1/v2c/v3 Local serial console port (RS-232 via RJ-45 port) Upload of a configuration file via web-interface or TFTP-Server Command Line Interface (Telnet/SSH)
Monitoring function	SNMP v1/v2c/v3 Link Layer Discovery Protocol (LLDP) Port mirroring Port statistics Port monitoring Syslog RMON (Remote monitoring) Event based warning via E-Mail Event based warning via relay Event based warning via SNMP trap
Network redundancy	Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) Multiple Spanning Tree Protocol (MSTP) O-Ring (recovery time <10/30 ms at Fast/Gigabit Ethernet interface) O-Chain (recovery time <10/30 ms at Fast/Gigabit Ethernet interface) Link Aggregation Control Protocol (LACP) Fast recovery
Network traffic filter	Quality of Service (QoS) Class of Service (CoS) Type of Service (ToS) Differentiated Services Code Point (DSCP) Port based VLAN Tag based VLAN GVRP (GARP VLAN Registration Protocol) IGMP v2/v3 Multicast VLAN Registration (MVR) Traffic Rate Limiting
IP-address management	Static DHCP-Client DHCP-Server (port based, pool-based) DHCP Option 82 DHCP-Relay
Security functions	VLAN segmentation Enable/disable ports TACACS+ and IEEE 802.1X User Authentication Access control (port based via IEEE 802.1X) Access control list (IP-based) Access control list (MAC-based) Management access security via secure IP-list and configuration of allowed access methods (web-interface, telnet, SSH) Loop protection
Time synchronization management	NTP server SNTP client
Industrial protocol support	Modbus/TCP slave PROFINET device acc. to conformance class A

MTBF	According to Standard: Telcordia SR-332 Operating time (hours), min.: 600 504 h

Connection type	1 removable 6-pin terminal block
Current consumption	Voltage: 12 V Current: 1,2 A Voltage: 24 V Current: 0,6 A Voltage: 48 V Current: 0,3 A
Overload current protection	Yes
Reverse polarity protection	Yes
Voltage supply	12/24/48 V DC 2 redundant inputs
Voltage supply range	Voltage type: DC Voltage, min.: 10,8 V Voltage, max.: 52,8 V

Switch characteristics

Bandwidth backplane	7,2 Gbit/s
IGMP-Groups	1024
MAC table size	8 K
Max. number of available VLANs	4095
Packet buffer size	1 Mbit
Priority queues	4
VLAN-ID max	4094
VLAN-ID min	1

Housing main material	Metal
Protection degree	IP30
Speed	Fast/Gigabit Ethernet
Switch	managed
Type of mounting	DIN rail

Data switching	Store and Forward
Flow control	IEEE 802.3x flow control
Standard	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.1X for authentication IEEE 802.1AB for Link Layer Discovery protocol (LLDP) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for port trunk with LACP IEEE 802.1D for the Spanning Tree protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN tagging

Approval/Certificate/Document of Conformity	[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_189182) [RCM Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_189254) [UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253776) [Manufacturer's declaration for operating altitude](https://mdcop.weidmueller.com/mediadelivery/asset/900_263602)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_229772)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2682330000)
Product Change Notification	[Firmware Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_263593)
Software	[Device description -- SNMP private MIB](https://mdcop.weidmueller.com/mediadelivery/asset/900_212502) [Firmware -- Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_245699)
User Documentation	[Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_176923) [User manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_245689)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000734
ETIM 7.0	EC000734
ETIM 8.0	EC000734
ETIM 9.0	EC000734
ECLASS 9.0	19-17-01-06
ECLASS 9.1	19-17-01-06
ECLASS 10.0	19-17-04-01
ECLASS 11.0	19-17-04-01
ECLASS 12.0	19-17-04-01
ECLASS 13.0	19-17-04-01

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
