Ominaisuudet
| Version | Clamping yoke, Clamping yoke, Steel |
| Order No. | 1755081001 |

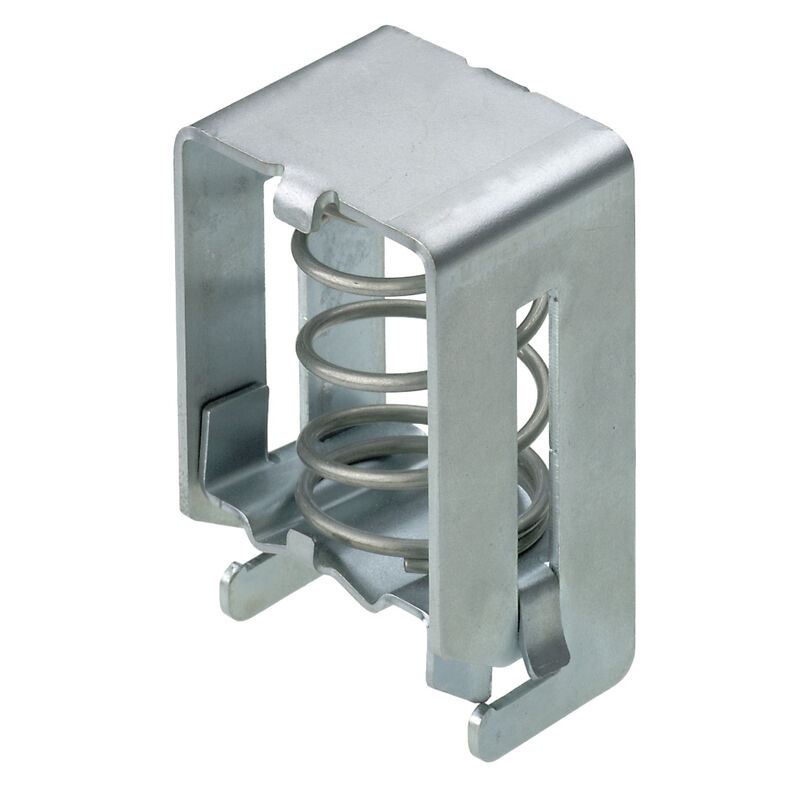

| Type | KLBUE CO 5 |
| GTIN (EAN) | 4032248064472 |
| Qty. | 10 items |
| Depth | 64,5 mm |
| Depth (inches) | 2,539 inch |
| Height | 35,5 mm |
| Height (inches) | 1,398 inch |
| Width | 42,7 mm |
| Width (inches) | 1,681 inch |
| Mounting dimension - width | 40 mm |
| Net weight | 78,7 g |
| Storage temperature | -25 °C...55 °C |
| Material | Steel |
| Colour | silver |
| Version | For a shield connection |
| Explosion-tested version | No |
| Installation advice | Busbar |
| Type of fixing | Snap-on |
| Cable diameter, max. | 37 mm |
| Cable diameter, min. | 20 mm |
| Pitch in mm (P) | 32 mm |
| Installation advice | Busbar |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63437) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1755081001) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1755081001) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1755081001&norm=0) |
| User Documentation |
[Beipackzettel_KLBUE.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35361)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002020 |
| ETIM 7.0 | EC002020 |
| ETIM 8.0 | EC002020 |
| ETIM 9.0 | EC002020 |
| ECLASS 9.0 | 27-14-11-50 |
| ECLASS 9.1 | 27-14-11-50 |
| ECLASS 10.0 | 27-14-11-50 |
| ECLASS 11.0 | 27-14-11-50 |
| ECLASS 12.0 | 27-14-11-50 |
| ECLASS 13.0 | 27-25-01-20 |
| ROHS | Conform |
