WPD 103 2X70/2X50 GN

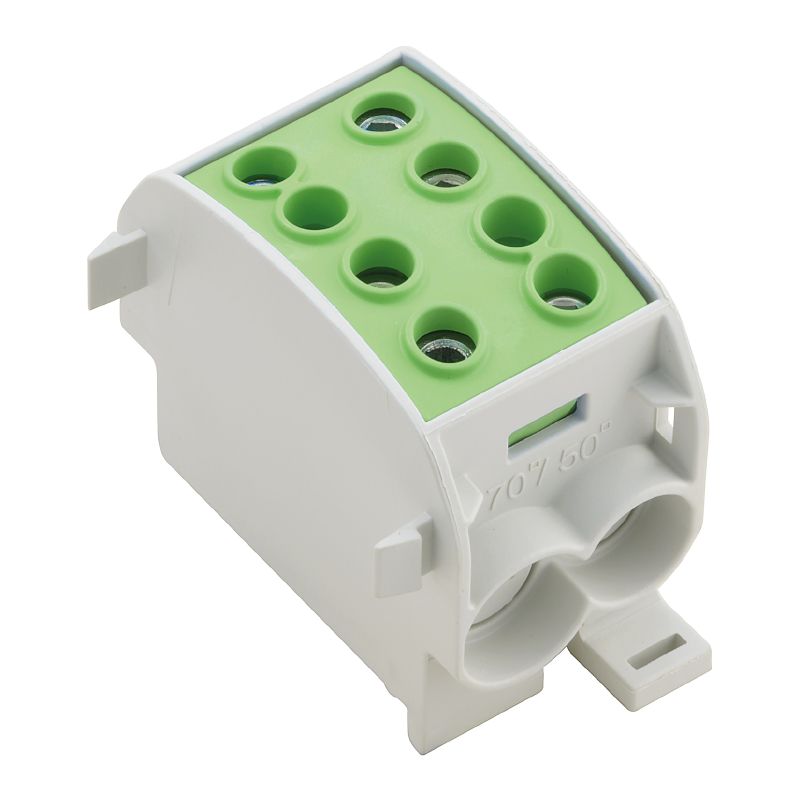

Potential distributor terminal, Screw connection, green, 70 mm², 300 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid

Tuotteen tunnus 1561790000

Ominaisuudet

General ordering data

Version	Potential distributor terminal, Screw connection, green, 70 mm², 300 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
Order No.	1561790000
Type	WPD 103 2X70/2X50 GN
GTIN (EAN)	4050118366587
Qty.	3 items

Dimensions and weights

Depth	53,3 mm
Depth (inches)	2,098 inch
Height	63 mm
Height (inches)	2,48 inch
Width	32,8 mm
Width (inches)	1,291 inch
Net weight	171 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	−50 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2

Material data

Material	Wemid
Colour	green
UL 94 flammability rating	V-0

System specifications

Version	Screw connection
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	Yes
Installation advice	Terminal rail / mounting plate
Open sides	closed
Snap-on	Yes
Type of mounting	Snap-on
With snap-in pegs	Yes

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

Clamping range, max.	70 mm²
Clamping range, min.	4 mm²
Connection cross-section, stranded, max.	70 mm²
Connection direction	on side
Number of connections	4
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	50 mm²
Wire connection cross-section, solid core, max.	70 mm²

General

Installation advice	Terminal rail / mounting plate
Number of poles	1
Rail	TS 35
Standards	IEC 60947-7-1 IEC 61238-1 VDE 0603-2
Wire connection cross section AWG, max.	AWG 4
Wire connection cross section AWG, min.	AWG 14

Rating data

Rated cross-section	70 mm²
Rated voltage	1 000 V
Rated AC voltage	1 000 V
Rated DC voltage	1 000 V
Rated current	300 A
Standards	IEC 60947-7-1 IEC 61238-1 VDE 0603-2

UL rating data

Certificate No. (cURus)

E60693

Downloads

Approval/Certificate/Document of Conformity	[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89228) [VDE Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153696) [VDE Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_198901) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37490) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39532)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1561790000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1561790000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [DATA SHEET WPD 103](https://mdcop.weidmueller.com/mediadelivery/asset/900_89308) [Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-19
ECLASS 14.0	27-25-01-19

Approvals

Approvals	![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![VDE](/picture/VDE.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
