TRS 120VUC 2CO PB

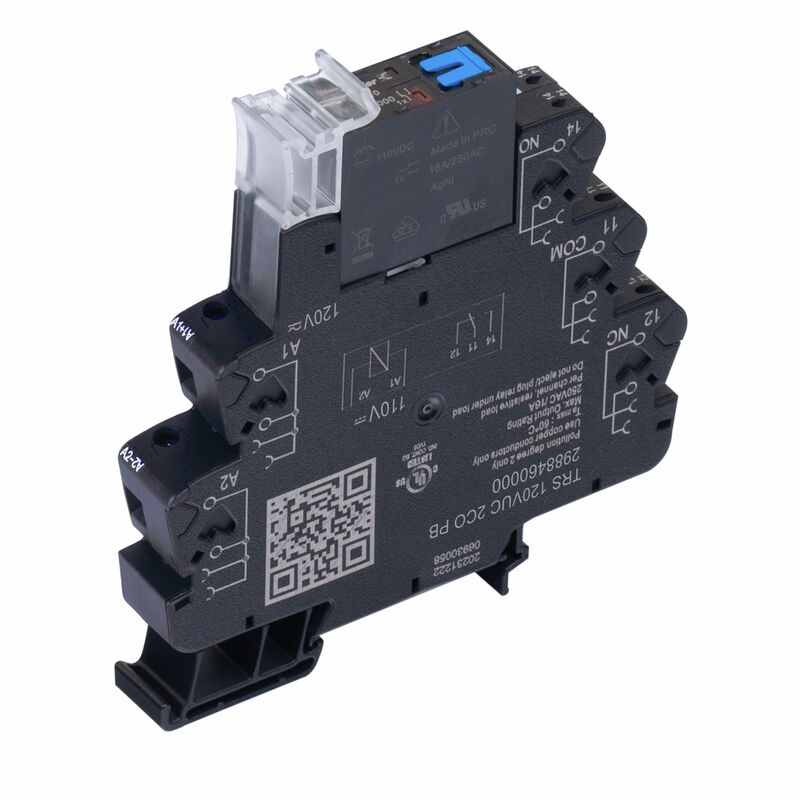

Product image
Similar to illustration
TRS 120VUC 2CO PB
Wiring diagram
TRS 120VUC 2CO PB
Graph
DC load limit curve
Resistive load
TRS 120VUC 2CO PB
Dimensional drawing
TRS 120VUC 2CO PB
Miscellaneous
Type codes

TRS 120VUC 2CO PB

TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 120 V UC ±10 %, Continuous current: 8 A, Screw connection, Test button available: Yes

Tuotteen tunnus 2988460000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 25 Yksittäiset osat 1 Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Расчетные данные UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 120 V UC ±10 %, Continuous current: 8 A, Screw connection, Test button available: Yes
Order No.
2988460000
Type
TRS 120VUC 2CO PB
GTIN (EAN)
4099986859265
Qty.
5 items

Dimensions and weights

Depth
97.5 mm
Depth (inches)
3.839 inch
Height
89.6 mm
Height (inches)
3.528 inch
Width
12.8 mm
Width (inches)
0.504 inch
Net weight
63 g

Temperatures

Storage temperature
-40 °C...70 °C
Ambient temperature
-40 °C…60 °C
Feuchtigkeit
5…85 % rel. Feuchte, keine Betauung

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Расчетные данные UL

Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor
flexible copper conductor
Tightening torque, max.
0.4 Nm
Pollution severity level
2

Control side

Rated control voltage
120 V UC ±10 %
Rated current AC
3.8 mA
Power rating
456 mW
Status indicator
Zielona dioda LED
Védőáramkör
Csillapító dióda
Polaritás-felcseréléssel szembeni védelem
Coil voltage of the replacement relay deviating from the rated control voltage
Yes
Coil voltage of the replacement relay
110 V DC

Load side

Rated switching voltage
250 V AC
Continuous current
8 A
Max. switching frequency at rated load
0.1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
100 mA @ 10 V
Inrush current
30 A / 4 s
AC switching capacity (resistive), max.
2000 VA
DC switching capacity (resistive), max.
60W @ 120V
Switch-on delay
≤ 15 ms
Switch-off delay
≤ 16 ms
Protective circuit, load side
Rectifier
Contact type
2 CO contact (AgNi)
기계적 서비스 수명
5 x 106 스위칭 사이클

General data

Operating altitude
≤ 2000 m
above sea level
Mounting rail
TS 35
Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Mechanical switch position indicator
Yes
Farbe
schwarz
UL94 flammability rating component
  • Komponente:
    Gehäuse
  • Brennbarkeitsklasse nach UL94:
    V-0
  • Komponente:
    Pusher
  • Brennbarkeitsklasse nach UL94:
    V-0
  • Komponente:
    Haltebügel
  • Brennbarkeitsklasse nach UL94:
    V-0

Insulation coordination

Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 5.5 mm
Dielectric strength for control side - load side
2,5 KVeff / 1 min.
Nyitott érintkező átütési szilárdsága
1 kVeff / 1 min
Dielectric strength to mounting rail
4 kVeff / 1 min.
Impulse withstand voltage
6 kV (1,2/50 µs)
Impulse withstand voltage at neighbouring contacts
4 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Certificate no. (cULus)
E141197

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
8 mm
Tightening torque, max.
0.4 Nm
Clamping range, rated connection
1.5 mm²
Clamping range, min.
0.14 mm²
Clamping range, max.
2.5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0.14 mm²
Sección de conexión del conductor, rígido, max.
2.5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Průřez vodiče, pevným, max. (AWG)
AWG 14
Wire connection cross section, finely stranded, min.
0.14 mm²
Wire connection cross section, finely stranded, max.
2.5 mm²
Vezeték keresztmetszet, finomsodratú, min. (AWG)
AWG 26
Sezione di collegamento cavo, flessibile, max. (AWG)
AWG 14
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최소
0.25 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최대
2.5 mm²
컨덕터 단면, 연선, AEH(DIN 46228-1), 최소
0.25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm²
Section de raccordement du conducteur, souple, 2 conducteurs de raccordement, min.
0.5 mm²
Section de raccordement du conducteur, souple, 2 conducteurs de raccordement, max.
1 mm²
Blade size
Gr. PH0

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
