1170-21-15A

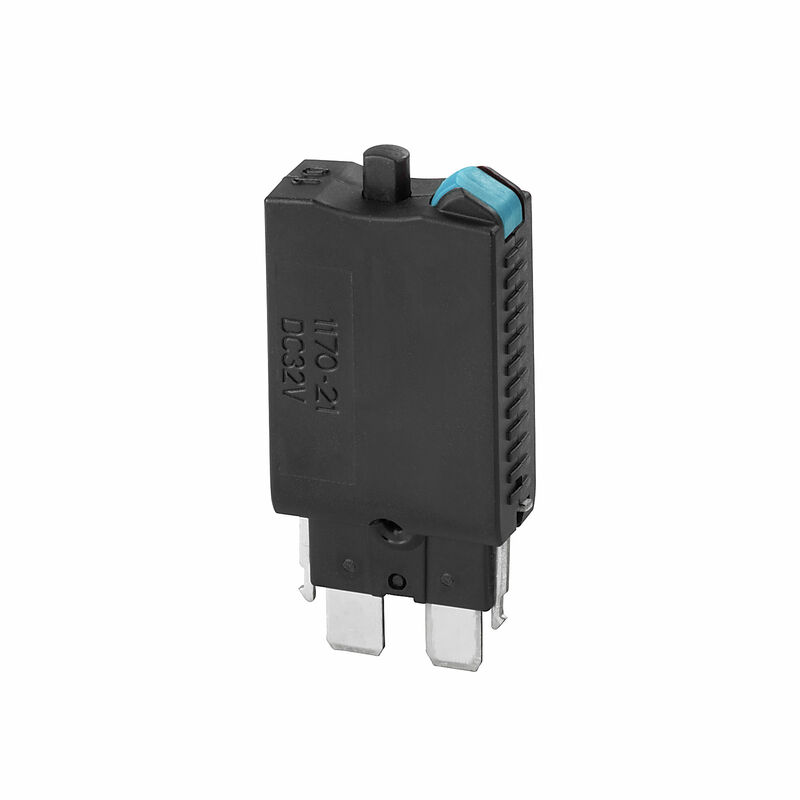

Product image

1170-21-15A

Miniature fuse, quick-acting, 15 A, Blade fuse type C

Produkt ID 1278810000
Download datablad Produktdownloads Engineering-support
Er tilbehør til 1 Anvendte produkter 84
Approvals Ogólne dane zamówieniowe Dimensions and weights Temperatures Umweltanforderungen Material data System specifications Additional technical data General Rating data Product images Classifications

Approvals

ROHS
Conform

Ogólne dane zamówieniowe

Version
Miniature fuse, quick-acting, 15 A, Blade fuse type C
Order No.
1278810000
Type
1170-21-15A
GTIN (EAN)
4050118091328
Qty.
5 Styk

Dimensions and weights

Depth
51,6 mm
Depth (inches)
2,031 inch
Height
22 mm
Height (inches)
0,866 inch
Width
9,8 mm
Width (inches)
0,386 inch
Net weight
10,1 g

Temperatures

Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Umweltanforderungen

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Material data

Colour
black

System specifications

Version
Fuse cartridge

Additional technical data

Installation advice
Direct mounting
Type of mounting
Plugged

General

Installation advice
Direct mounting

Rating data

Rated voltage
28 V
Nominal current
15 A

Product images

Classifications

ETIM 8.0
EC002704
ETIM 9.0
EC002704
ETIM 10.0
EC002704
ECLASS 14.0
27-14-20-01
ECLASS 15.0
27-14-20-01
