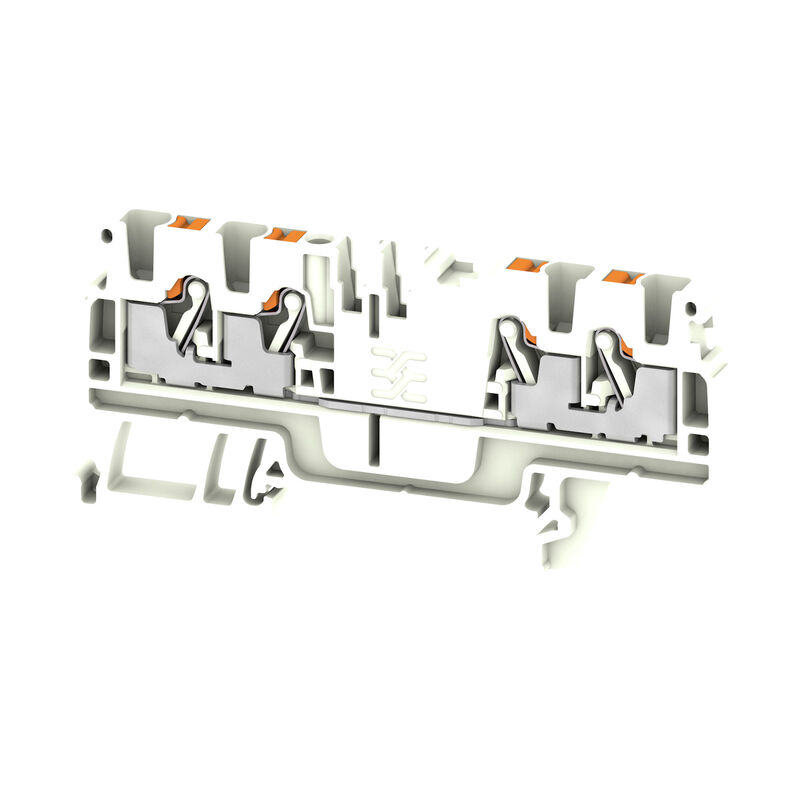

A4C 2.5 WT
Illustrazione del prodotto
A4C 2.5 WT

A4C 2.5 WT

Проходная клемма, PUSH IN, 2.5 mm², 800 V, 24 A, белый

N. articolo 1521790000
Apri nel configuratore
Download foglio dati Supporto ingegneristico Download dei prodotti
Accessori 91 È accessorio di 3 Prodotti correlati 1056
Сертификаты Основные данные для заказа Размеры и массы Температуры Экологическое соответствие изделия Характеристики материала Номинальные характеристики IECEx/ATEX Systemparametrar 추가 기술 데이터 Rögzíthető vezetékek (kiegészítő csatlakozás) Raccordement (raccordement nominal) Caractéristiques nominales selon CSA 일반 Расчетные данные Caractéristiques nominales selon UL Classifications

Сертификаты

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0a8958f9-c226-4e12-af16-493ec79d92c5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

Основные данные для заказа

Versión
Проходная клемма, PUSH IN, 2.5 mm², 800 V, 24 A, белый
Código
1521790000
Tipo
A4C 2.5 WT
GTIN (EAN)
4050118328301
Qty.
100 Pezzo

Размеры и массы

Profundidad
36,5 mm
Глубина (дюймов)
1,437 inch
Byggdjup inkl. montageskena
37 mm
Altura
77,5 mm
Bygghöjd (tum)
3,051 inch
Anchura
5,1 mm
Width (inches)
0,201 inch
Net weight
9,82 g

Температуры

Temperatura de almacenamiento
-25 °C...55 °C
Temperatura ambiente
-60 °C…85 °C
Temperatura d'esercizio continuo, min.
-60 °C
Temperatura d'esercizio continuo, max.
130 °C

Экологическое соответствие изделия

Estado de cumplimiento de la directiva RoHS
Соответствует без исключения
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Dalla culla al cancello:
    0.285 kg CO2 eq.

Характеристики материала

Basic material
Материал Wemid
Colour
white
Colour of operational elements
arancione
UL 94 flammability rating
V-0

Номинальные характеристики IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
21 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Corrente (IECEX)
21 A
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Marcatura Ex 2014/34/EU
II 2 G D

Systemparametrar

End cover plate required
Ja
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

추가 기술 데이터

Explosion-tested version
예
Installation advice
장착 레일
Open sides
오른쪽
Snap-on
No
Type of fixing
已制动的
Type of mounting
TS 35
With snap-in pegs
Нет

Rögzíthető vezetékek (kiegészítő csatlakozás)

Connection type, additional connection
PUSH IN

Raccordement (raccordement nominal)

Blade size
0,6 x 3,5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, finely stranded, min.
0,14 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
felső
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
10 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      0,75 mm²
Tube length for twin wire-end ferrule acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    0,75 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar acc. to cross-section
  • Cross-section, min.:
    0,14 mm²
  • Cross-section, max.:
    0,34 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    8 mm
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      0,14 mm²
    • max.:
      0,34 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
Tube length for wire-end ferrule without plastic collar acc. to cross-section
  • Cross-section, min.:
    0,25 mm²
  • Cross-section, max.:
    0,25 mm²
  • Tube length, min.:
    5 mm
  • Tube length, max.:
    5 mm
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    10 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    7 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      4 mm²
Twin wire-end ferrules, max.
0,75 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

Caractéristiques nominales selon CSA

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG

일반

Indicación de montaje
장착 레일
Mounting rail
TS 35
Sección de conexión del conductor AWG, min.
AWG 28
Sección de conexión del conductor AWG, máx.
AWG 12
Standards
IEC 60947-7-1

Расчетные данные

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3
Surge voltage category
III

Caractéristiques nominales selon UL

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
