End plate, RS 80 Pebble grey, End plate DIN mounting rail left, Width: 30 mm

ID výrobku 8156210000
Stáhnout datový list Engineering Support Product Downloads
Aksesuarlar 1 aksesuarıdır 2 İlgili ürünler 1
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dati del materiale General data Classifications

Approvals

ROHS
Conform

General ordering data

Version
End plate, RS 80 Pebble grey, End plate DIN mounting rail left, Width: 30 mm
Order No.
8156210000
Type
AP RF 80 LI 2025
GTIN (EAN)
4008190978198
Qty.
20 adet

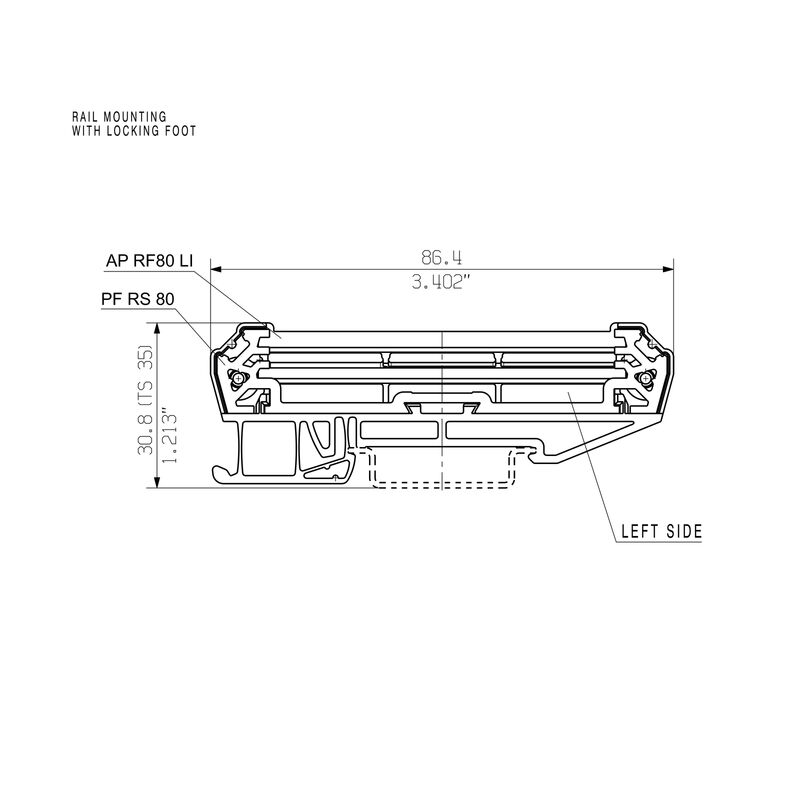

Dimensions and weights

Depth
9 mm
Depth (inches)
0,354 inch
Height
86,4 mm
Height (inches)
3,402 inch
Width
30 mm
Width (inches)
1,181 inch
Net weight
5,95 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dati del materiale

Basic material
PA 66
Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66
Insulating material group
I
Surface finish
untreated
UL 94 flammability rating
V-2

General data

Colour
кремнисто-серый
Colour chart (similar)
RAL 7032
Encapsulation option
No
Protection degree
IP20 in installed state

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC002779
ETIM 10.0
EC002779
ECLASS 14.0
27-19-06-02
ECLASS 15.0
27-19-06-02
