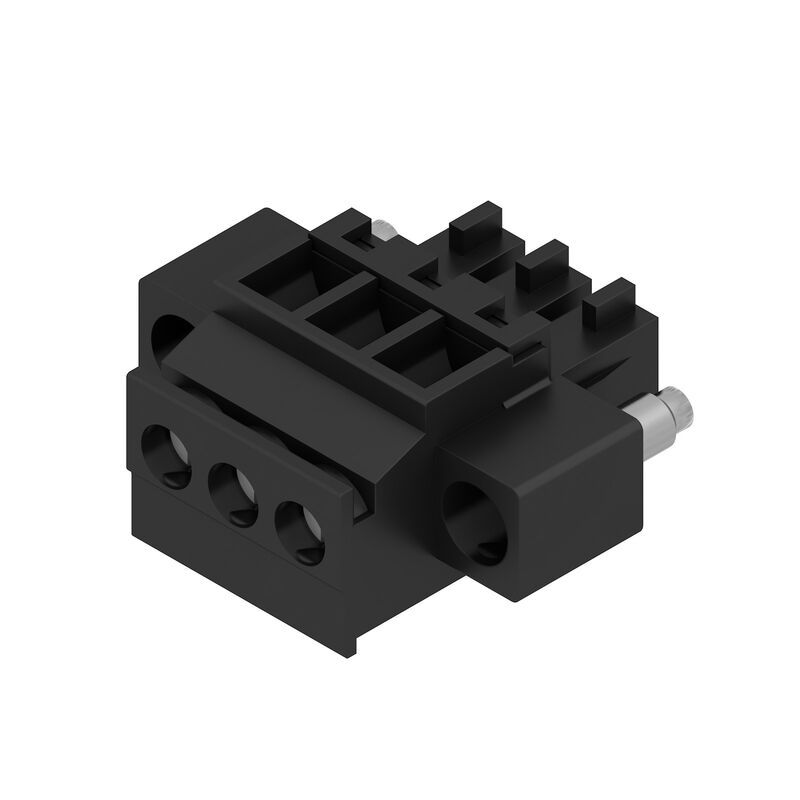

Product image
BCZ 3.81/03/90F SN BK BX

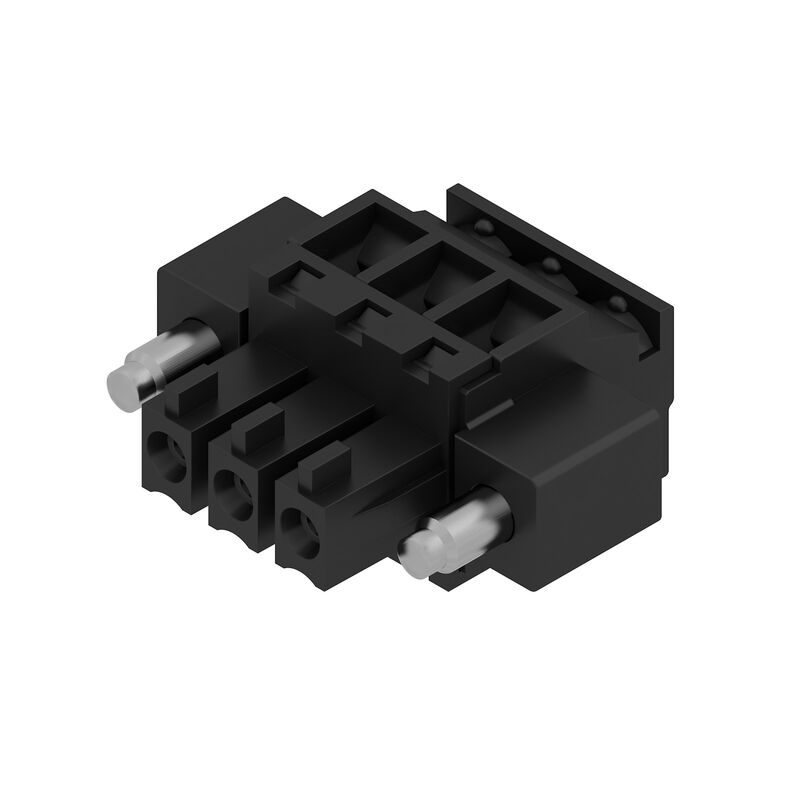

Product image
BCZ 3.81/03/90F SN BK BX
Dimensional drawing
BCZ 3.81/03/90F SN BK BX
Graph
BCZ 3.81/03/90F SN BK BX
Graph
BCZ 3.81/03/90F SN BK BX
Graph
BCZ 3.81/03/90F SN BK BX
Graph

BCZ 3.81/03/90F SN BK BX

PCB plug-in connector, female plug, 3.81 mm, Number of poles: 3, 90°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box

Ürün No. 1798140000
Veri sayfasını indir Soporte técnico Descargas de productos
Contrapiezas 11 Productos relacionados 26
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 3.81 mm, Number of poles: 3, 90°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Order No.
1798140000
Type
BCZ 3.81/03/90F SN BK BX
GTIN (EAN)
4032248241330
Qty.
50 Styk
Product data
IEC: 320 V / 17.5 A / 0.2 - 1.5 mm²
UL: 300 V / 10 A / AWG 28 - AWG 16
Packaging
Box

Dimensions and weights

Depth
19.1 mm
Depth (inches)
0.752 inch
Height
10.5 mm
Height (inches)
0.413 inch
Width
21.85 mm
Width (inches)
0.86 inch
Net weight
3.397 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c
REACH SVHC
Lead 7439-92-1
SCIP
ea9dd4b8-c51f-409c-885a-41700372be61

System Parameters

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
3.81 mm
Pitch in inches (P)
0.15 "
Conductor outlet direction
90°
Number of poles
3
L1 in mm
7.62 mm
L1 in inches
0.3 "
Number of rows
1
Pin series quantity
1
Rated cross-section
1 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
예
Stripping length
7 mm
Tornillo de apriete
M 2
Punta de destornillador
0,4 x 2,5
Punta de destornillador normativa
DIN 5264
Ciclos de enchufado
25
Fuerza de inserción/polo, máx.
7 N
Fuerza de extracción/polo, máx.
5 N
Par de apriete
  • Torque type:
    Conexión de conductor
  • Información de aplicación:
    • Par de apriete:
      • mín.:
        0.2 Nm
      • máx.:
        0.25 Nm
  • Tipo de par:
    Sujeción lateral
  • Información de aplicación:
    • Par de apriete:
      • mín.:
        0.15 Nm
      • máx.:
        0.2 Nm

Material data

Materiale isolante
PA 66 GF 30
Colori
black
Färgtabell (jämförbar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 550
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Skiktstruktur för stiftkontakten
0.5...1.5 µm Cu / 2...5 µm Sn
Temperatura de almacenamiento, min.
-40 °C
Temperatura de almacenamiento, max.
70 °C
-50 °C
Temperatura de servicio, max.
120 °C
Gama de temperatura, montaje, min.
-25 °C
Gama de temperatura, montaje, max.
120 °C

Conductors suitable for connection

클램프 범위, 최소
0.08 mm²
Campo di sezioni, max.
1.5 mm²
Wire connection cross section AWG, min.
AWG 28
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 16
Solid, min. H05(07) V-U
0.2 mm²
Solid, max. H05(07) V-U
1.5 mm²
Flexible, min. H05(07) V-K
0.2 mm²
Flexible, max. H05(07) V-K
1.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1.5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.2 mm²
С кабельным наконечником согласно DIN 46 228/1, макс.
1.5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.4 mm x 1.5 mm
Anslutningsbar ledare
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
Reference text
El diámetro exterior de la abrazadera de plástico no debe ser superior al paso (P)
La longitud de los terminales tubulares se debe elegir en función del producto y de la tensión nominal.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17.5 A
Rated current, max. number of poles (Tu=20°C)
15.9 A
Märkström, min. antal poler (Tu=40°C)
17.5 A
Rated current, max. number of poles (Tu=40°C)
14.1 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2.5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2.5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Rated current (Use group B / CSA)
8 A
Rated current (Use group C / CSA)
8 A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 16
Reference to approval values
Las especificaciones son valores máximos; para más información, ver certificado de homologación.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 16
Reference to approval values
Las especificaciones son valores máximos; para más información, ver certificado de homologación.

Packing

Packaging
Box
VPE length
105 mm
VPE width
74 mm
VPE height
53 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, rated voltage, rated cross-section, pitch, type of material, approval marking UL, approval marking CSA
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN EN 60512-13-5 / 11.06
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.08 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.08 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

Conformidad con IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
