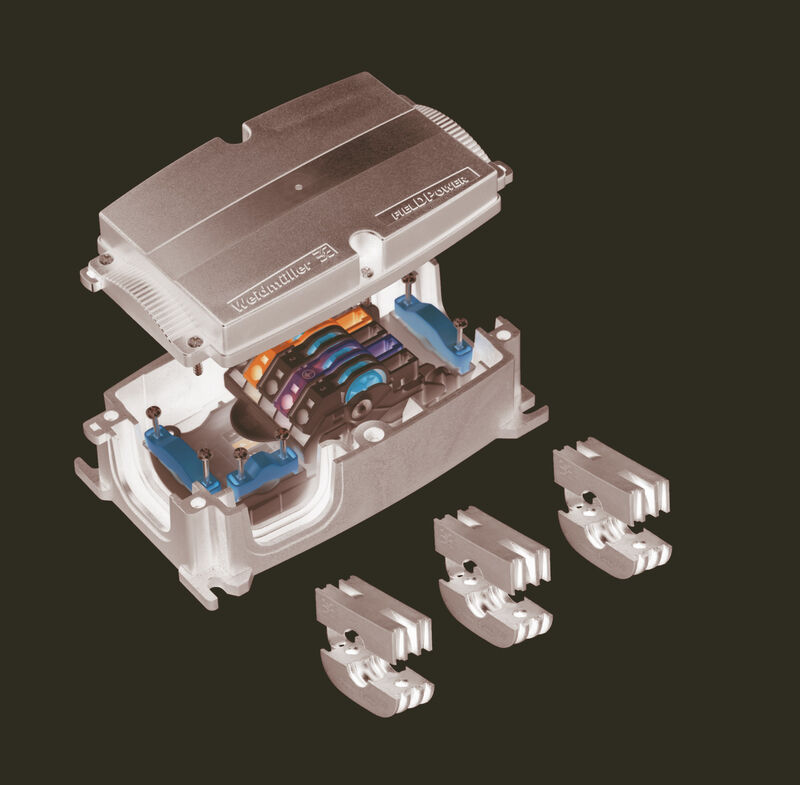

FieldPower® power distribution box, AC, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC), Distribution

Product ID 1059320000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 10 Afzonderlijke onderdelen 4 Verwante producten 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance 締め付け力 General data Rated data acc. to IEC Rated data acc. to UL Classifications

Approvals

ROHS
Conform

General ordering data

Version
FieldPower® power distribution box, AC, IP65, in complete state, glass-fibre reinforced polycarbonate, PUSH IN, Insulation displacement connection (IDC), Distribution
Order No.
1059320000
Type
FP BOX SET D9
GTIN (EAN)
4032248806386
CPZ
1 items

Dimensions and weights

Depth
67 mm
Depth (inches)
2.638 inch
Height
181 mm
Height (inches)
7.126 inch
Width
104 mm
Width (inches)
4.094 inch
Peso netto
693 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
5f19cd84-8946-4797-9386-3ac323b95c10

締め付け力

Connection data - contact element power bus
  • Metoda wykonywania złącz:
    Соединение путем прорезания изоляции (IDC)
  • Размер лезвия рабочего инструмента:
    0.6 x 3.5 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    6 mm²
  • Conductor connection cross-section, solid, min.:
    1.5 mm²
  • Conductor connection cross-section, stranded, max.:
    6 mm²
  • Conductor connection cross-section, stranded, min.:
    2.5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    6 mm²
  • Conductor connection cross-section, finely stranded, min.:
    2.5 mm²
Datos de conexión - contacto elemento Sector / Alimentación
  • Wire connection method:
    PUSH IN
  • Blade size of operating tool:
    0.6 x 3.5 mm
  • Stripping length:
    14 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    6 mm²
  • Conductor connection cross-section, solid, min.:
    0.5 mm²
  • Conductor connection cross-section, stranded, max.:
    6 mm²
  • Conductor connection cross-section, stranded, min.:
    0.5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    10 mm²
  • Conductor connection cross-section, finely stranded, min.:
    0.5 mm²
  • Conductor connection cross-section, finest stranded, max.:
    6 mm²
  • Conductor connection cross-section, finest stranded, min.:
    0.5 mm²
  • Conductor connection cross-section with wire end ferrule:
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      Twin wire-end ferrules
    • Cross-section, min.:
      0.5 mm²
    • Cross-section, max.:
      6 mm²

General data

Materiale di base
Polycarbonate, glass fibre reinforced
Polycarbonate
GRP
Materiale isolante
Polycarbonate
Materiale della custodia
glass-fibre reinforced polycarbonate
Silicone
No
Colour
black
Védelmi osztály
IP65
in complete state
Classe d'infiammabilità UL 94
5VA
Coppia di serraggio delle viti coperchio
2 Nm
Lid attachment
TX20 screws
Type of mounting
Screw mounting
Fixing lugs
Installation advice
Lid screws included
Function
Distribution
Can be coded
Yes
Coded on PE
Voltage type
AC
Number of poles
5
Number of connections / pole
1
Wire connection method
PUSH IN
Insulation displacement connection (IDC)

Rated data acc. to IEC

Névleges adatok IEC szerint érintkező elemhez
  • Voltage type:
    AC
  • Number of phases:
    3
  • Standard:
    IEC 60947-7-1, IEC 60947-7-2
  • Rated voltage:
    800 V
  • Rated impulse withstand voltage:
    8 kV
  • Rated current (3 loaded poles):
    41 A
  • Rated current (4 loaded poles):
    25 A

Rated data acc. to UL

Rated data acc. to UL for contact element
  • Standard:
    UL 1059
  • Note:
    for use with UL-listed TC-ER cables
  • Conductor connection cross-section, AWG, max.:
    AWG 10
  • Conductor connection cross-section, AWG, min.:
    AWG 14
  • Rated voltage:
    600 V
  • Rated current:
    30 A
Standards
not UL approved

Classifications

ETIM 8.0
EC000214
ETIM 9.0
EC000214
ETIM 10.0
EC000214
ECLASS 14.0
27-14-24-09
ECLASS 15.0
27-14-24-09
