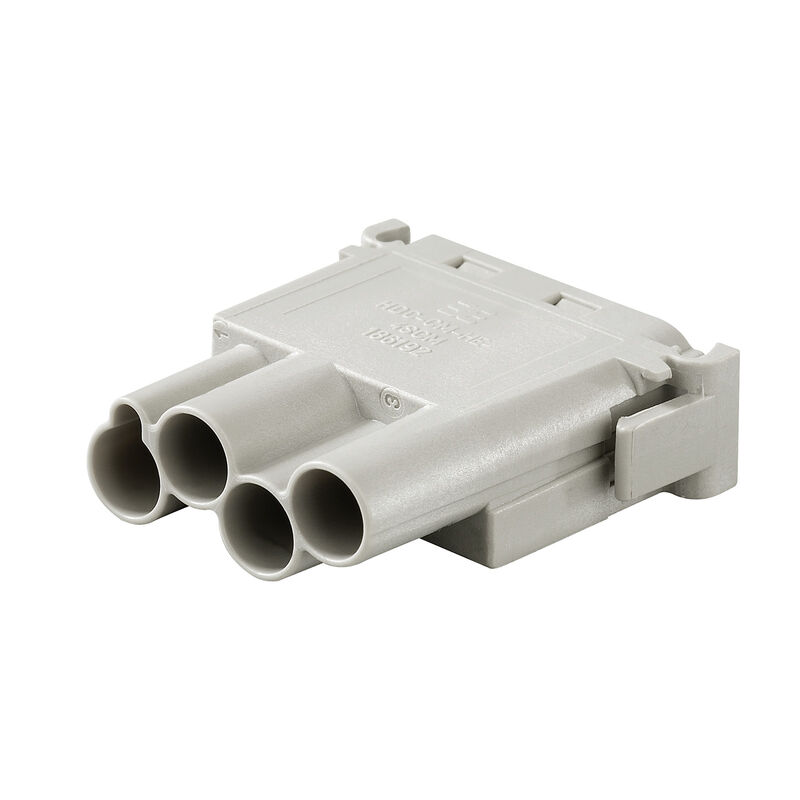

Heavy-duty connectors, HDC insert, ConCept module

Ürün No. 1861920000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance ConCept Pneumatic module Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
Heavy-duty connectors, HDC insert, ConCept module
Order No.
1861920000
Type
HDC CM HE 4 MC
GTIN (EAN)
4032248425068
Qty.
10 adet

Dimensions and weights

Depth
34 mm
Depth (inches)
1,339 inch
Height
39,5 mm
Height (inches)
1,555 inch
Width
11,4 mm
Width (inches)
0,449 inch
Net weight
9,2 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd

ConCept Pneumatic module

Colour
beige
UL 94 flammability rating
V-0

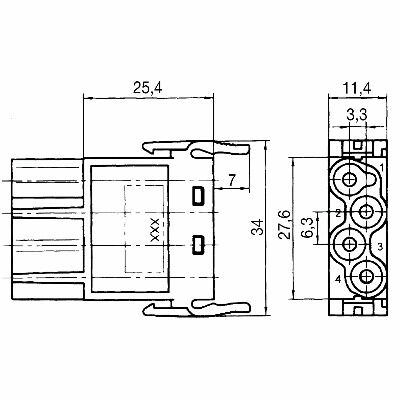

Dimensions

Height of plug
39,5 mm
Total length base
34 mm
Width
11,4 mm

General data

Colour
beige
Grado de polución
3
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulation resistance
1012 Ω
Low smoke acc. DIN EN 45545-2
Yes
Material básico
Polycarbonate, glass fibre reinforced
Number of poles
4
Névleges feszültség (DIN EN 61984)
630 V
Series
ConCept module
Tensione impulsiva di dimensionamento (DIN EN 61984)
8 kV
Type
Pin
Type of connection
Crimp connection
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ
Überspannungskategorie
III
정격 전압(DIN EN 61984)
25 A

Connection data PE

Connection type PE
Screw connection via module frame

Version

Basic material
Polycarbonate, glass fibre reinforced
Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,5 mm²
Stripping length, rated connection
7,5 mm
Type of connection
Crimp connection
Volume resistance
≤2 mΩ
Wire connection cross section AWG, min.
AWG 20
Поперечное сечение подключаемого провода AWG, макс.
AWG 12

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
