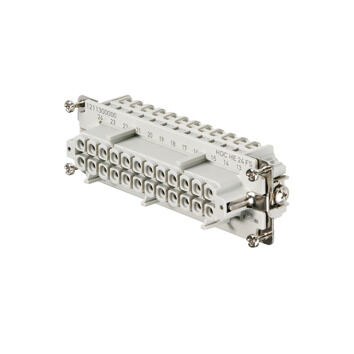

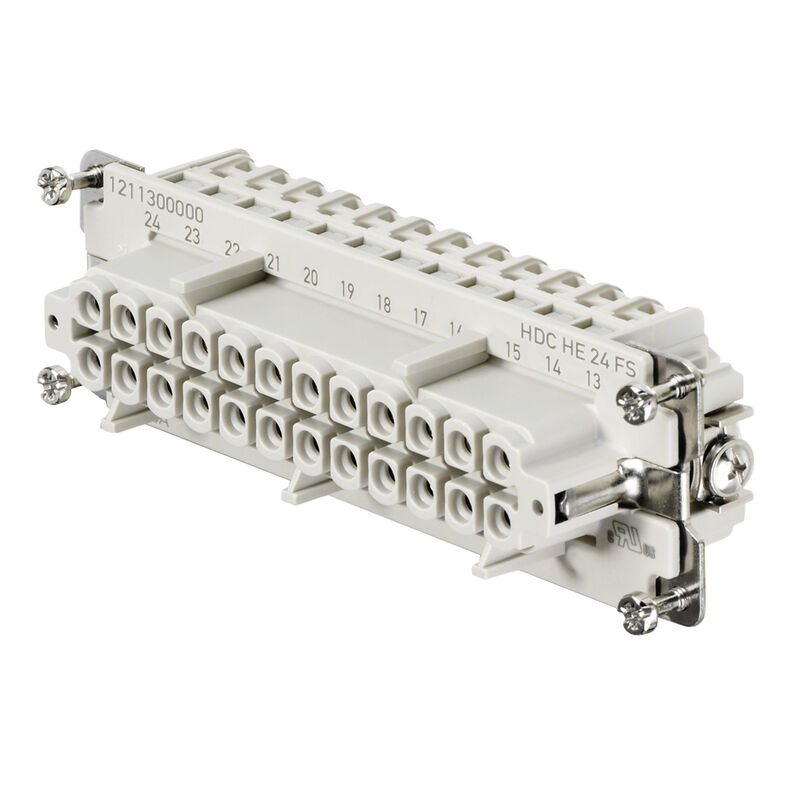

HDC insert, Female, 500 V, 16 A, Number of poles: 24, Screw connection, Installation size: 8

Product ID 1211300000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 2 Is accessoire van 1 Afzonderlijke onderdelen van 6 Verwante producten 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions Dane ogólne Anslutningsdata PE Power contact Signal contact Исполнение Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(cURus)
E92202

General ordering data

버전
HDC insert, Female, 500 V, 16 A, Number of poles: 24, Screw connection, Installation size: 8
주문 번호
1211300000
유형
HDC HE 24 FS
GTIN(EAN)
4008190067298
Qty.
1 items

Dimensions and weights

깊이
111 mm
Depth (inches)
4,37 inch
높이
35,2 mm
Height (inches)
1,386 inch
너비
34 mm
Width (inches)
1,339 inch
Net weight
138 g

Temperatures

한계 온도
-40 °C ... 125 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f

Dimensions

Height of socket
35,2 mm
Total length base
111 mm
Width
34 mm

Dane ogólne

Basic material
Сплав медный
BG
8
Colour
beige
Conductor cross-section
2,5 mm²
Installation size
8
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,6 Nm
Number of poles
24
Number of power contacts
24
Number of signal contacts
0
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HE
Surface finish
Silver passivated
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Type of connection
Screw connection
Típus
Female
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Anslutningsdata PE

Befestigungsschraube
M 4
Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Sección de conexión del conductor AWG (PE), mín.
AWG 20
Sección nominal
4 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Wire cross section, AWG (PE), max.
AWG 12

Power contact

Tightening torque, max.
0,7 Nm
Tightening torque, min.
0,6 Nm

Signal contact

Coppia di serraggio, min.
0,6 Nm
Meghúzási nyomaték, max.
0,7 Nm

Исполнение

Basic material
Kopparlegering
BG
8
Blade size
size PH1
Blade size, slotted (screw connection)
SD 0.6 x 3.5
Clamping screw
M 3
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
8
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,6 Nm
Stripping length, rated connection
9 mm
Surface finish
Silver passivated
Type of connection
Screw connection
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
