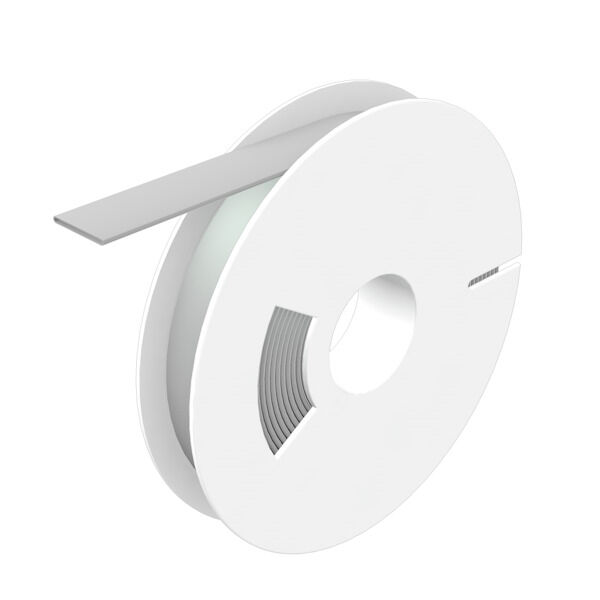

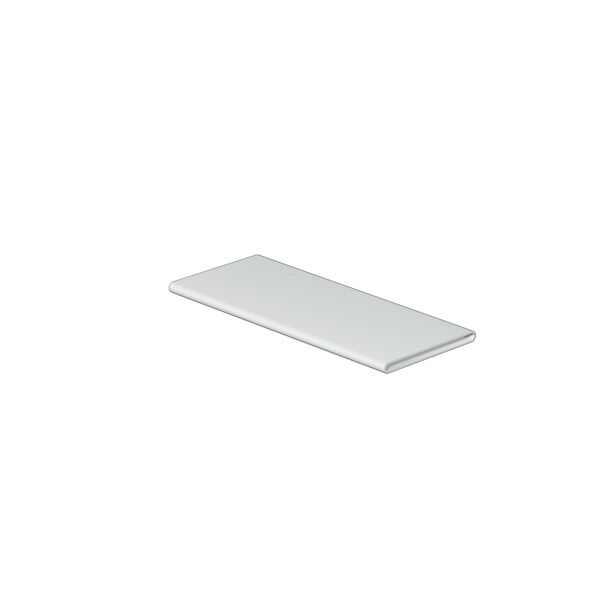

HSS 4.2-12.7 EL W13M
HSS 4.2-12.7 EL W13M

HSS 4.2-12.7 EL W13M

Conductor and cable markers, 4.2 - 12.7 mm, white

Product ID 1489670000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 3 Verwante producten 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E366310

General ordering data

Version
Conductor and cable markers, 4.2 - 12.7 mm, white
Référence
1489670000
Type
HSS 4.2-12.7 EL W13M
GTIN (EAN)
4050118299502
Qty.
1 items

Dimensions and weights

Profondeur
0,77 mm
Depth (inches)
0,03 inch
Largeur
20,9 mm
Width (inches)
0,823 inch
Longueur
13 000 mm
Length (inches)
511,81 inch
Net weight
240 g

Temperatures

Üzemi hőmérsékleti tartomány
-55...135 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
Yes
Length
13 000 mm
Operating temperature range
-55...135 °C
Operating temperature range, max.
135 °C
Operating temperature range, min.
−55 °C
Printed characters
without
Recommended industries
Plant manufacture
Energy
Device manufacturer
Machinery
Type of printing
neutral
Width
20,9 mm

Conductor and cable markers

Conductor O.D.
4.2 - 12.7 mm
Cross-section for connected wire
6 - 35 mm²
Ledarytterdiameter, max.
12,7 mm
Ledarytterdiameter, min.
4,2 mm
Przekrój przyłącza przewodu, maks.
35 mm²
Rate of shrinkage
3:1
Recommended shrinking temperature
90 °C
Text field height
20,7 mm
Text field width
0 mm
Галогены
Yes
Поперечное сечение соединительного провода, мин.
6 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
