HSS-HF 25.4-50.8EL Y10M
HSS-HF 25.4-50.8EL Y10M

HSS-HF 25.4-50.8EL Y10M

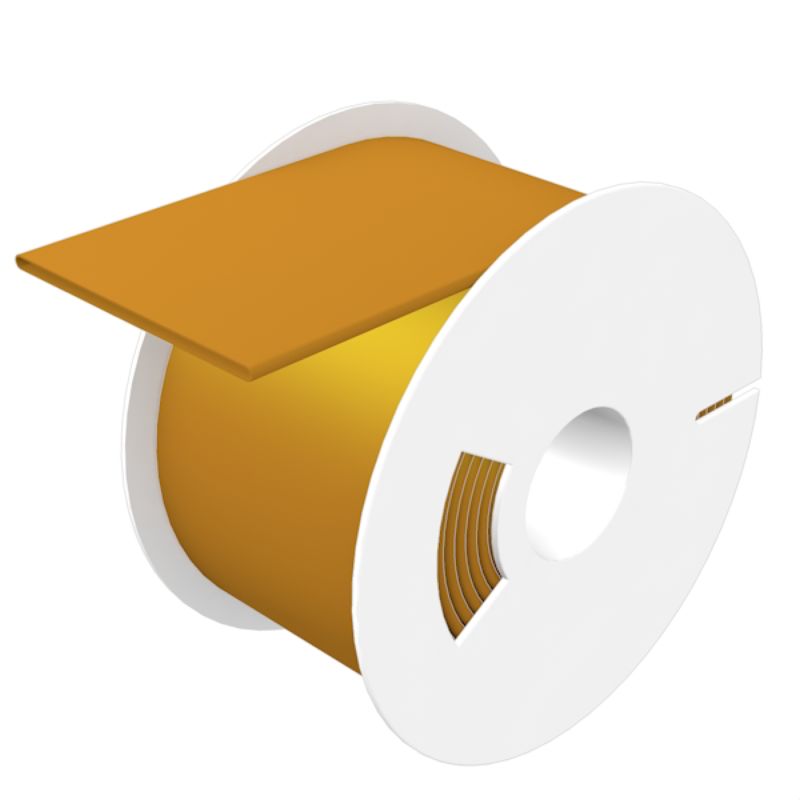

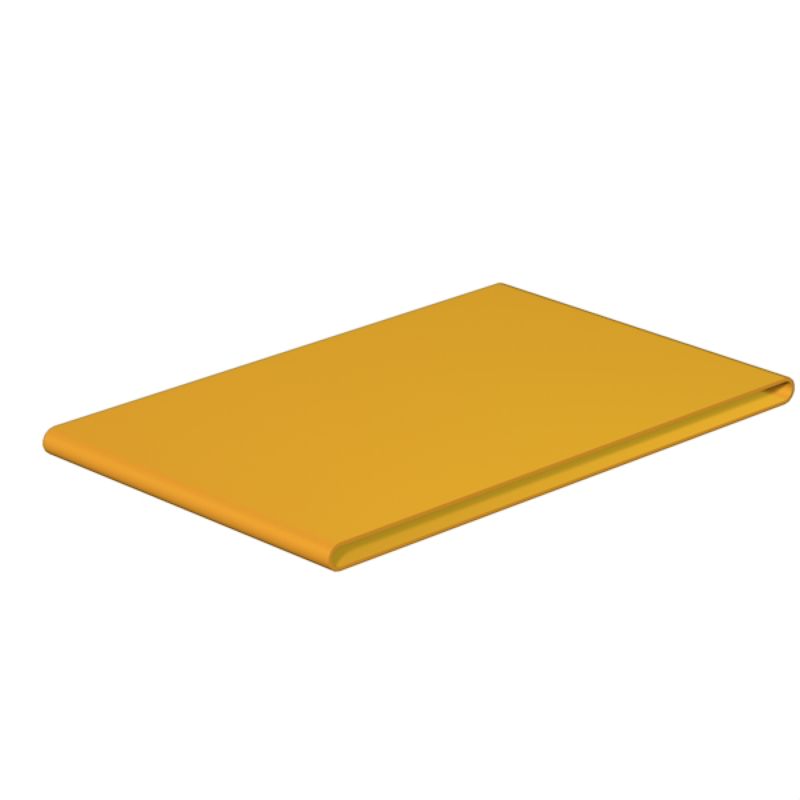

Segnafili e segnacavi, 25.4 - 50.8 mm, giallo

Produkt ID 1423320000
Download datablad Produktdownloads Engineering-support
Tilbehør 4 Anvendte produkter 8
Сертификаты Dati generali per l’ordinazione Dimensioni e pesi Temperaturer Conformità ambientale del prodotto Allgemeine Angaben Conductor and cable markers 분류

Сертификаты

ROHS
Соответствовать

Dati generali per l’ordinazione

Version
Segnafili e segnacavi, 25.4 - 50.8 mm, giallo
Order No.
1423320000
Type
HSS-HF 25.4-50.8EL Y10M
GTIN (EAN)
4050118227659
Qty.
1 Styk

Dimensioni e pesi

Depth
1,5 mm
Profondità (pollici)
0,059 inch
Width
79,3 mm
Ширина (в дюймах)
3,122 inch
Length
10.000 mm
Length (inches)
393,7 inch
Net weight
1.256 g

Temperaturer

Operating temperature range
-55...105 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
Нет SVHC выше 0,1 wt%

Allgemeine Angaben

Basic material
Polyolefine
Colour
yellow
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
No
Length
10.000 mm
Number per roll
1
Operating temperature range
-55...105 °C
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Printed characters
sin
Recommended industries
Transportation
Type of printing
vierge
Width
79,3 mm

Conductor and cable markers

Conductor cross-section, max.
300 mm²
Conductor cross-section, min.
120 mm²
Conductor O.D.
25.4 - 50.8 mm
Conductor O.D., max.
50,8 mm
Conductor O.D., min.
25,4 mm
Cross-section for connected wire
120 - 300 mm²
Halogen
No
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C

분류

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
