IE-XM-RJ45/IDC-IP67
IE-XM-RJ45/IDC-IP67

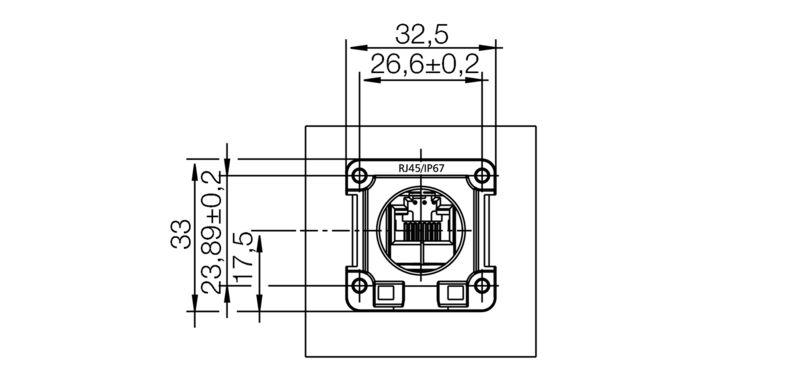

Dimensioned drawing

IE-XM-RJ45/IDC-IP67

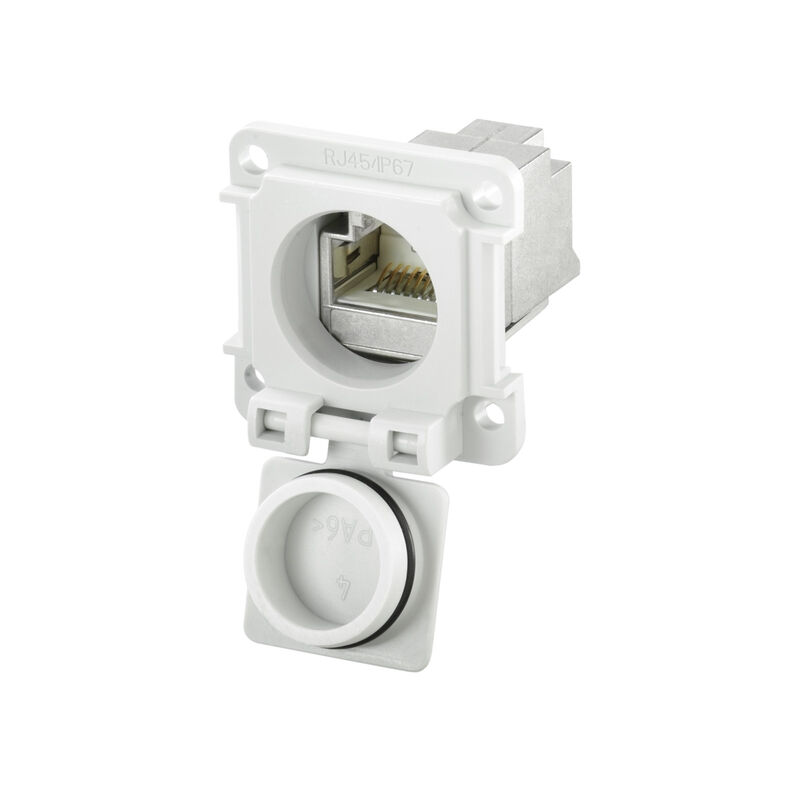

Mounting flange, RJ45 module flange, straight, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67

Tuotteen tunnus 8808440000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 On vastine kohteelle 1 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Mounting flange, RJ45 module flange, straight, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67
Order No.
8808440000
Type
IE-XM-RJ45/IDC-IP67
GTIN (EAN)
4032248506026
Qty.
1 items

Dimensions and weights

Net weight
22,39 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Conexión 1
RJ45
Conexión 2
IDC
Description of article
RJ45 module flange, straight
Composition
Installation flange with mounting frame
and RJ45 module with
IDC connection
captive lid
Wiring
Colour-coded pin assignment according to
EIA/TIA T568 A .
EIA/TIA T568 B
Colour
Light Grey
Housing main material
PA 66
UL 94: V-0
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact surface
Gold over nickel
Type of mounting
Cabinet
Distribution box
Shielding
360° shield contact
IP67
Plugging cycles
750

Electrical properties

Dielectric strength, contact / shield
≥ 1500 V AC/DC
Электрическая прочность, контакт / контакт
≥ 1000 V AC/DC

General standards

Tanúsítvány sz. (DNV)
TAE00003EW
커넥터 표준
IEC 61076-3-106 Var. 6
IEC 60603-7-5

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
