SAIL-VSBD-180-3.0U(0.5)
SAIL-VSBD-180-3.0U(0.5)
Pole scheme
SAIL-VSBD-180-3.0U(0.5)
Pole scheme
SAIL-VSBD-180-3.0U(0.5)
Wiring diagram

SAIL-VSBD-180-3.0U(0.5)

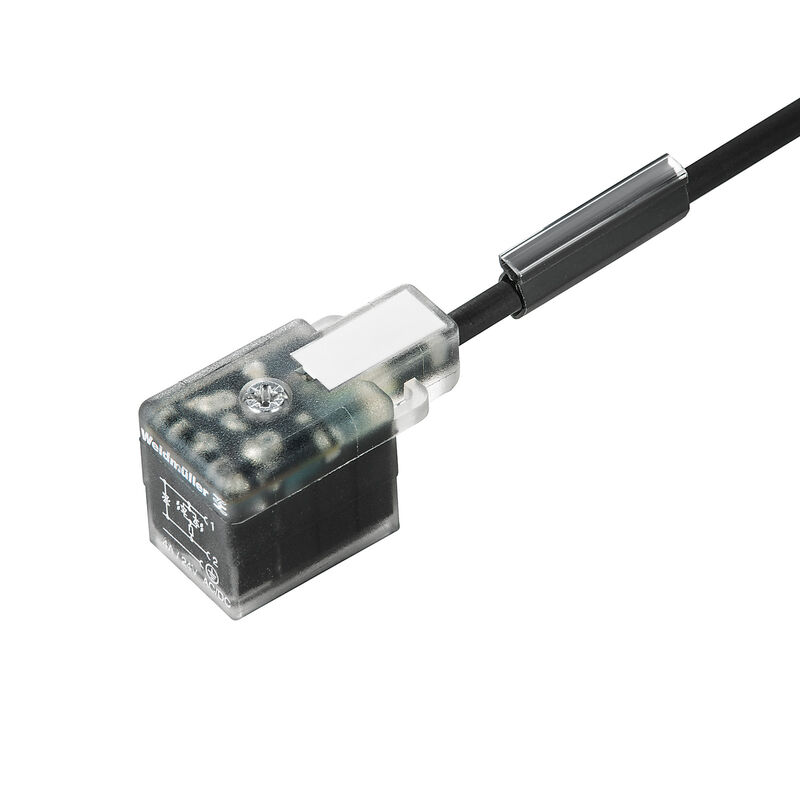

Valve cable (assembled), One end without connector - valve plug, DIN design B (10 mm), Cable length: 3 m, PUR, black

Produkt ID 1845160300
Download datablad Engineering-support
Anvendte produkter 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance 케이블의 기술 사양 Általános műszaki adatok Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), One end without connector - valve plug, DIN design B (10 mm), Cable length: 3 m, PUR, black
Best.-Nr.
1845160300
Típus
SAIL-VSBD-180-3.0U(0.5)
GTIN (EAN)
4032248358564
Qty.
1 Styk

Dimensions and weights

Net weight
99,44 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
4060c755-8d0b-4d43-bdb3-4ffabe9d7497

케이블의 기술 사양

Außendurchmesser
4.6 mm ± 0.2 mm
Cable length
3 m
Core cross-section
0,5 mm²
Halogen
Nej
Počet pólů
3
Sheath material
PUR
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C

Általános műszaki adatok

All valve plugs are fitted with protective circuits
억제 다이오드
Coding
DIN design B (10 mm)
Connection thread
Miscellaneous
Contact material
CuZn
Contact surface
cynowana
LED
Ja
Nominal current
4 A
Nominal voltage
24 V
Plage de températures du coffret
-25…+80 °C
Protection degree
IP67
when screwed in
Version
One end without connector - valve plug

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
